ENCODER REPLACING
REMOVAL • INSTALLATION
Dismantling procedure
1. Fulfill all the lifting motor removal procedure
2. Cut the clamps that fix togheter the temperature sensor cables and the encoder [Point 1]
3. Press untill extract from their site the rubber seals that protect the motor power cables [Point 2]
4. Unscrew the nuts that fix the motor power cables and remove the same from the power supply bolts,
noting the position of the 3 cables U, V and W
5. Unscrew and remove the 4 M5 screws and remove the metallic plate [Point 3]
6. Note the position of the cover on the stator [Point 4]
7. Unscrew and remove the 4 M8 screws [Point 5]
8. Remove the cover [Point 6]
9. Extract the encoder using the special extractor [Point 7]
Assembly procedure
During the installation procedure pay attention to do not damage the encoder and the relevant wiring
harness:

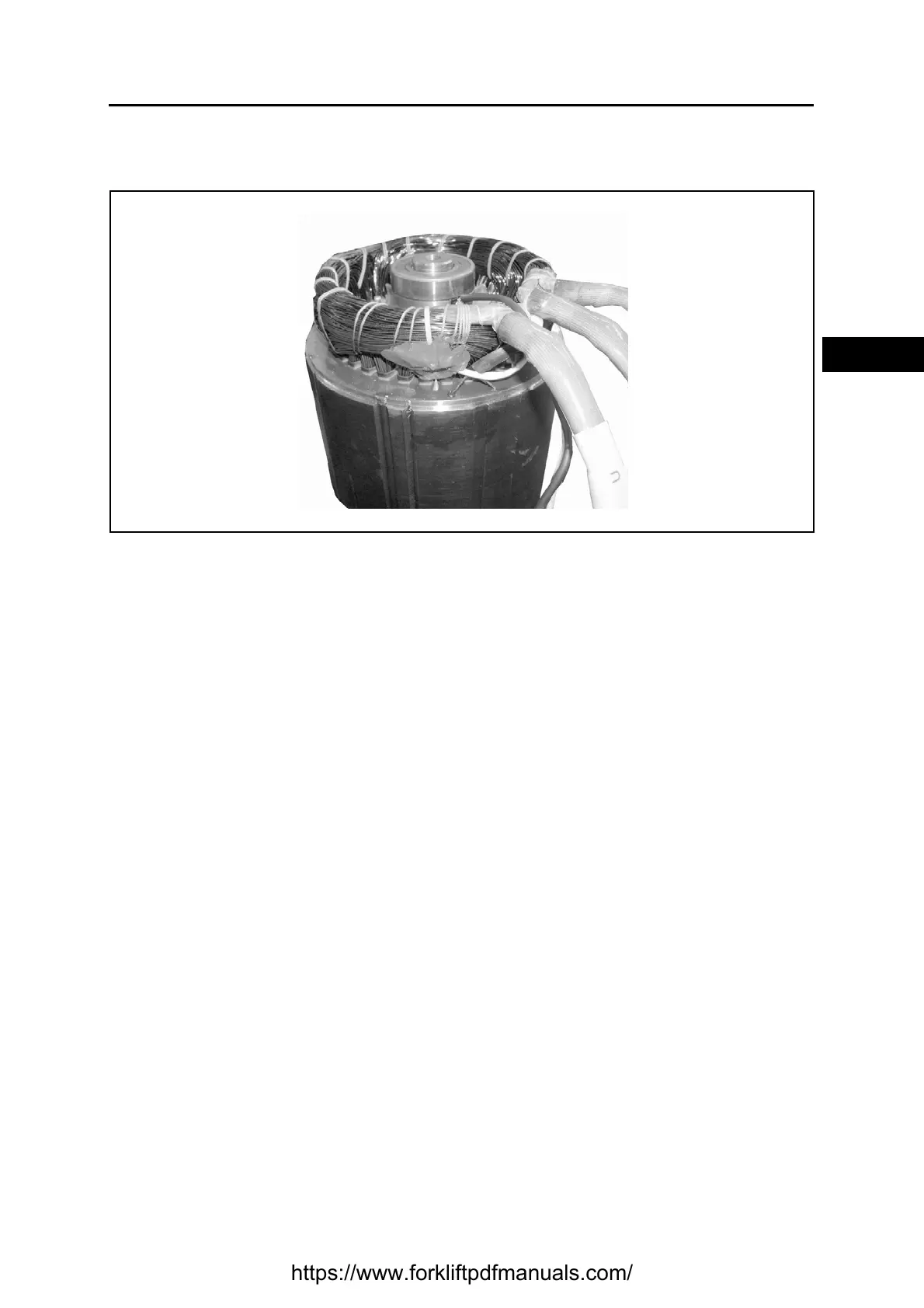

1. Insert the encoder on the motor axle [Point 8]
2. Insert the cover on the motor paying attention that the signs (removal procedure section 6) match;
pay attention to do not press the temperature sensor cables and the encoder [Point 9]
3. Insert the rubber seals that protect the power cables in their site [Point 10]
4. Fix the cover at the motor screwing the 4 M8 screws [Point 11]
5. Fix the metallic plate screwing the 4 M5 screws [Point 12]
6. Reinsert the motor power cables U, V and W in the corresponding power supply bolts, as noted
during the removal procedure, and screw the nuts that fix the power cables
7. Fix togheter with clamps the cables of the temperature sensor and the encoder [Point 13]
8. Fulfill all the lifting motor installation procedure
