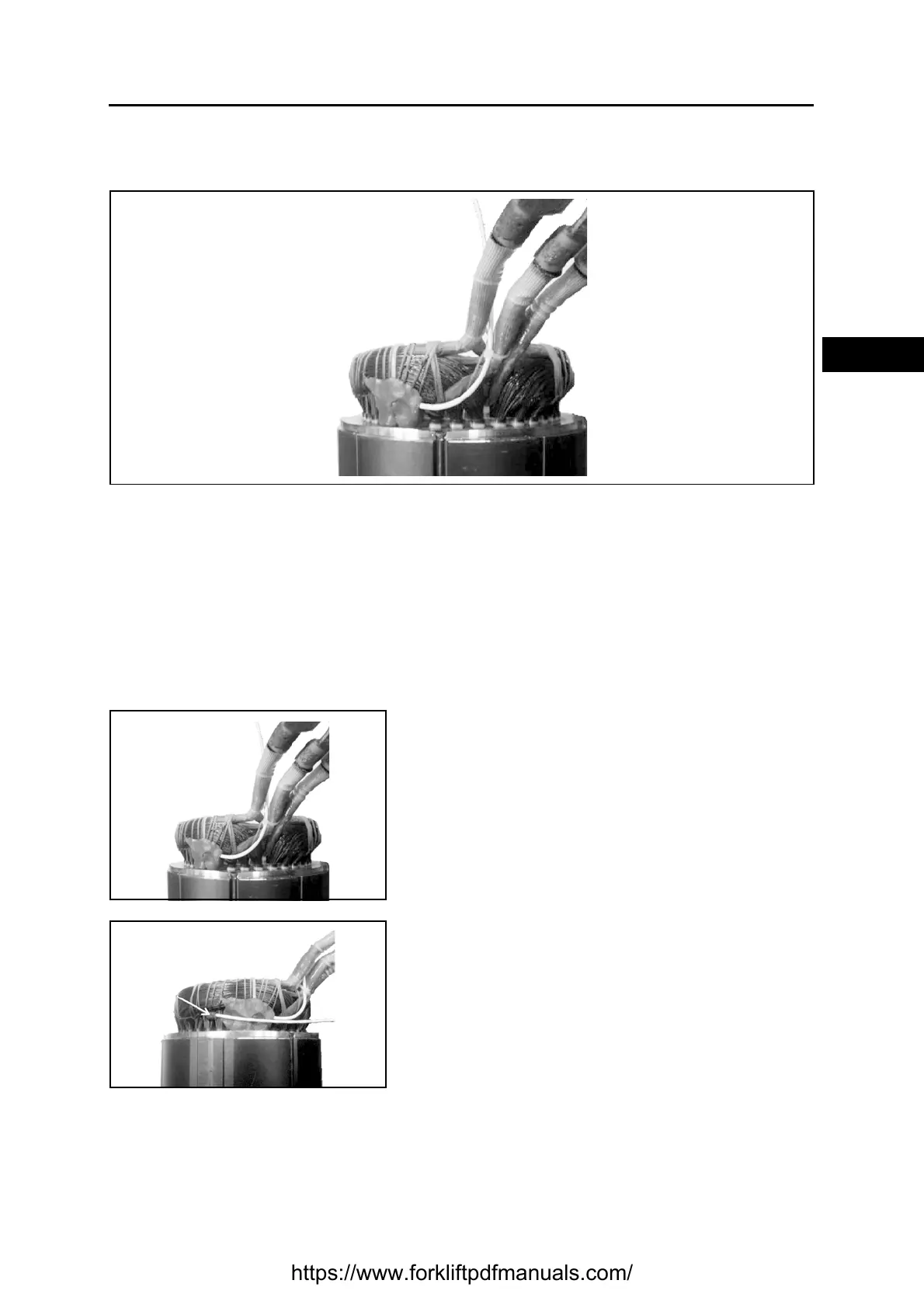

TRACTION TEMPERATURE SENSOR REPLACING
REMOVAL • INSTALLATION
Removal procedure
1. Fulfil all the encoder removal procedure
2. Cut the sensor wiring harness where is the fixing point of the same sensor with the stator winding
[Point 1]
3. Insert the new sensor at contact of the stator winding, and fix it using the adhesive silicone paste for
high temperature [Point 2]
Installation procedure
Fulfil all the traction encoder installation procedure
Point Operation
[Point 1]
Disassembly:
Cut the sensor wiring harness where is the fixing point
of the same sensor with the stator winding
[Point 2]
Disassembly:
Insert the new sensor at contact of the stator winding
and fix it using the adhesive silicone paste for high
temperature (see Service Tools List)
The drying time is ~ 2 hours
