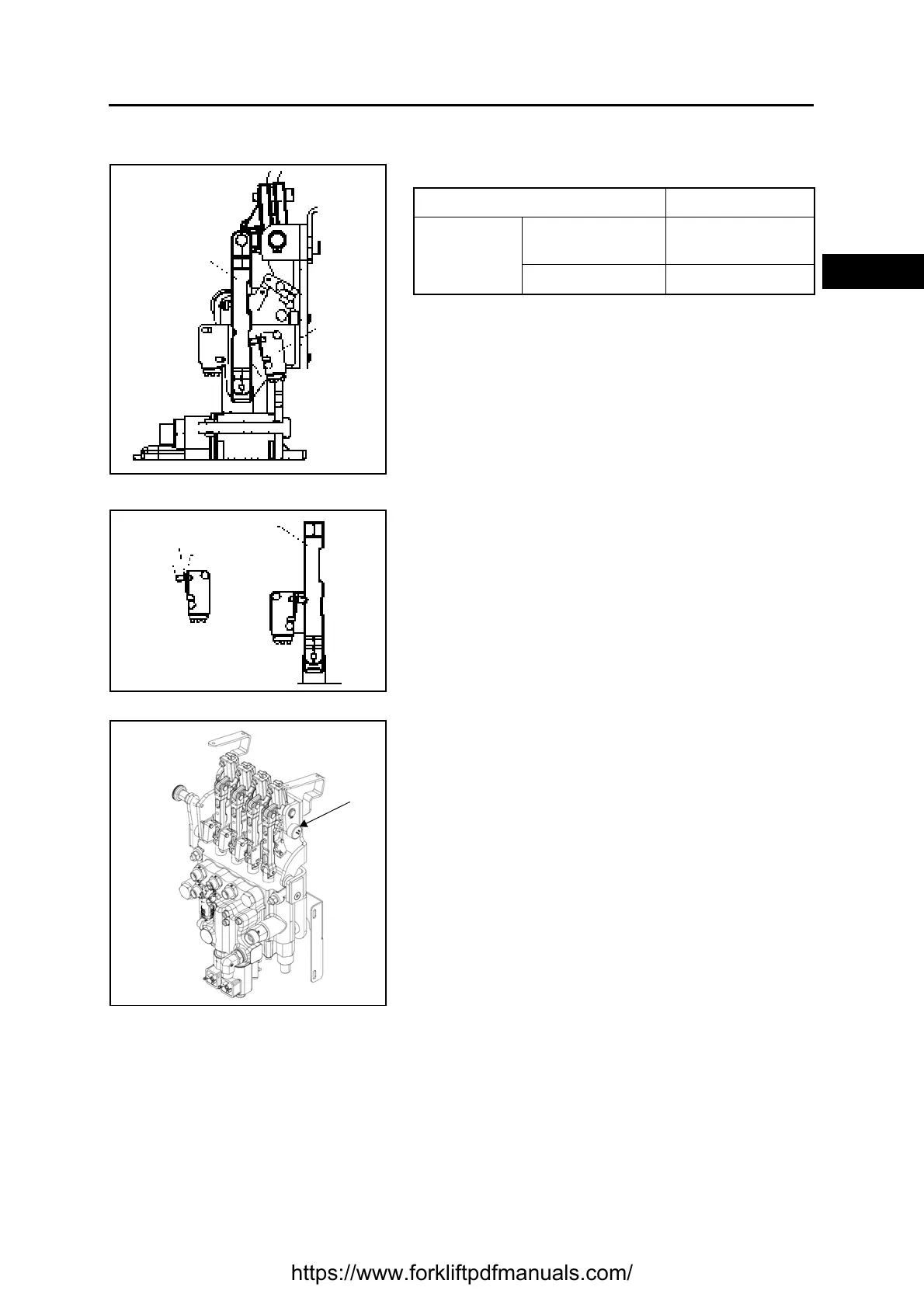

LIFTING POTENTIOMETER ADJUSTMENT
1. Check the ON/OFF condition of the switch
Microswitch adjustment:
After the installation perform the following
adjustments:
2. Keep the microswitch in rest position as shown in the
drawing according to the following points:
• The castor of the microswitch has to be in contact with
the surface of the command rod
• The microswitch lever has to be in contact with the push
button of the microswitch, without activating it
Tighten the microswitch in order to have the possibility to
move it on the button hole of the support.
3. Adjust the microswitch position in order to activate it to
the minimum stroke of the microswitch lever and by
releasing the latter the microswitch has to return in rest
position. The activation of the microswitch could be
detected:
• by eyes (by checking the angular stroke on the
microswitch lever)
• by ears (by listening to the closing of the microswitch
contacts)
• by multimeter (by checking the microswitch output
signals)
4. Tighten the microswitch screws with a tightening
torque of 0.39--0.59 Nm
Adjustment (lifting potentiometer P):
after installation, adjust the lifting potentiometer
• assemble the potentiometer on the contol valve;
• connect the analog multimeter, set to at least 10 kOhm,
to the potentiometer connector pins in the following way:
the red terminal (+) to pin 2, the black terminal (-) to pin 3
• move the lifting lever until the lifting microswitch is
released; the value you must read on the multimeter is 5
kOhm
• After the installation carry out the lifting potentiometer
acquisition (see chapter 3: Display)
CONTROL ROD
MICROSWITC
Measurement terminals Status
Standard:
Neutral position of
the lever
∞ Ω
Lever pulled Continuity
CONTROL ROD
LEVER
BUTTON
CASTOR
P
