ADJUSTING THE GEL BATTERY INDICATOR
If the truck is fitted with a GEL battery, set the parameter BDI GEL = ON
If this is not adjusted, it will not be possible to have a correct reading of the battery charge,
risking serious damage to the battery itself.
By setting the parameter BDI GEL to ON the traction logic unit will load a different discharge curve.
The parameters BDI ADJ MAX and BDI ADJ MIN maintain their function but change their value:
BDI RESET
This parameter determines the minimum recharge the battery has to receive for the partial or total reset
of the indicator.
BDI ADJ MIN
This parameter determines the voltage below which the battery indicator signals 0% residual charge
BDI ADJ MAX
This parameter determines the voltage above which the battery indicator signals 100% charge
ADJUSTMENT 3
This parameter determines the reset curve
Periodically check the voltage of the single battery elements at the end of discharge.
The voltage must not be lower than 1.83 V per element laden and 1.98 V unladen (corresponding
to a total charge of 21.96V laden and 23.76V unladen) at the end of discharge (corresponding to
0% of the battery indicator on the display).
Otherwise increase the value of the parameter BDI ADJ MIN until it reaches the allowed limit
threshold of 21.96 V laden and 23.76V unladen.
Parameter Min value Max value Step Standard Notes
BDI RESET 0% 100% 5% 30%
Reducing the value we reduce the
quantity of partial charge
needed to reset the indicator
Parameter Min value Max value Step Standard Notes
BDI ADJ MIN - 12,80% + 12,70% 0,10% - 4,00% 0,00% = 21,500 V
Parameter Min value Max value Step Standard Notes
BDI ADJ MAX - 12,80% + 12,70% 0,10% - 3,00% 0,00% = 25,940 V
Parameter Min value Max value Step Standard Notes
ADJUSTMENT 3 0,00% + 12,70% 0,10% + 3,00% 0,00% = 0,00 V

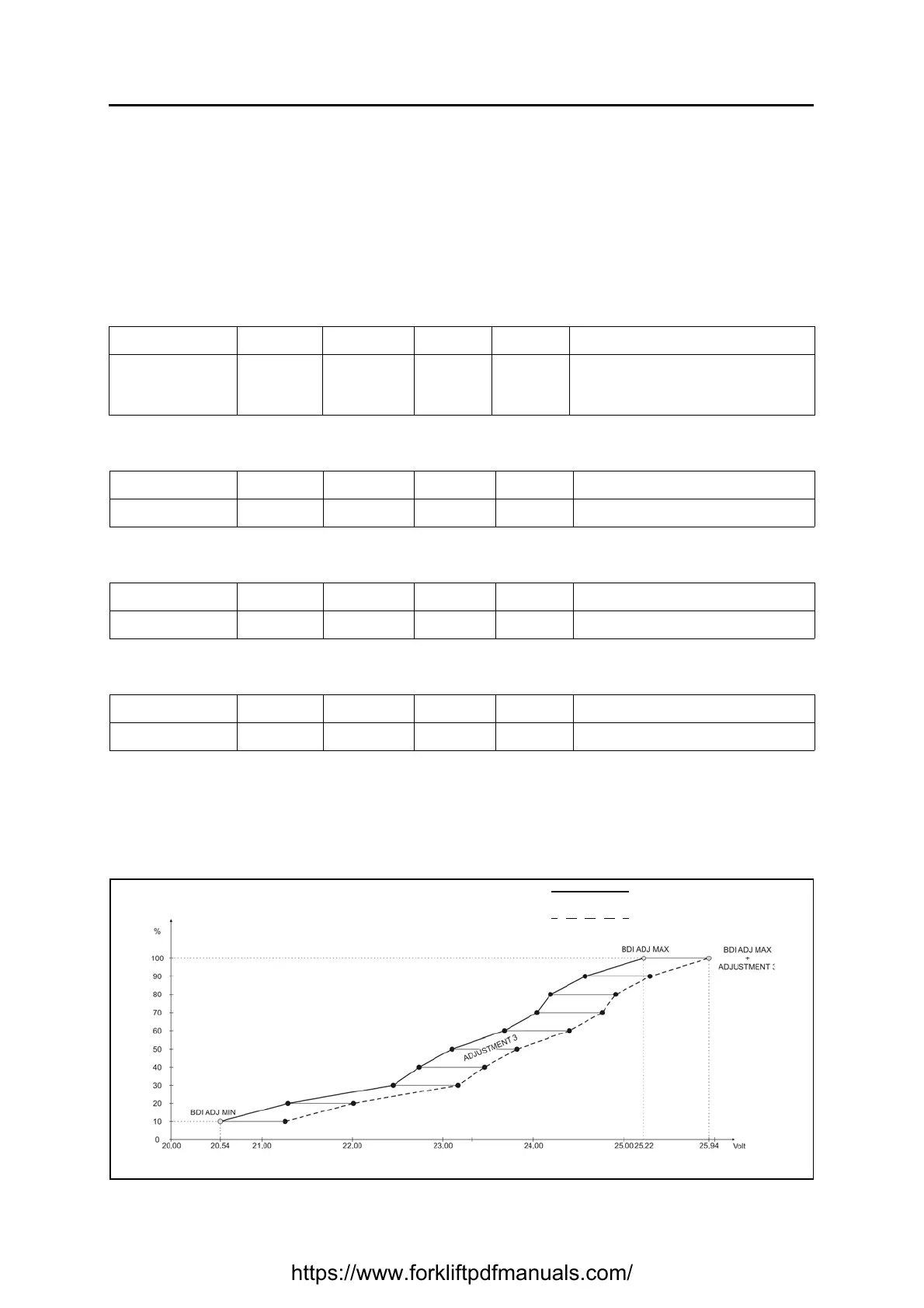

BATTERY INDICATOR
BATTERY VOLTAGE
DISCHARGE CURVE
RESET CURVE
