CESAB B 200 User Manual

8-4
BRAKE GROUP
DISASSEMBLY • REASSEMBLY

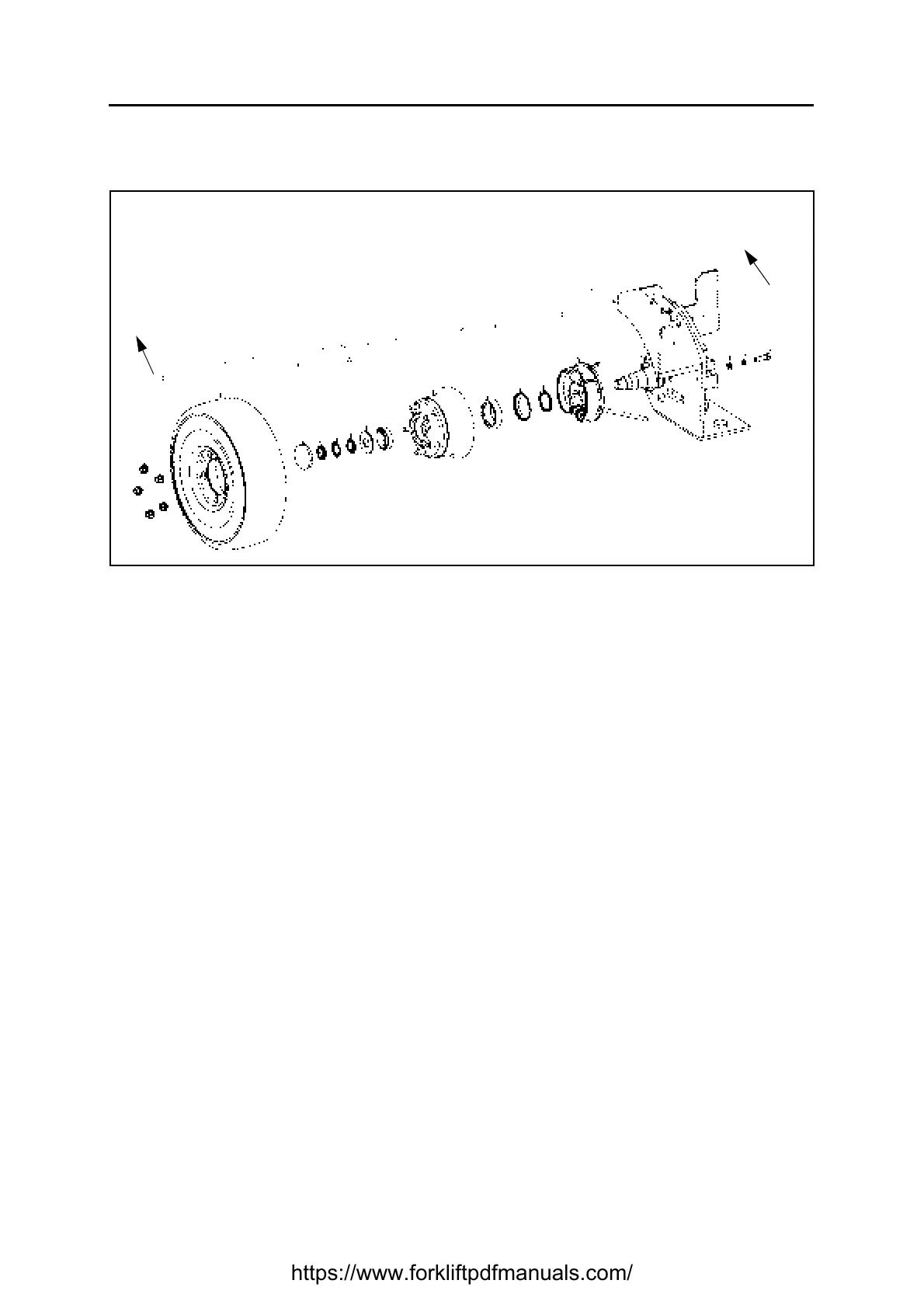

Disassembly Procedure
1. Disconnect the battery plug
2. Jack up the vehicle and remove the front wheels (item 14,3)
3. Remove the hub wheel cover (item 10) [Point 1]
4. Remove the 2 bushings and the safety washer (item 16B, 17, 16A) [Point 2]
5. Remove the large washer (item 15)
6. Remove the small conical bearing (item 7)
7. Remove the drum (item 2)
8. Remove the large conical bearing (item 6) [Point 3]
9. Remove the Nilos-ring (item 9) [Point 4]
10. Remove the spacer (item 8)
11. Remove the hand brake cable
12. Drain out the brake oil
13. Disconnect the hose from the brake cylinder
14. Remove the 6 bolts and washers of the brake plate from the internal side of the frame (item 11, 12,
13)
15. Remove the brake group (item 4)
Reassembly Procedure
The reassembly procedure is the reverse of the disassembly procedure.
T = 83 Nm (± 5%)
T = 140 Nm (± 5%)
