8-6

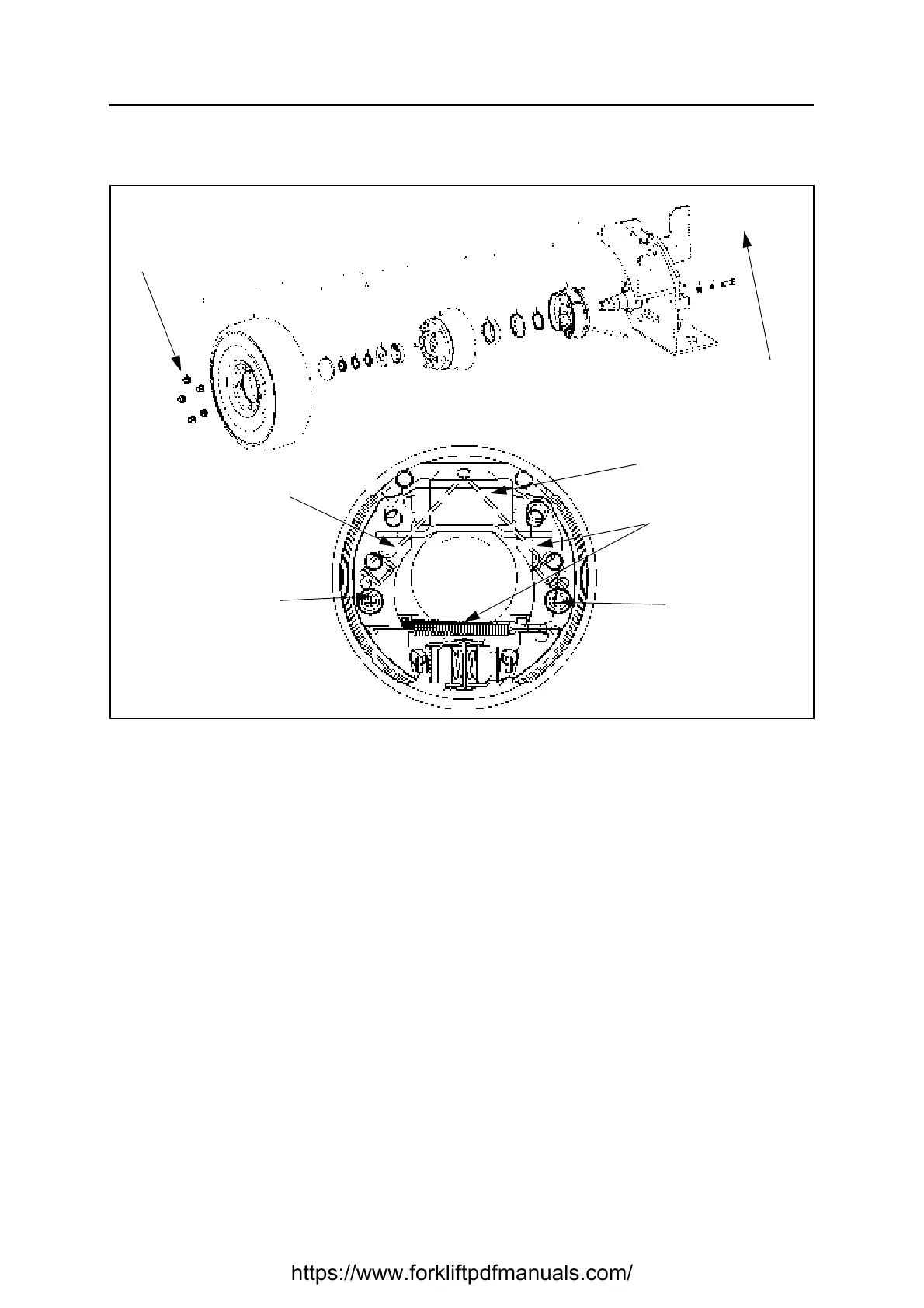

BRAKE SHOES AND BRAKE CYLINDER
DISASSEMBLY • REASSEMBLY
Disassembly Procedure
1. Disconnect the battery plug
2. Jack up the vehicle and remove the front wheels (item 14,3)
3. Remove the hub wheel cover (item 10)
4. Remove the 2 bearing nuts and the safety washer (item 16B, 17, 16A)
5. Remove the big washer (item 15)
6. Remove the small conical bearing (item 7)
7. Remove the drum (item 2) [Point 1]
8. Remove the large conical bearing (item 6)
9. Remove the Nilos (item 9)
10. Remove the spacer (item 8)
11. Remove the shoe return springs (item 18)
12. Remove the shoe springs adjuster (item 19)
13. Remove the hand brake cable
14. Remove the brake shoes [Point 2]
15. Drain out the brake oil
16. Remove the 6 bolts and washers of the brake plate from the internal side of the frame (item 11, 12,
13)
17. Remove the brake pipe [Point 3]
18. Remove the brake group (item 4)
19. Remove the brake cylinder (item 20)
Reassembly Procedure
The reassembly procedure is the reverse of the disassembly procedure.
83 Nm (± 5%)
140 Nm (± 5%)
20
19
18
19
18
