1-2 Overview
5150 Service Aggregation Switch Hardware Installation and Start-up Manual
009-3222-001 Standard Revision H
Copyright
©
2012-2015 Ciena
®
Corporation July 2015

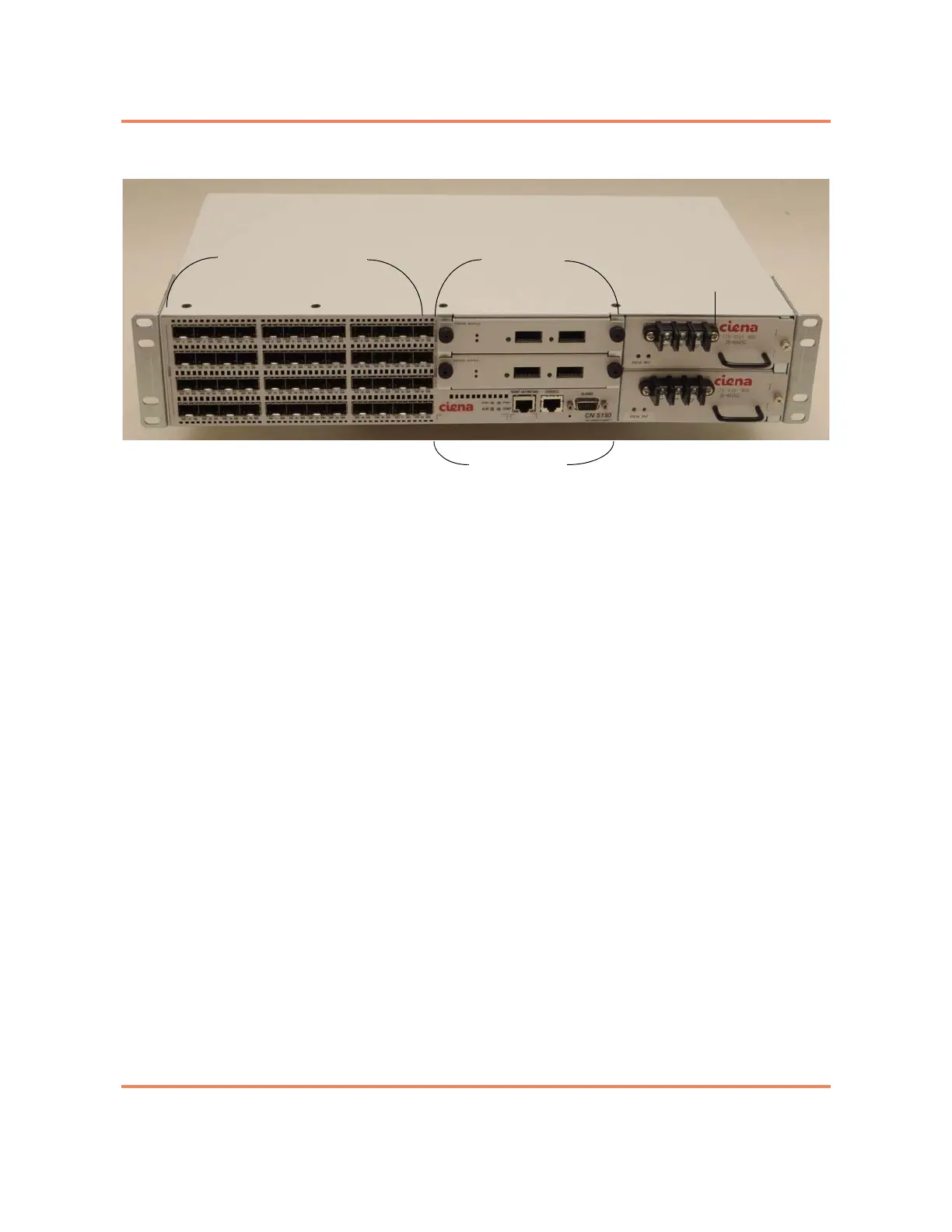

Figure 1-1
Front of the 5150
The SAS units are designed to work with Ciena products to deliver complete,
integrated service offerings from a single provider or multiple providers. The
SAS devices incorporate advanced QoS capabilities, flexibility through
pluggable optics, superior multicast control, manageability, and a small form
factor chassis to present the industry’s leading fiber-to-the-building solution.
The 5150 has the following physical characteristics:
• 48 x 100/1000 Mbps SFP ports — The SFPs support both 100 Mbps and
1000 Mbps speeds. Ports 1 to 36 are UNI only. Ports 37 to 48 (bottom row)
are NNI and UNI capable. Copper or optical SFPs can be installed in any
of these 48 ports.
• 2 x 10 GBE (total of 4 GBE ports) XFP Option Modules — these optional
modules allow you to add 10 GbE ports to your system. The 10 Gigabit
ports can be used as either NNI or UNI ports. Their installation is optional.
When these modules are not installed, a filler plate is required over the
empty slot.
• 1 x BITS port (optional) — this port can be used to provide BITS-IN or
BITS-OUT. The port is available on the 10 GbE
Standard with BITS option
module only. A single module of this type can be installed in the
5150.
Note: The BITS interface can be configured to be either BITS-IN or BITS-
OUT. It cannot support both BITS-IN and BITS-OUT simultaneously.
• 1 x Serial RJ-45 Console port — The Console port is used for initial
configuration and management.
• 1 x 10/100/1000 RJ-45 Management port — This port is provided for out-
of-band management and uses an RJ-45 connector.
48 x 1 Gigabit Ports
Power Modules
10 Gigabit
Modules
Management
Interfaces
To Next Page
