100/1000 Mbps Port LEDs
Each of the 100/1000 Mbps ports has two LEDs associated with it. These are
located at the bottom of the SFP connectors for the port and indicate port
status. See Figure 5-5.

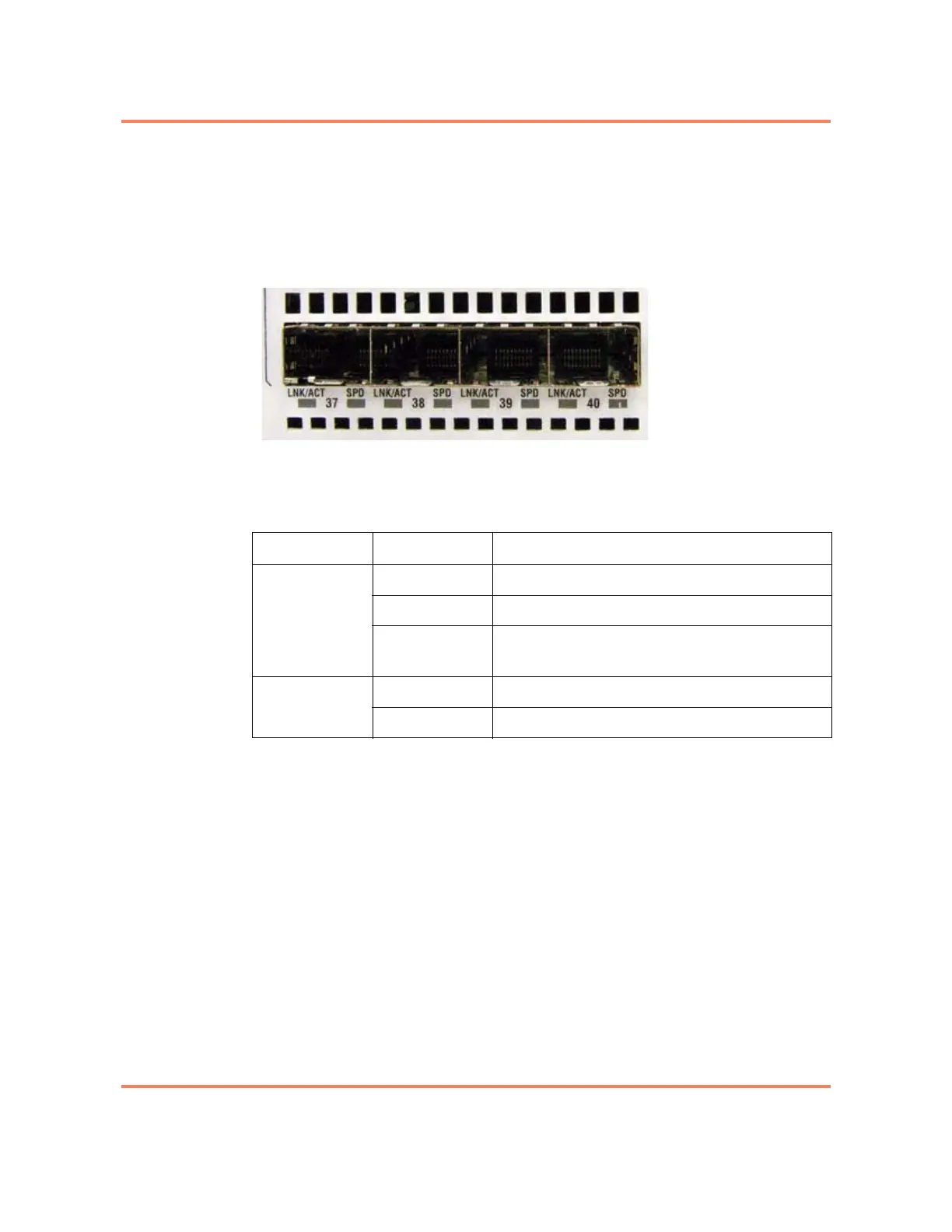

Figure 5-5
100/1000 Mbps Port LEDs
Table 5-5
100/1000 Mbps Port LED
LED Indication Description
LNK / ACT Off The port is not operational.
Solid Green Indicates a valid network connection.
Blinking Green The port is currently receiving or transmitting
Ethernet packets.
SPD Off Port speed is 100 Mbps.
Solid Yellow Port speed is 1000 Mbps.
