2-11
Cisco Aironet 1130AG Series Access Point Hardware Installation Guide
OL-8369-05
Chapter 2 Installing the Access Point
Opening the Access Point Cover
Opening the Access Point Cover
The top cover provides access to the cable bay area containing the power connector, Ethernet port,
console serial port, the mode button, and the Ethernet and Radio LEDs.
Caution Do not attempt to pry open or lift the top cover of the access point because you could damage the cover.
Carefully read the instructions in this section before attempting to open the access point cover.
The cover is designed to partially open by sliding back from a secured position. Follow these steps to
open the top cover:
Step 1 Find the cable access notch on the end of the unit (see Figure 2-5).

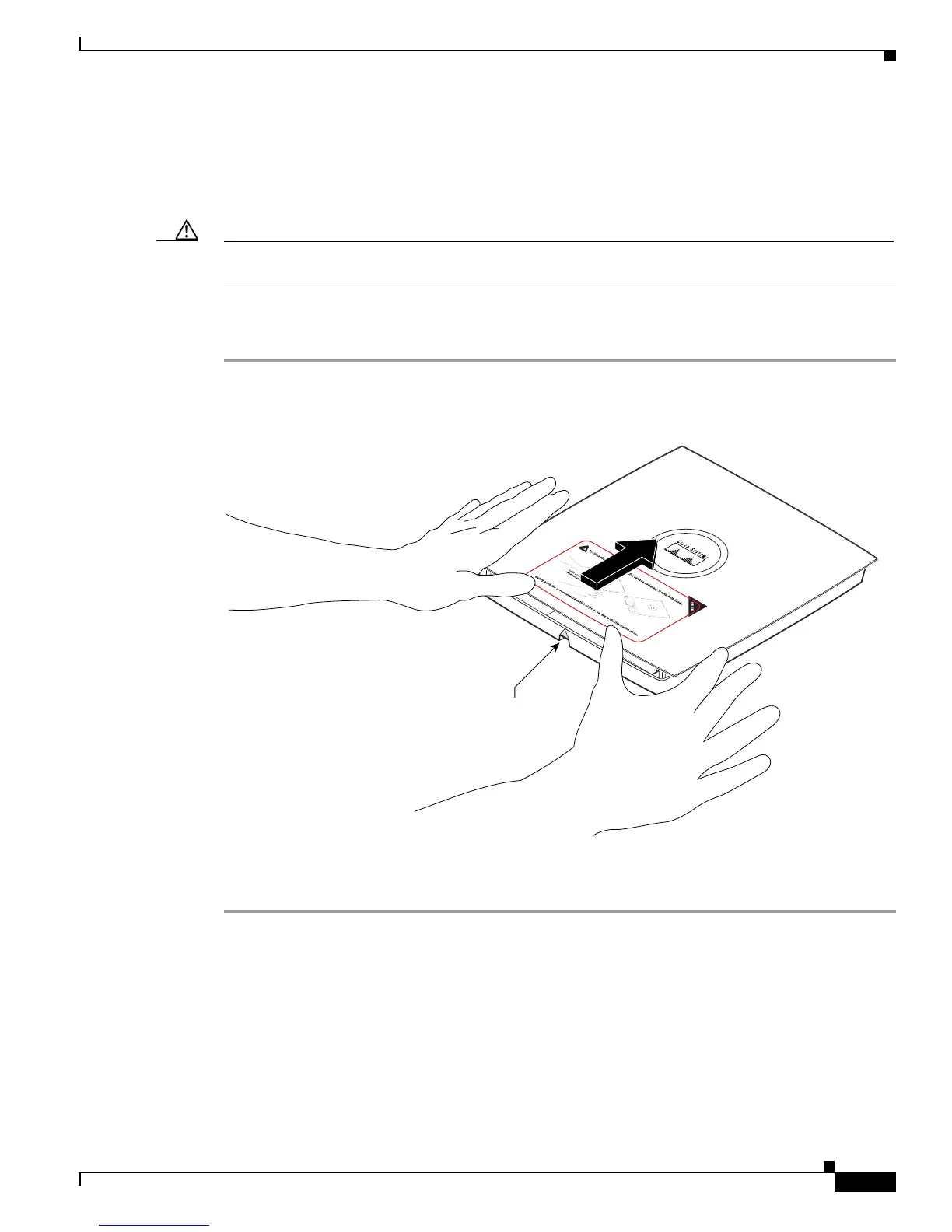

Figure 2-5 Opening the Access Point Cover
Step 2
Place your thumbs on the edge of top cover and gently push towards the Status LED.
Step 3 Continue to slowly slide the cover back until you reach the cover stop.
121061
Cable access notch
and arrow
