Hardware Installation Guide for Cisco 4000 Series Integrated Services Routers
OL-32185-02
Chapter 5 Install and Upgrade Internal Modules and FRUs
Locate Internal and External Slots
Locate Internal and External Slots for Modules on Cisco 4351 ISR

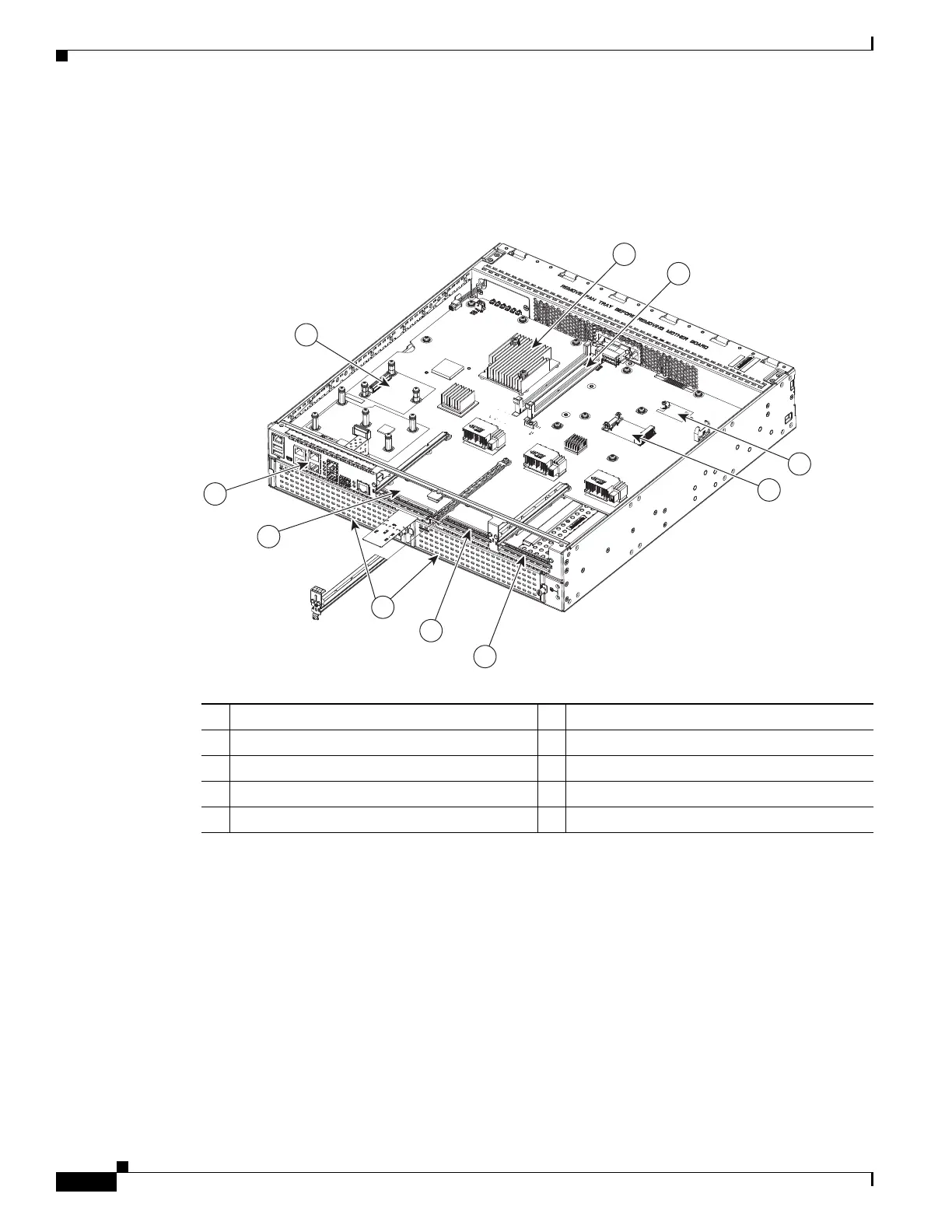

Figure 5-5 shows an internal view of Cisco 4351 ISR chassis indicating the location of internal modules.
Figure 5-5 Module Locations in Cisco 4351 ISR chassis
391829
7
5
8
6
9
10
1
2
3
4
1 CPU 2 DIMMs
3 Flash memory card connector 4 SSD mSATA connector
5 NIM slot 3 6 NIM slot 2
7 SM-X slots 8 NIM slot 1
9 RJ-45 GE ports 10 ISC slot
