Cisco Unified IP Phone 7965G and 7945G Administration Guide for Cisco Unified Communications Manager 6.0
OL-12650-01
Chapter 1 An Overview of the Cisco Unified IP Phone
What Networking Protocols Are Used?
What Networking Protocols Are Used?
Cisco Unified IP Phones support several industry-standard and Cisco networking protocols required for
voice communication.
Table 1-1 provides an overview of the networking protocols that the Cisco
Unified IP Phone 7965G and 7945G supports.
13 4-way navigation
pad and Select
button (center)
Allows you to scroll through menus and highlight items. Use the Select
button to select an item that is highlighted on the screen.
Navigation button
• Scroll up and down to see menus and highlight items.
• Scroll right and left to scroll horizontally in multi-column displays.
Select button—scroll to highlight a line using the Navigation button, and
then:
• Press to open a menu.
• Press to play a ringer item.
• Press to access other features as described on the screen.
Note The Select button does not take action on all menu items.
14 Keypad Allows you to dial phone numbers, enter letters, and choose menu items.
15 Softkey buttons Each activates a softkey option (displayed on your phone screen).
16 Handset light strip Indicates an incoming call or new voice message.
17 Phone screen Shows phone features.

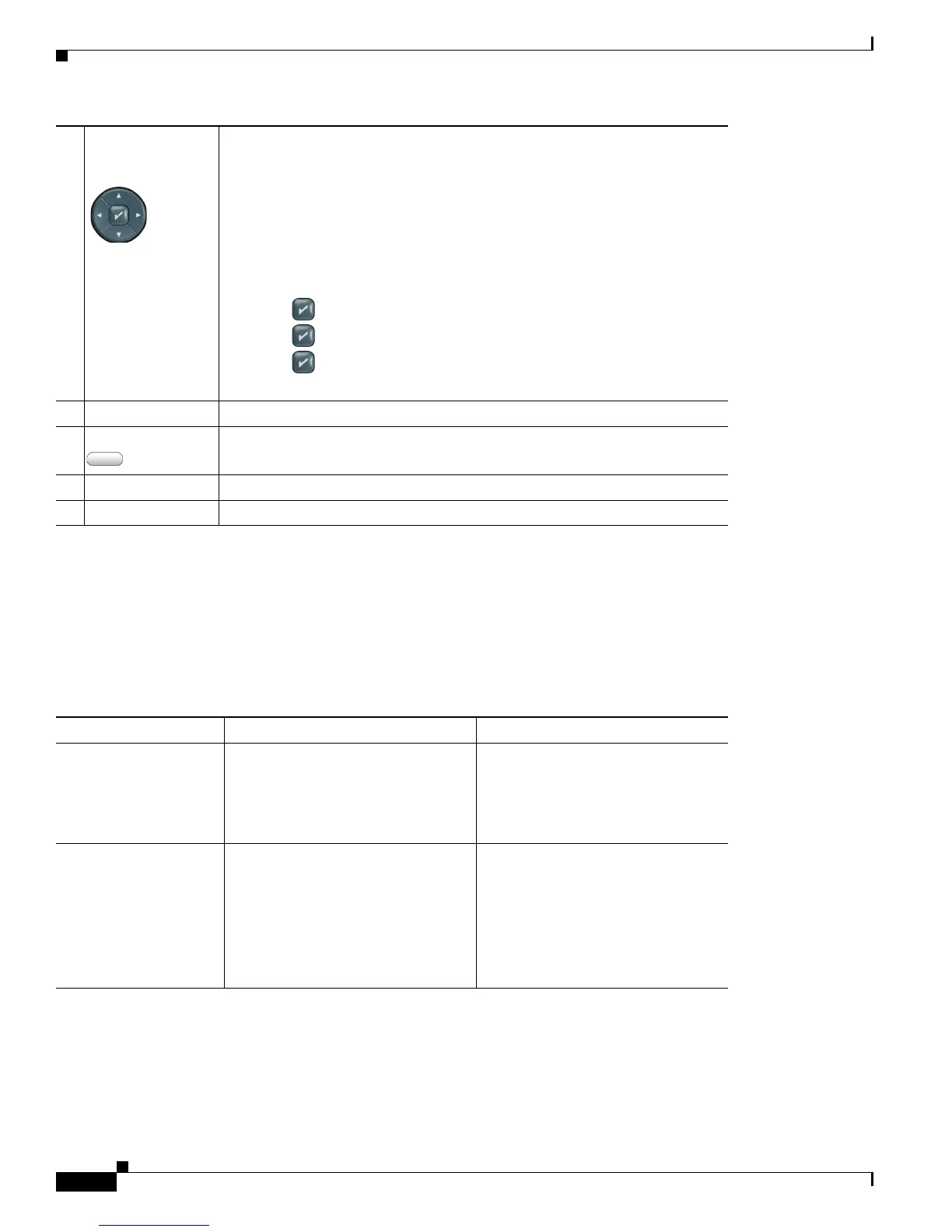

Table 1-1 Supported Networking Protocols on the Cisco Unified IP Phone
Networking Protocol Purpose Usage Notes
Bootstrap Protocol
(BootP)
BootP enables a network device such
as the Cisco Unified IP Phone to
discover certain startup information,
such as its IP address.
If you are using BootP to assign IP
addresses to the Cisco
Unified
IP Phone, the BOOTP Server
option shows “Yes” in the network
configuration settings on the phone.
Cisco Discovery
Protocol (CDP)
CDP is a device-discovery protocol
that runs on all Cisco-manufactured
equipment.
Using CDP, a device can advertise its
existence to other devices and receive
information about other devices in
the network.
The Cisco Unified IP Phone uses
CDP to communicate information
such as auxiliary VLAN ID, per port
power management details, and
Quality of Service (QoS) configuration
information with the Cisco Catalyst
switch.
