Cisco C1101-4P Hardware Installation Guide

Grounding12Kensington lock slot11
LED Indicators

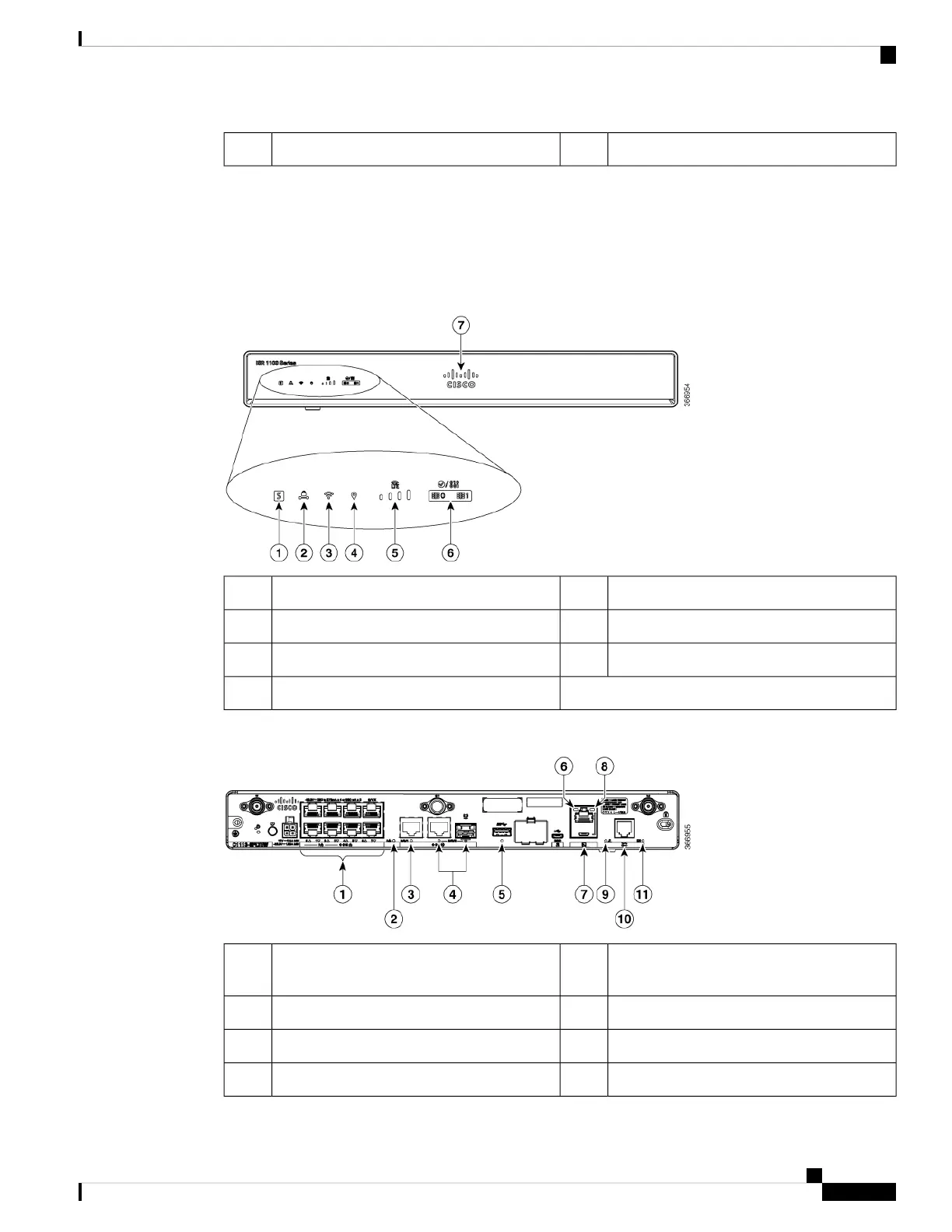

The following figures and table summarizes the LED indicators that are located in the bezel or chassis of the
C111x series.
Figure 22: LED Indicators - Bezel Side
VPN2Status1
GPS4WLAN3
LTE data/SIM6LTE RSSI/mode5
Cisco logo7
Figure 23: LED Indicators - I/O Side
PoE LED2GE WAN ports: 0-7 (0, 2, 4, 6 at the top and
1, 3, 5, 7 at the bottom)
1
GE0 LED4GE1 LED3
RJ-45 console LED6USB LED5
Micro USB console LED8USB console7
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
13
Overview of Cisco 1000 Series Integrated Services Routers
LED Indicators

Cisco C1101-4P Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	-
WLAN data transfer rate (max)	- Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	AES, WPA2
Product type	Tabletop router
Product color	Gray
Country of origin	China
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	30 W
Internal memory	4000 MB
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4570 m
Storage temperature (T-T)	0 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Package depth	333.502 mm
Package width	254 mm
Package height	177.8 mm
Package weight	3083.9 g
