Cisco C1101-4P Hardware Installation Guide

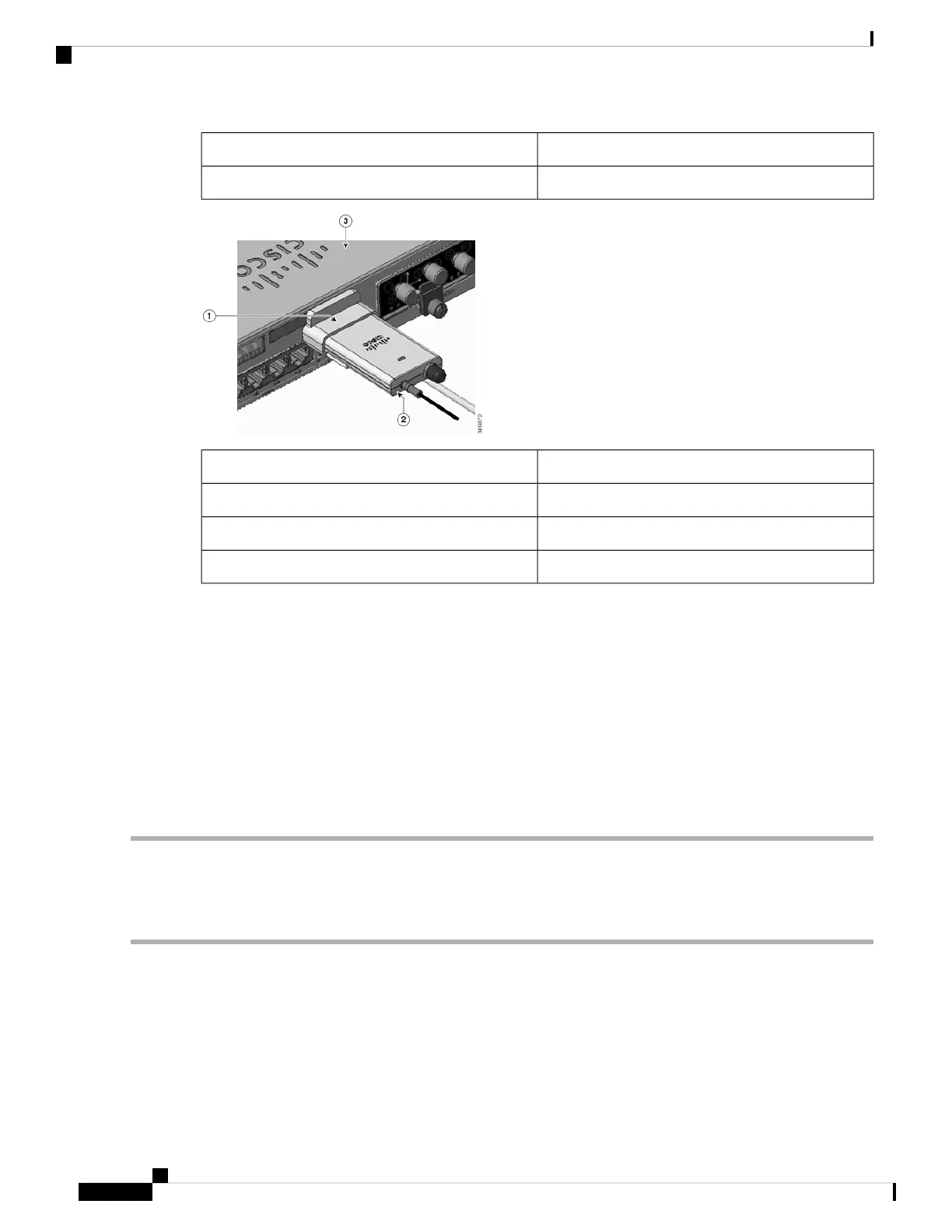

DescriptionNumber
Plug-in direction4
DescriptionNumber
Supporting ring1
Dongle holder with magnet2
Router-C1101-4PLTEPW3
Follow the same procedure to install the USB LTE dongle onto routers with a vertical USB slot.
Antenna Mounting Instructions
This section describes how to mount the antenna on the Cisco 1000 Series Integrated Services Router. The
information is contained in the following sections:
Rack Mount of the Antenna
To install the antenna on a rack, do these steps:
Option A - Rack Mount at a Different Height with the Platform
Step 1 Pick up the R-Brackets (700-121611-01)
Step 2 Place and fix the bracket at an appropriate location on the rack using two screws.
Step 3 Tighten the screw, the recommended torque is 10-12 in-lb.
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
76
Install and Upgrade Internal Modules and Field Replaceable Units
Antenna Mounting Instructions

Cisco C1101-4P Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	-
WLAN data transfer rate (max)	- Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	AES, WPA2
Product type	Tabletop router
Product color	Gray
Country of origin	China
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	30 W
Internal memory	4000 MB
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4570 m
Storage temperature (T-T)	0 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Package depth	333.502 mm
Package width	254 mm
Package height	177.8 mm
Package weight	3083.9 g
