Cisco C1101-4P Hardware Installation Guide

Step 3 Disconnect all port cables connected to the router. Ensure that you do not work on the router with cables still attached to
the router in the event of lightning or surges.
Step 4 Place the chassis on a flat surface.
Step 5 Remove the 14 cover screws on the two sides of the router cover. See figure.
Step 6 Slide the cover from bezel side to I/O side until it stops.
Step 7 Pull the cover vertically to disengage from the chassis.
Replace the Cover
To replace the cover, do these steps:
The covers are an integral part of the safety design of the product. Do not operate the unit without the covers
installed. Statement 1077.
Warning

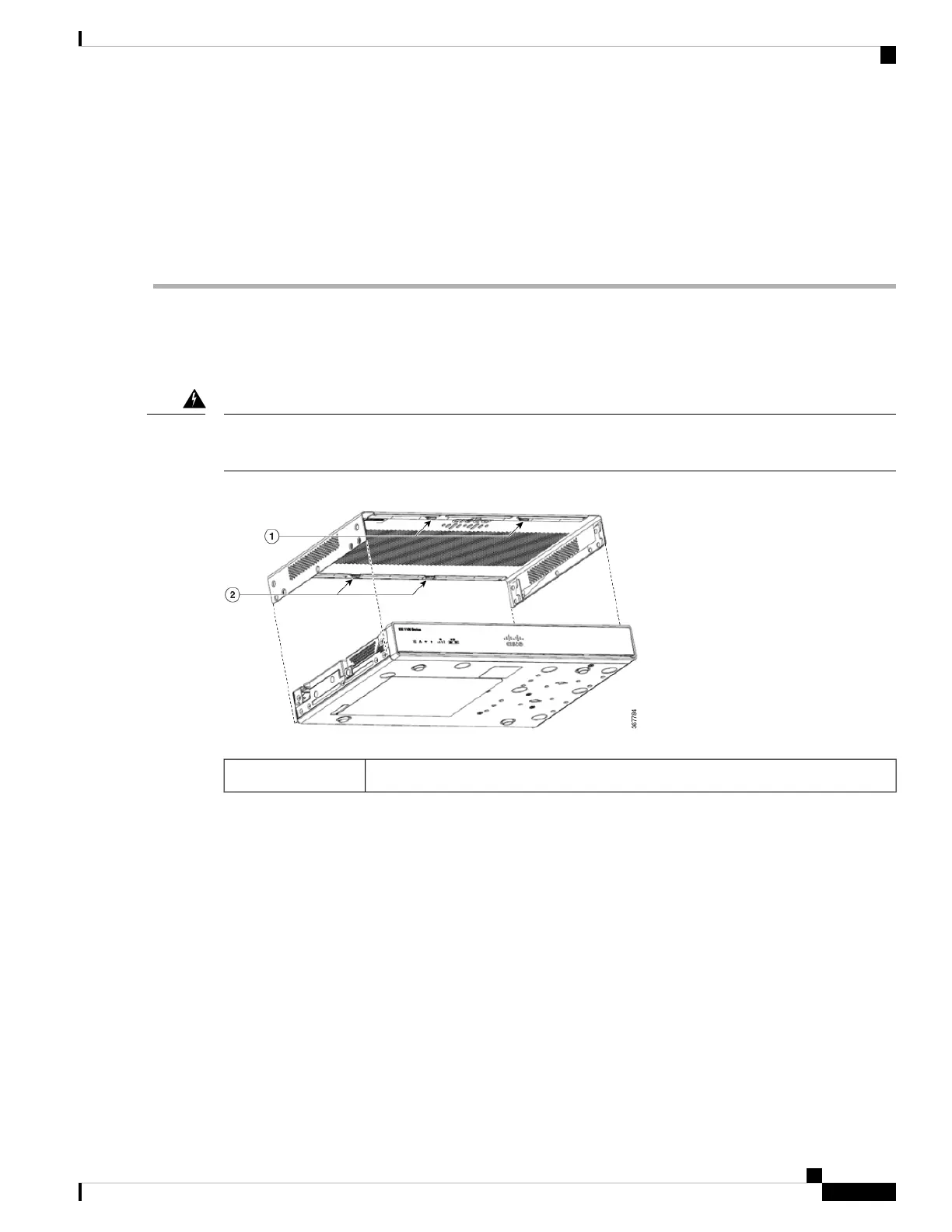

Replace the 14 screws on either side of the cover.1 and 2
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
59
Install and Upgrade Internal Modules and Field Replaceable Units
Replace the Cover

Cisco C1101-4P Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	-
WLAN data transfer rate (max)	- Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	AES, WPA2
Product type	Tabletop router
Product color	Gray
Country of origin	China
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	30 W
Internal memory	4000 MB
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4570 m
Storage temperature (T-T)	0 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Package depth	333.502 mm
Package width	254 mm
Package height	177.8 mm
Package weight	3083.9 g
