To attach the DIN Rail brackets to the router chassis, use the pan head machine screws and the plastic spacers provided
for each bracket.
Attach Din-Rail Brackets on C112x
This procedure describes how to attach the brackets on the router chassis:
Step 1 Remove the 3 bottom screws from the chassis.
Step 2 Place the din-rail tray assy on the bottom side of the chassis.
Step 3 Secure the original screw from bottom side of tray, leverage the existing chassis screws to secure the din rail mounting
bracket from the bottom of the chassis.
Step 4 Take the other two screws to secure the din-rail trail assy.
Example:

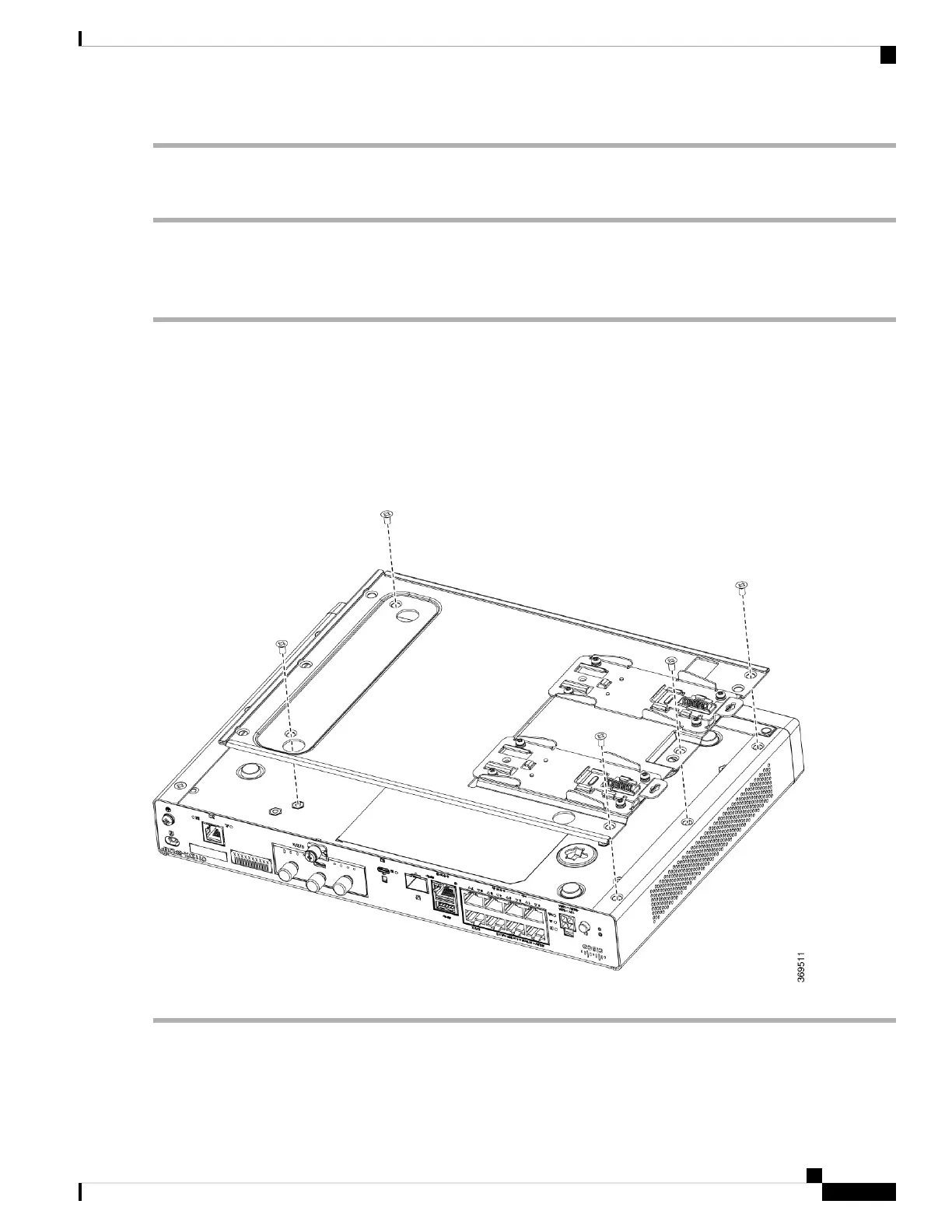

Figure 36: Attaching Din Rail Brackets for C1121-4Px, C1126-8PLTEP and C1128-8PLTEP
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
37
Install and Connect the Router
Attach Din-Rail Brackets on C112x

Cisco C1101-4P Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	-
WLAN data transfer rate (max)	- Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	AES, WPA2
Product type	Tabletop router
Product color	Gray
Country of origin	China
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	30 W
Internal memory	4000 MB
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4570 m
Storage temperature (T-T)	0 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Package depth	333.502 mm
Package width	254 mm
Package height	177.8 mm
Package weight	3083.9 g
