Cisco C1101-4P Hardware Installation Guide

Step 1 Read the Safety Warnings and disconnect the power supply before you perform any module replacement.
Step 2 Confirm the router is turned off and disconnected from the power supply.
Step 3 Disconnect all port cables connected to the router. Ensure that you do not work on the router with cables still attached to
the router in the event of lightning or surges.
Step 4 Place the chassis on a flat surface.

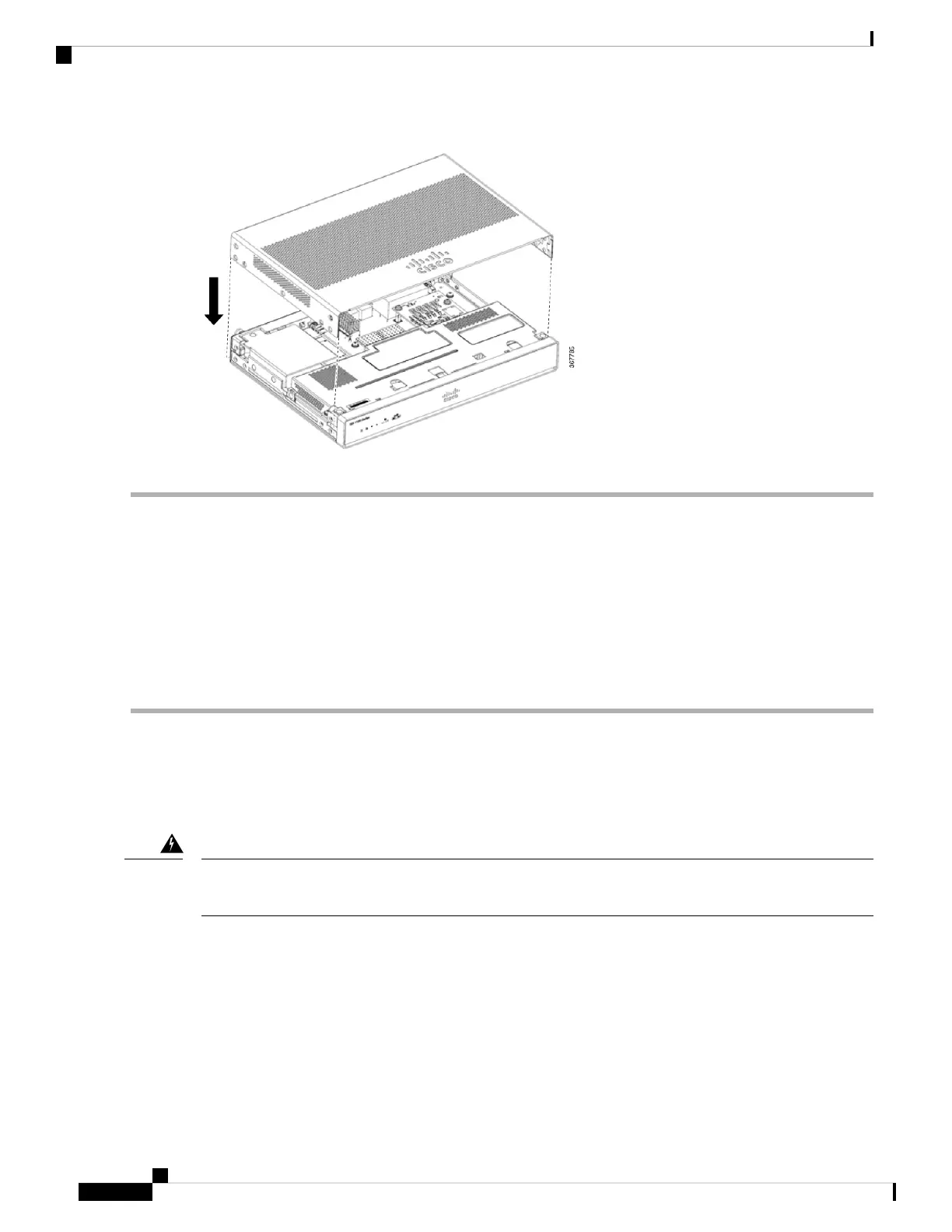

Step 5 Align hooks on the cover to slots on the chassis base and lower the cover onto chassis base.
Step 6 Slide the cover from the I/O side to the bezel side
Step 7 Install the fourteen screws on both sides of the chassis. Torque to 6-8 in-lbs.
External Modules
This section describes how to install external modules and FRUs in the Cisco 1000 Series Integrated Services
Routers. The information is contained in the following sections:
Only trained and qualified personnel should be allowed to install, replace or service this equipment. Statement
1030.
Warning
Locate External Slots for Modules
This section describes the locations of external modules on the router motherboard.
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
60
Install and Upgrade Internal Modules and Field Replaceable Units
External Modules

Cisco C1101-4P Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	-
WLAN data transfer rate (max)	- Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	AES, WPA2
Product type	Tabletop router
Product color	Gray
Country of origin	China
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	30 W
Internal memory	4000 MB
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4570 m
Storage temperature (T-T)	0 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Package depth	333.502 mm
Package width	254 mm
Package height	177.8 mm
Package weight	3083.9 g
