Cisco C1101-4P Hardware Installation Guide

Ground Lug2

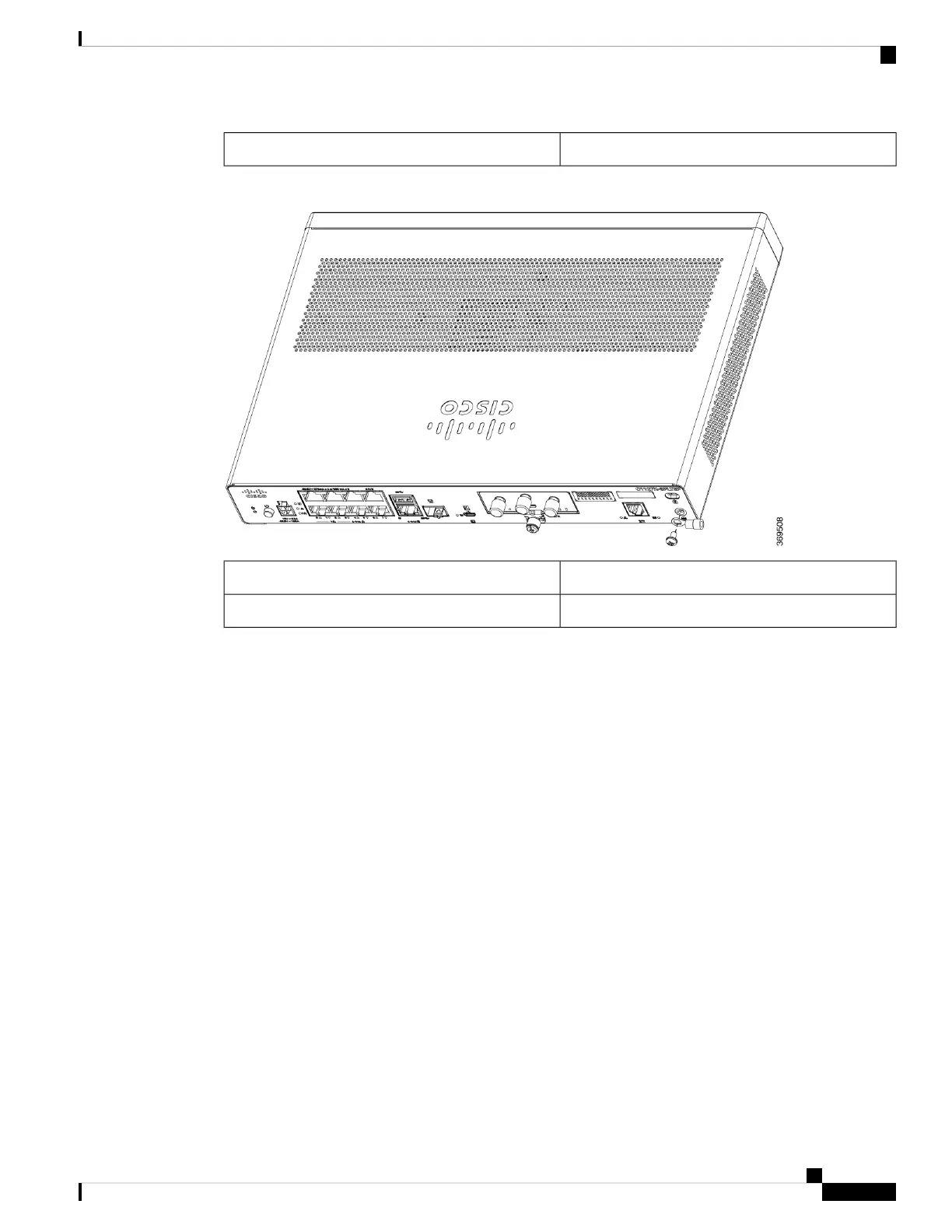

Figure 49: Chassis Ground Connection-Cisco 1121X-8PLTEP
Screw (UNC 6-32)1
Ground Lug2
Connect Power Cable
Power supply of the Cisco 1000 Series Intergrated Services Routers is an external AC to DC power adapter.
The external DC power connector plugs into the router's 4 points power connector.
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
49
Install and Connect the Router
Connect Power Cable

Cisco C1101-4P Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	-
WLAN data transfer rate (max)	- Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	AES, WPA2
Product type	Tabletop router
Product color	Gray
Country of origin	China
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	30 W
Internal memory	4000 MB
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4570 m
Storage temperature (T-T)	0 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Package depth	333.502 mm
Package width	254 mm
Package height	177.8 mm
Package weight	3083.9 g
