Table 10: Port Mappings for 5G-ANTM-0-4-B on P-5GS6-GL and P-LTEAP18-GL PIMs
P-5GS6-GLP-L TEAP18-GL5G-ANTM-O-4-B
ANT 0Main 0MAIN 0
(LTE1)
ANT 1Main 1MAIN 1
(LTE3)
ANT 2DIV 0DIV 0 (LTE2)
ANT 3DIV 1DIV 1 (LTE4)
GPSNo
connection
GNSS
The following link contains the antenna specifications and installation instructions for 5G NR
(5G-ANTM-O-4-B):
https://www.cisco.com/c/en/us/td/docs/routers/connectedgrid/antennas/installing-combined/
b-cisco-industrial-routers-and-industrial-wireless-access-points-antenna-guide/m-5g-antm-04b.html#Cisco_
Generic_Topic.dita_e780a6fe-fa46-4a00-bd9d-1c6a98b7bcb9
Install a Micro-SIM Card into a USB LTE Dongle
This section describes how to insert a micro-SIM card into a USB LTE dongle in a C1101-4P router.

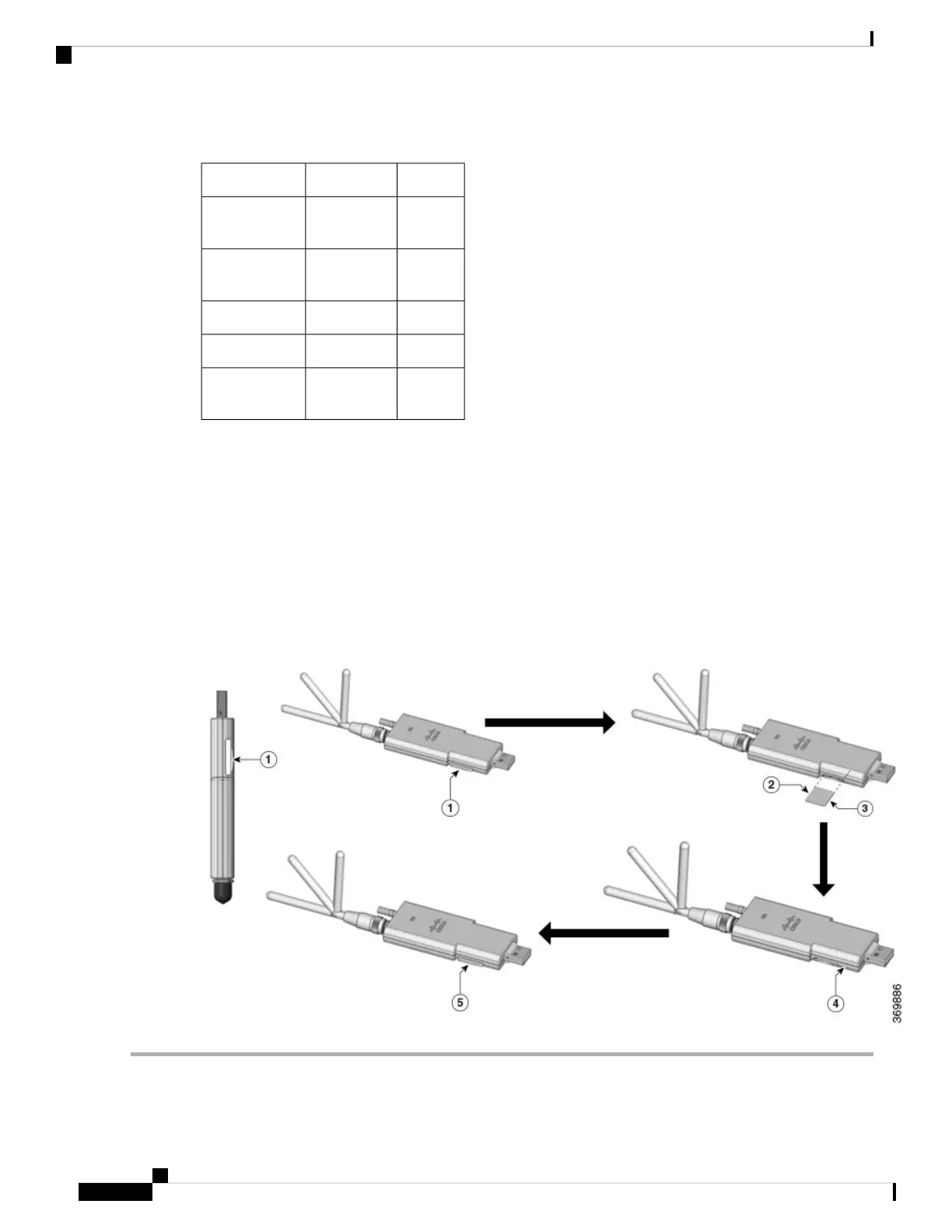

Figure 62: Micro-SIM Card Slot with Dust Cover
Step 1 To insert a micro-SIM card into a USB LTE dongle, do these steps:
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
74
Install and Upgrade Internal Modules and Field Replaceable Units
Install a Micro-SIM Card into a USB LTE Dongle

Cisco C1101-4P Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	-
WLAN data transfer rate (max)	- Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	AES, WPA2
Product type	Tabletop router
Product color	Gray
Country of origin	China
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	30 W
Internal memory	4000 MB
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4570 m
Storage temperature (T-T)	0 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Package depth	333.502 mm
Package width	254 mm
Package height	177.8 mm
Package weight	3083.9 g
