Chapter 12: Switch Management 211
Section 12-3
File Server
VLAN 58
PC Server
Network
Analyzer
A
Network
Analyzer
B
2/4
5/1
5/48
4/39
PC

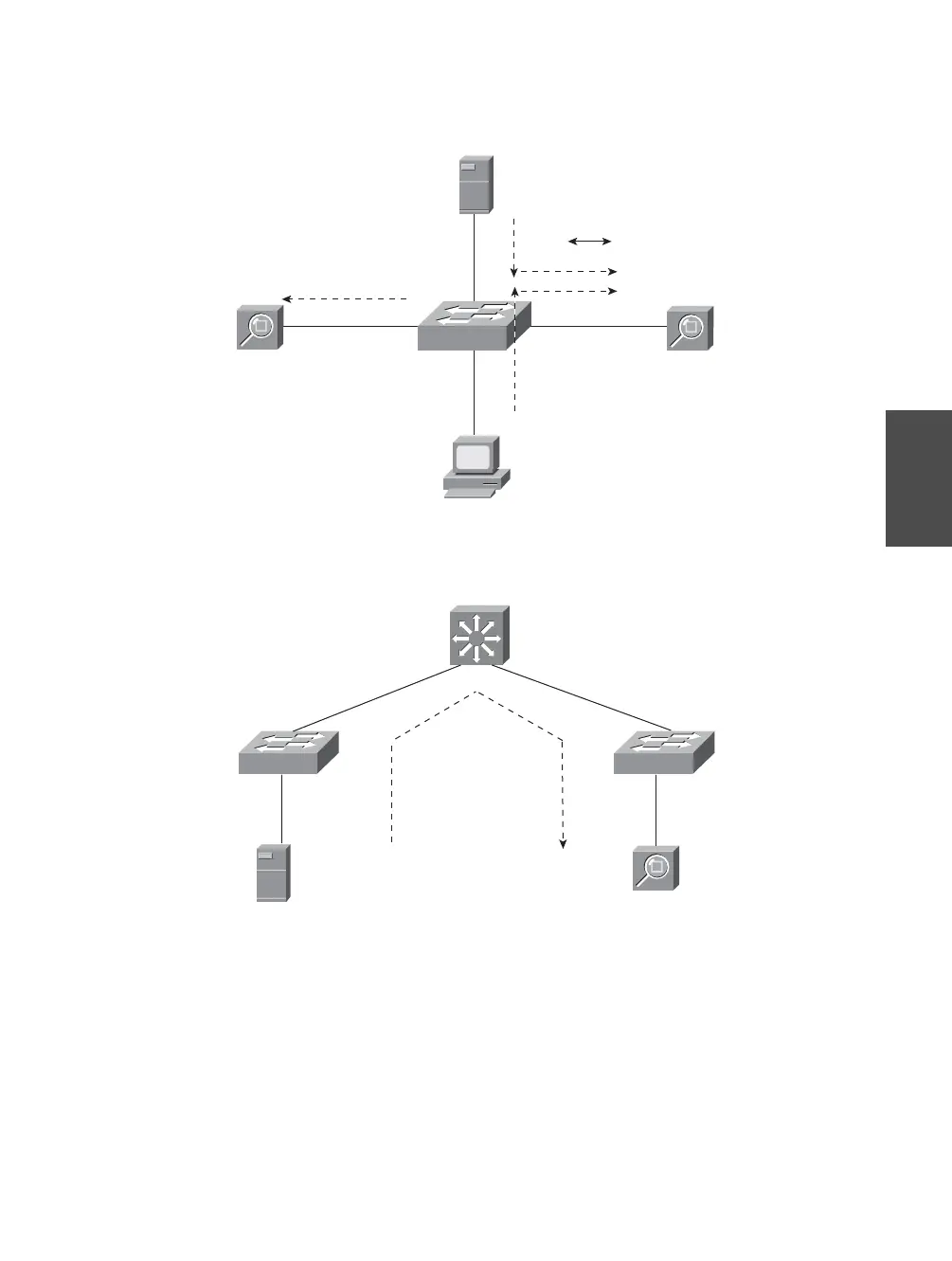

Figure 12-1 Network Diagram for the SPAN Example
Displaying Information About SPAN
Use the following command to display helpful information about SPAN.
Router#show monitor session[session-number]
Router# show monitor capture
File Server
Network
Analyzer
Si
Catalyst A
Catalyst B
Catalyst C
Trunk
Trunk
3/1 5/48
RSPAN
via
VLAN 901
Figure 12-2 Network Diagram for the RSPAN Example
