Cisco CDE 220 Series User Manual

1-27
Cisco Content Delivery Engine 205/220/250/280/285/420/460/475 Hardware Installation Guide
Chapter 1 Overview of the Content Delivery Engines
Hardware Features
CDE220 2A-F
Figure 1-16 is a front view of the CDE220 2A fiber and copper models showing the location of the
storage drives. Table 1-13 lists the CDE220 2A-F PCI expansion cards and their corresponding PCI slot
numbers (see Figure 1-8 to see the location of the PCI expansion slots).
CDE220 2C1-C

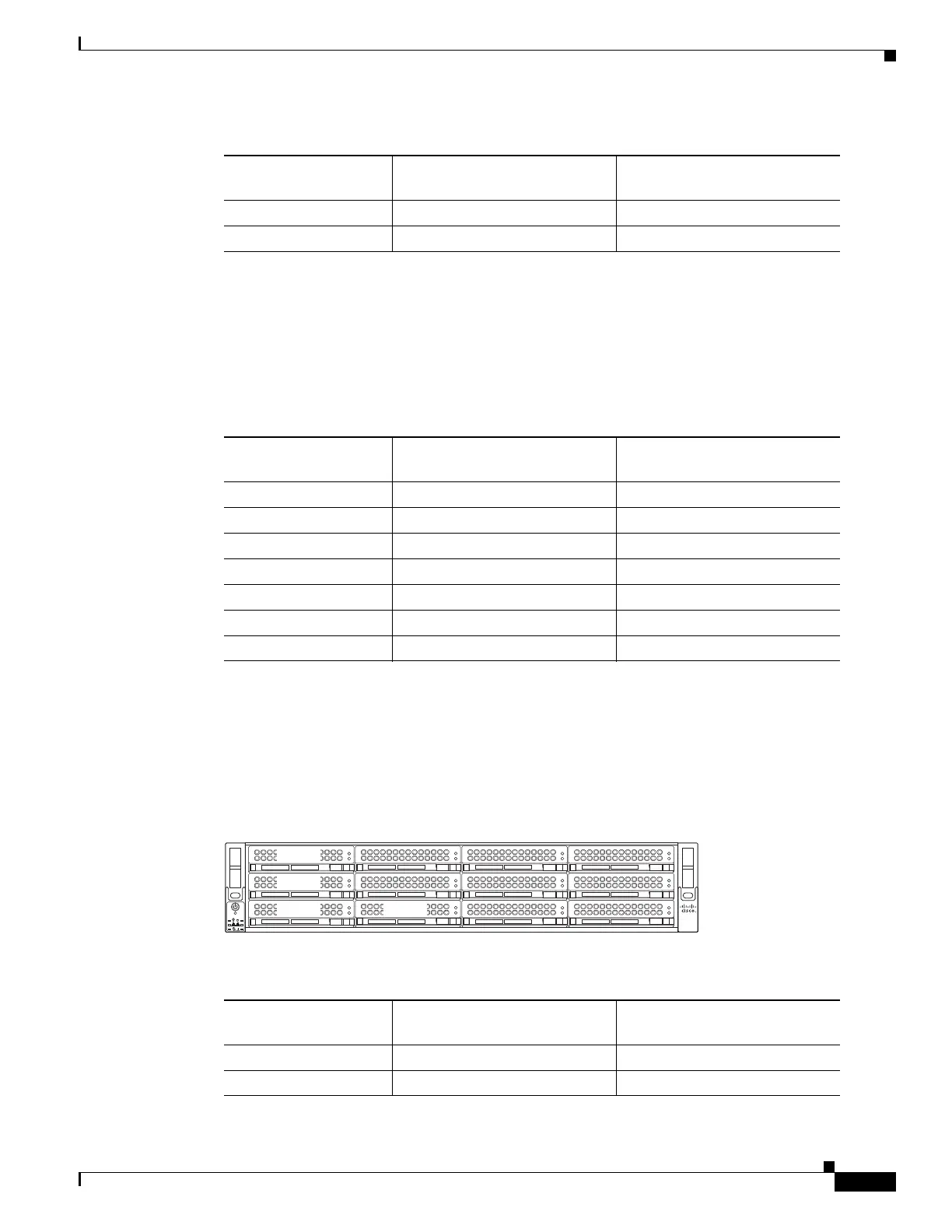

Figure 1-17 is a front view of the CDE220 2C1 (copper and fiber models) showing the location of the
storage drives. Table 1-14 lists the CDE220 2C1-C PCI expansion cards and their corresponding PCI slot
numbers (see Figure 1-8 to see the location of the PCI expansion slots).
Figure 1-17 CDE220 2C1-F/C Drives
6— —
7— —
Table 1-12 CDE220 2A-C PCI Expansion Cards
PCI Expansion
Slot Number
Expansion Card Interface Name
(top to bottom)
Table 1-13 CDE220 2A-F PCI Expansion Cards
PCI Expansion
Slot Number
Expansion Card Interface Name
(top to bottom)
1— —
2 NIC—dual fiber eth4 eth5
3 NIC—dual fiber eth2 eth3
4—
5 NIC—dual fiber eth6 eth7
6 NIC—dual fiber eth8 eth9
7— —
RESET
205499
disk3
disk2
disk1
disk4
Table 1-14 CDE220 2C1-C PCI Expansion Cards
PCI Expansion
Slot Number
Expansion Card Interface Name
(top to bottom)
1— —
2 NIC—quad copper eth2 eth3 eth4 eth5
