b) Remove the side brush brackets by unscrewing the captive screws at the top of each brush bracket.
c) Pull the foam air filter away from the snap-top alignment pins (two on the top and two on the bottom of the door).
Step 2 Install the new door filter as follows:
a) Align the 4 alignment holes on to the filter to the 4 alignment pins on the door.

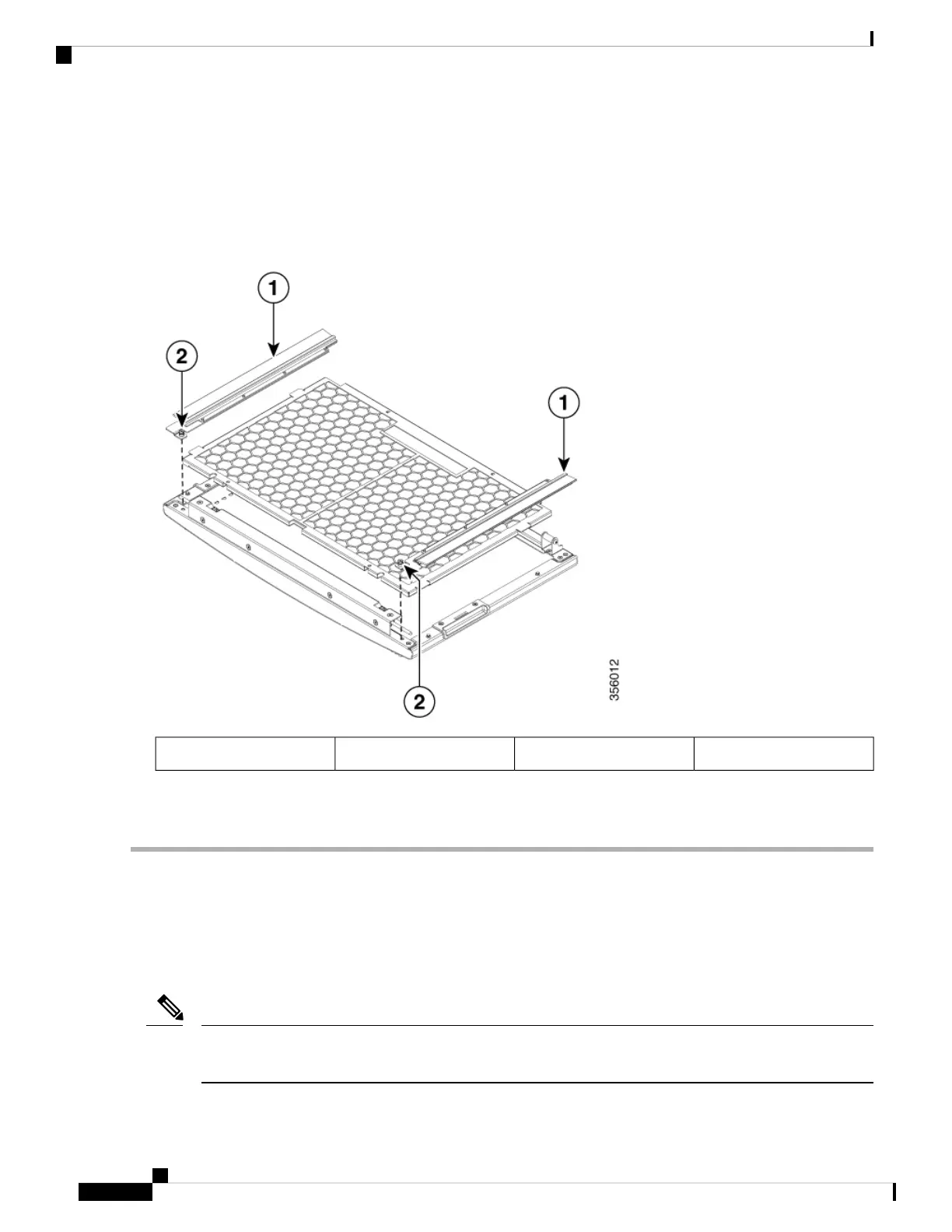

Figure 34: Align Door Filter to the Door
Side brush bracket screws2Side brush bracket1
b) Press the filter onto the alignment pins.
c) Install the side brush brackets and tighten the captive screws to secure the filter to the door.
What to do next
Ground the Front ID Door
Replace Chassis Door Foam Air Filters on the NCS 5508
In general, we recommend that you inspect the air filter every 3 months and replace, if necessary, every 6
months.
Note
Hardware Installation Guide for Cisco NCS 5500 Series Modular Routers
64
Install the Chassis
Replace Chassis Door Foam Air Filters on the NCS 5508
