using SMF cables. CWDM SFP transceivers can transmit and receive optical signals up to 61 miles (100 km)
depending on the quality of the fiber-optic cable used.
CWDM SFP transceivers are color coded to indicate their designated optical wavelength. The following figure
shows the CWDM transceiver, which looks like a standard 1000BASE-X SFP transceiver with a colored
arrow and bail clasp to indicate the designated wavelength.

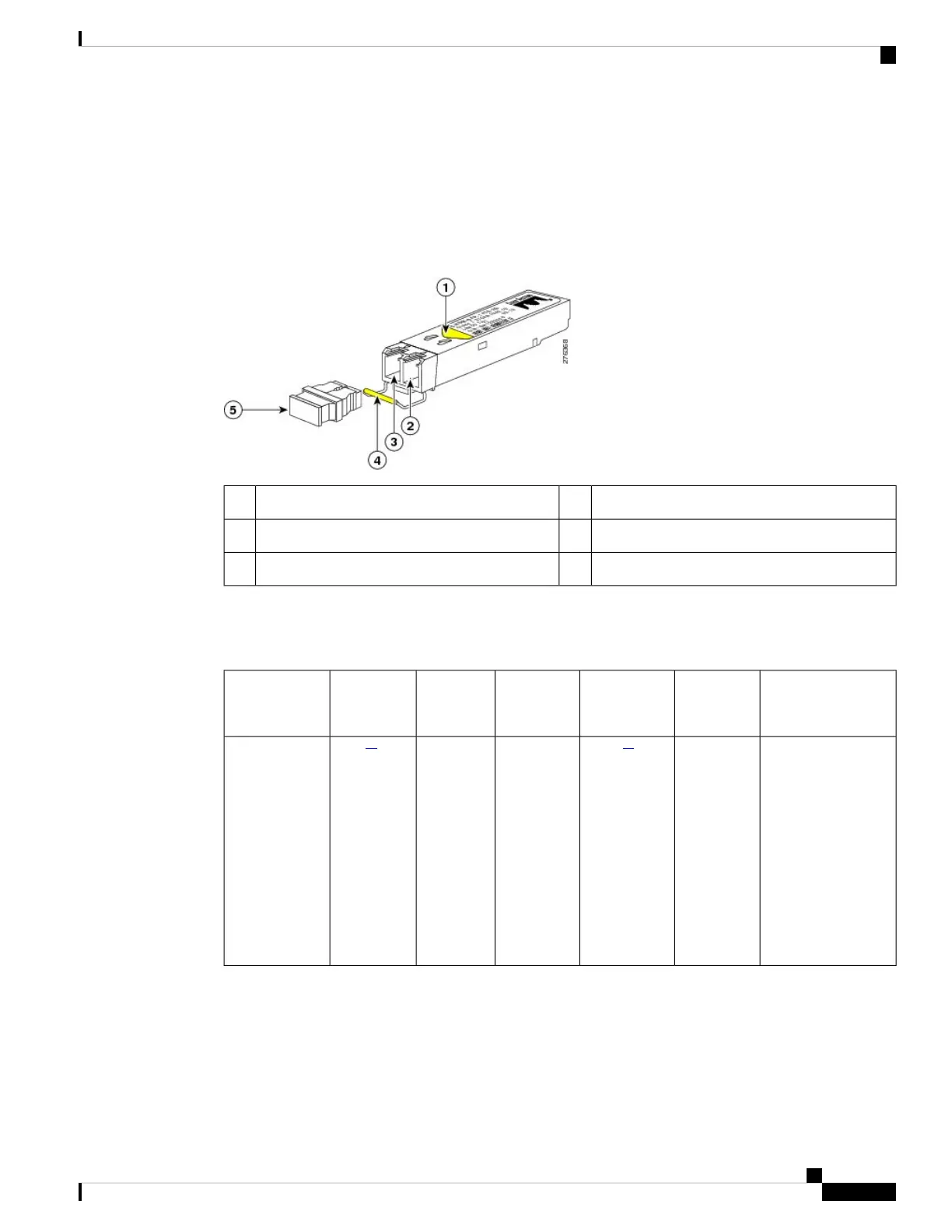

Figure 35: CWDM SFP Transceiver (Yellow Color Code)
Bail clasp4Colored arrow on label specifies the wavelength1
Dust plug5Receive optical bore2
Transmit optical bore3
Whenever the transceiver receive optical bores are not filled with optical cables, you should minimize the
chance of contamination by plugging the transceiver with its dust plug.
For the Cisco CWDM SFP transceiver cable specifications, see the following table.
Maximum Cable
Distance
Modal
Bandwidth
(MHz-km)
Core Size
(microns)
Wavelength
(nm)
Connector
Type
Cable TypeTransceiver
Type
62 miles (100 km)—G.652
11
1470, 1490,
1510, 1530,
1550, 1570,
1590, 1610
Dual
LC/PC
connector
SMF
10
CWDM-SFP-1470
CWDM-SFP-1490
CWDM-SFP-1510
CWDM-SFP-1530
CWDM-SFP-1550
CWDM-SFP-1570
CWDM-SFP-1590
CWDM-SFP-1610
10
Single-mode fiber optic (SMF)
11
ITU-T G652 SMF as specified by the IEEE 802.32 standard.
For the specifications that differentiate the 1000BASE-CWDM SFP transceivers, see the Cisco Gigabit Ethernet
Transceiver Modules Compatibility Matrix. For specifications and installation information that apply to all
CWDM SFP transceivers, see the Cisco SFP and SFP+ Transceiver Module Installation Notes.
