c) Under Boot Option Priorities, verify that the OS you installed is listed as your Boot Option #1.
Replacing a SAS/SATA Drive
Step 1 Remove the drive that you are replacing or remove a blank drive tray from the bay:
a) Press the release button on the face of the drive tray.
b) Grasp and open the ejector lever and then pull the drive tray out of the slot.
c) If you are replacing an existing drive, remove the four drive-tray screws that secure the drive to the tray and then lift
the drive out of the tray.
Step 2 Install a new drive:
a) Place a new drive in the empty drive tray and install the four drive-tray screws.
b) With the ejector lever on the drive tray open, insert the drive tray into the empty drive bay.
c) Push the tray into the slot until it touches the backplane, and then close the ejector lever to lock the drive in place.

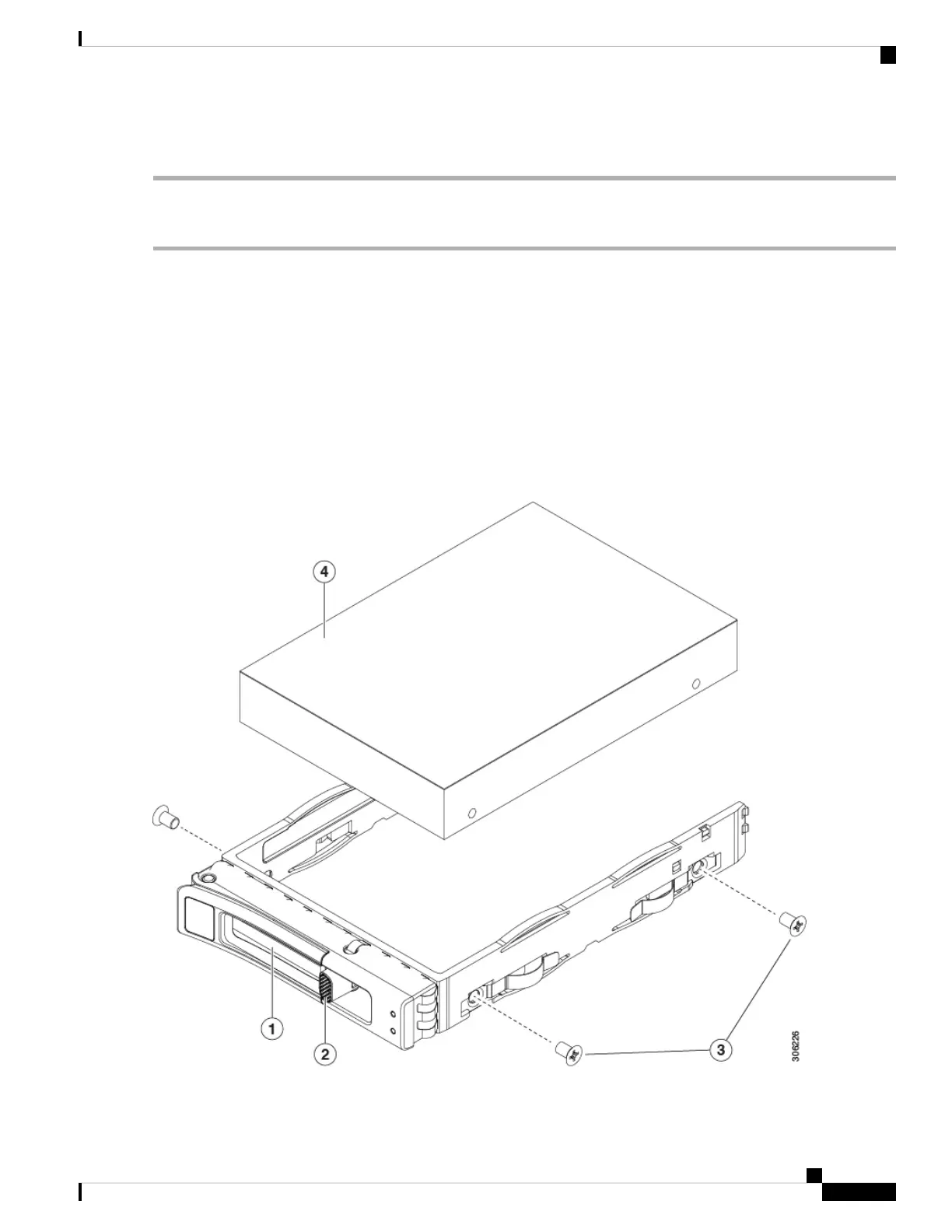

Figure 8: Replacing a Drive in a Drive Tray
Maintaining the Server
15
Maintaining the Server
Replacing a SAS/SATA Drive

Cisco UCS C220 M5 Specifications

General

Processor cache	22 MB
Processor model	6130
Execute Disable Bit	Yes
Processor frequency	2.1 GHz
Processor manufacturer	Intel
Processor boost frequency	3.7 GHz
Number of processors installed	2
On-board graphics card	-
Memory slots	24
Internal memory	64 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	128 GB
SSD interface	Serial Attached SCSI (SAS)
Optical drive type	No
Supported HDD sizes	2.5, 3.5 \
Supported SSD sizes	2.5\
Total storage capacity	32 GB
Maximum storage capacity	- TB
Chassis type	Rack (1U)
Power supply	700 W
Intel TSX-NI version	1.00
