ERA® WCS and e-POI Subracks and Power Supply Unit Installation Guide M0201ABK_uc
Page 28 © June 2021 CommScope, Inc.
WCS-2 and WCS-4 Subrack Overview
Auxiliary Unit Transport (AUT) Card
The AUT Card (PN 7642132-xx) provides a 1 Gbps pass-through connection between Classic CANs and TENs
and APs for WiFi, IP cameras, or other gigabit Ethernet devices. Switching CANs do not support AUT Cards.
(For information on the internal mapping between CAT Cards and AUT Cards, and for rules pertaining to
connecting an AUT Card, see "Connect the AUT Cards” on page 73.)

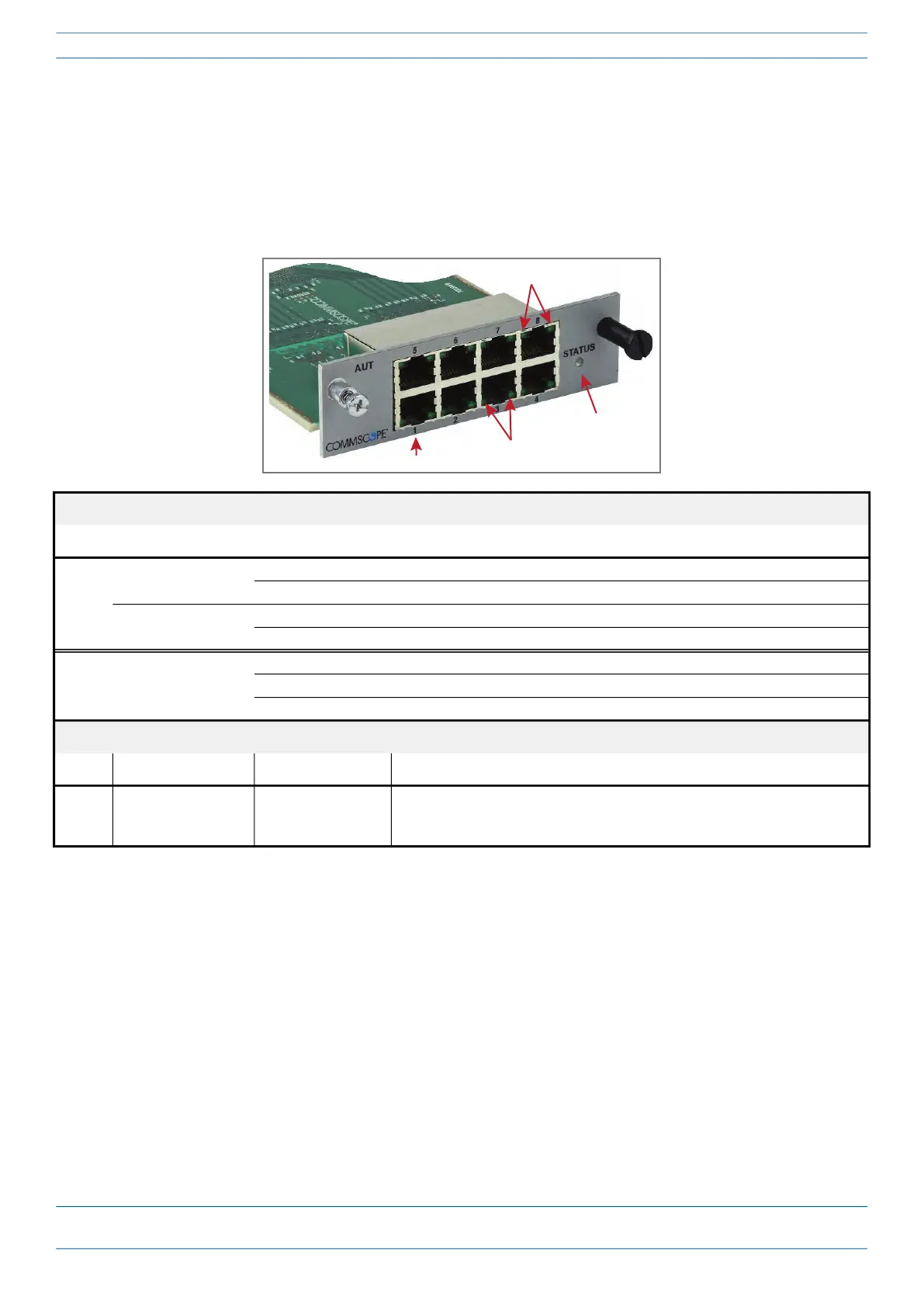

The following graphic and table identify the AUT Card LEDs and connectors.
AUT Card LEDs
Ref # LED LED Color Description
2 Left LED
on RJ45 Ports 1 - 8
• Off • No activity on that port.
• Flashing green • Activity on that port.
Right LED
on RJ45 Ports 1 - 8
• Off • Port is transmitting 1 Gbps.
• Green • Port is transmitting 100 Mbps or is not connected.
3 STATUS • Off • Error on the AUT Card, or AUT Card is not receiving power.
• Green • AUT Card functioning as expected.
• Red • AUT Card is experiencing an error.
AUT Card Connectors
Ref # Component Device Function
1 Ports 1 - 8 RJ45 ports Provides a 1Gbs pass-through connection from a network connection on the AUT
card to a WiFi, IP camera, or other 1Gbps Ethernet device connected to the AP
paired with the AUT port.
