Optional e-POI Subracks
e-POI Modules
The e-POI Modules provide a wide-band, high power, low-PIM, interface and attenuation for the ERA RFD
Cards. Each e-POI Module can handle all frequency bands as well as multiple operators. Each e-POI Module
has four duplexed ports that supply support for up to four interfaces. e-POI modules are hot swappable; you
do not need to power down the e-POI subrack to add or remove them. However, there are steps you should
take to avoid false alarms; please see "Removing an e-POI Module from an e-POI Subrack” on page 80.

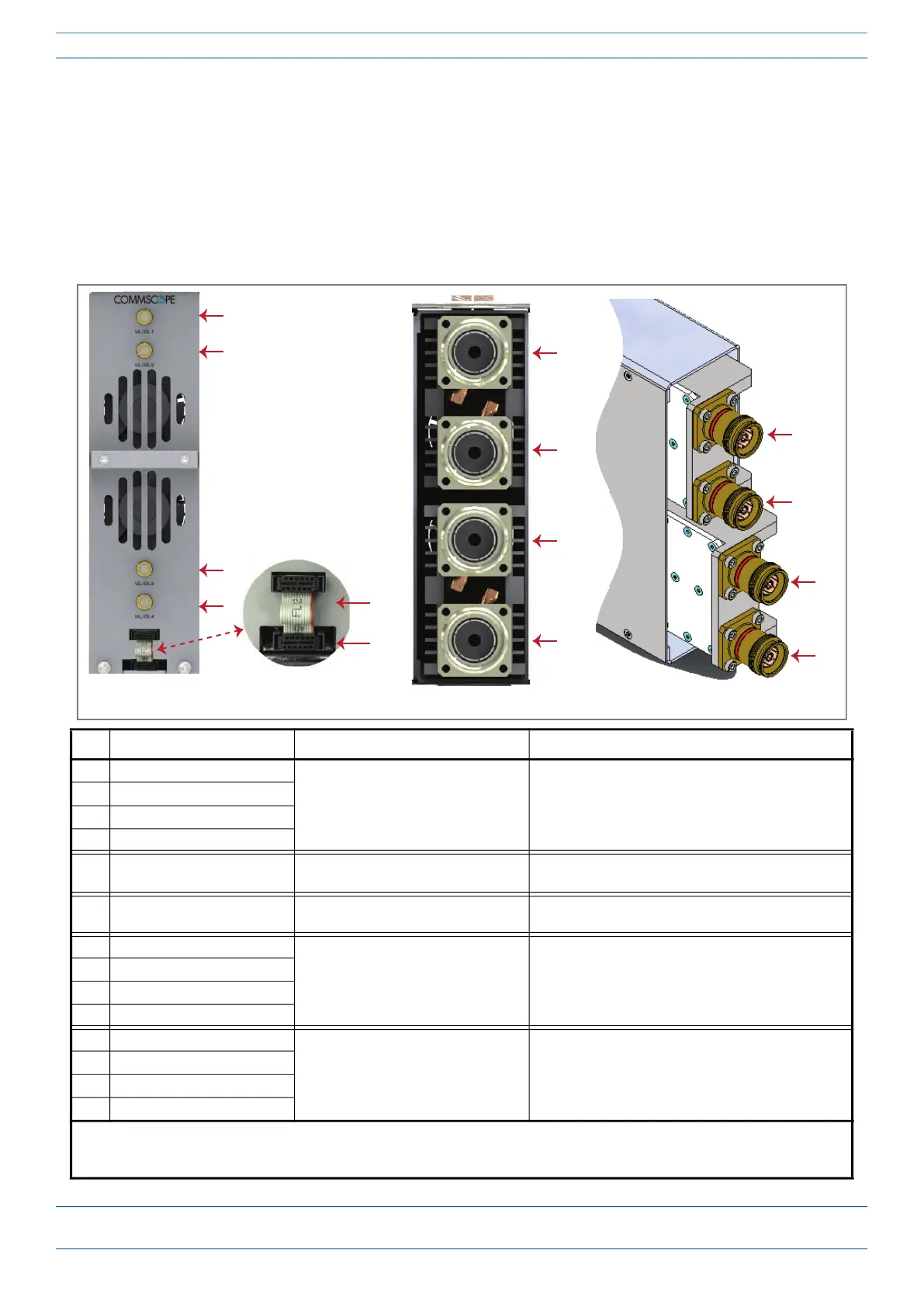

The following graphic and table identify the e-POI Module connectors.
Ref # Component Device Function
1 UL/DL Port 1
Female QMA connector Connect to Ports 1 - 4 on an RFD Card in the CAN.
2 UL/DL Port 2
3 UL/DL Port 3
4 UL/DL Port 4
5 Module Power/Com port 4-pin power connector
Use the Ribbon cable
1
(PN 7671957-xx) to connect the
Module Power port to the Subrack Power/Com port.
6 e-POI Subrack Power/Com port 4-pin power connector
Connects to DC on a 12 Vdc Rectifier Module in the WCS
Subrack.
7 UL/DL Port 1
7/16 DIN connectors
(e-POI Module PN 7659180-00)
2
Connect to the eNodeB.
8 UL/DL Port 2
9 UL/DL Port 3
10 UL/DL Port 4
11 UL/DL Port 1
4.3-10 connectors
(e-POI Module PN 7761433-00)
Connect to the eNodeB.
12 UL/DL Port 2
13 UL/DL Port 3
14 UL/DL Port 4
1 The Ribbon cable is connected after the e-POI Module is installed in the e-POI Subrack.
2 The e-POI Module 7659180-00 is no longer being manufactured, it is included here for those ERA systems in which this version of the
e-POI Module is installed and deployed at customer sites.
e-POI Module
Front Panel
1
2
3
4
5
6
Two versions of the e-POI Module Back Panel
7
8
9
10
11
12
13
14
