D-Link DHP-W306AV User Manual

34D-Link DHP-W306AV User Manual

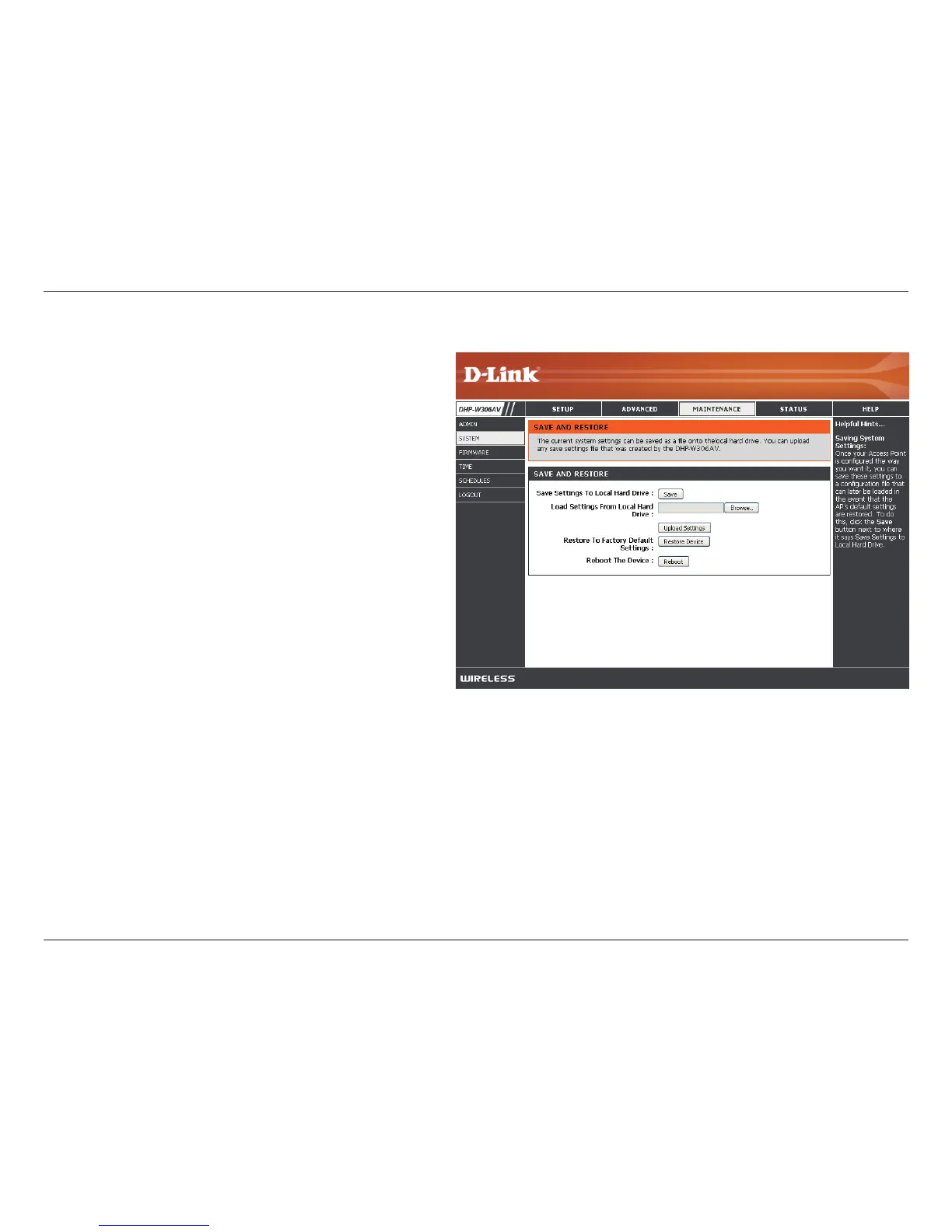

Section 3 - Configuration
Save to Local
Hard Drive:
Upload from Local
Hard Drive:
Restore to Factory
Default:
Reboot the Device:
Use this option to save the current access point
conguration settings to a le on the computer you
are using. Click the button. You will then see
a le dialog where you can select a location and
le name for the settings.
Use this option to load previously saved access
point conguration settings. Click  to nd a
previously saved conguration le. Then, click the
 button to transfer those settings
to the access point.
This option will restore all conguration settings
back to the settings that were in effect at the time
the access point was shipped from the factory.
Any settings that have not been saved will be
lost, including any rules that you have created. If
you would like to save the current access point
conguration settings, use the  button above.
 Restoring the factory default settings
will not reset the Wi-Fi Protected Status to Not
Congured.
Click to reboot the access point.
System

D-Link DHP-W306AV Specifications

Power

power input	240 V AC, 50/60 Hz
power saving mode	supported

Operating Environment

operating temperature	0º to 40ºC (30º to 104ºF)
operating humidity	10% to 95% non-condensing

Data Transmission

powerline data rate	200 Mbps (PHY rate)
ethernet data rate	10/100 Mbps (autonegotiation)
wireless data rate	up to 300 Mbps

Frequency and Modulation

powerline frequency band	2 MHz to 30 MHz
wireless frequency range	2.4 GHz to 2.497 GHz
powerline modulation scheme	OFDM Symbol Modulation

Weight and Dimensions

dimensions	105 x 70 x 52 mm (4.1 x 2.8 x 2.0 inches)
weight	208 g (0.46 lb)
