DIR-X1530
AX1500 Wi-Fi 6 Gigabit Router
User Manual
Configuring via Web-based Interface
GRE
On the
VPN / GRE
page, you can configure VPN tunnels based on GRE protocol.
GRE
(
Generic
Routing
Encapsulation
)
is
a
protocol
for
tunneling
network
packets,
w
hich
enables
you to create unprotected VPN tunnels.

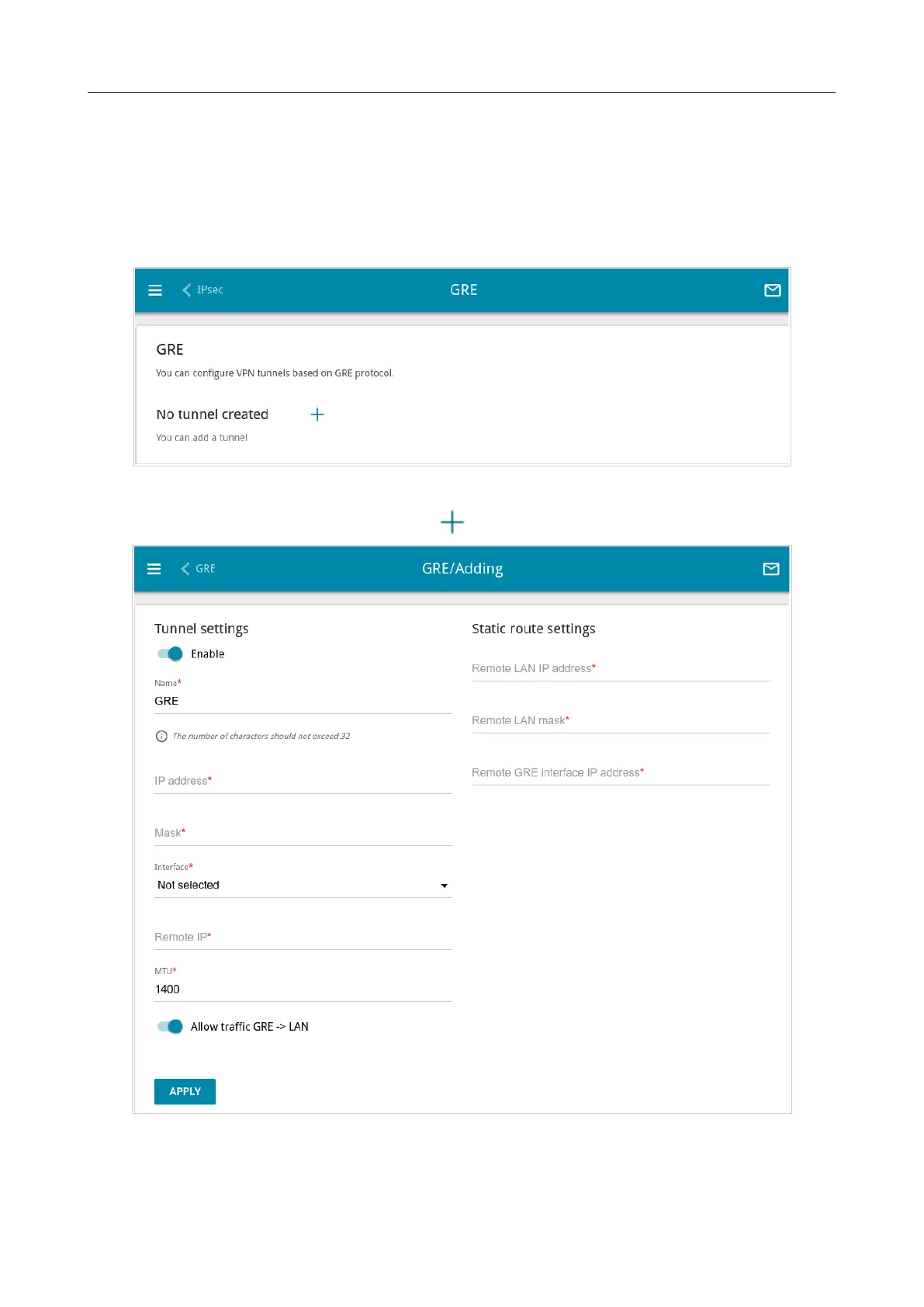

Figure 106. The
VPN / G
RE
page.
T
o create a new tunnel, click
the
ADD
button (
).
Figure 107. The page for adding a GRE tunnel.
Page
130
of 254
129
131
