DIR-X1530 AX1500 Wi-Fi 6 Gigabit Router
User Manual
Configuring via Web-based Interface
IPsec Statistics
On the Statistics / IPsec Statistics page, you can view statistics for IPsec tunnels of the router.
For each tunnel the following data are displayed: name and state (when the connection is on, its
name is highlighted in green, when the connection is off, its name is highlighted in red), remote host
address or domain name, operation mode and connection type, and number of packets and volume
of data received and transmitted.

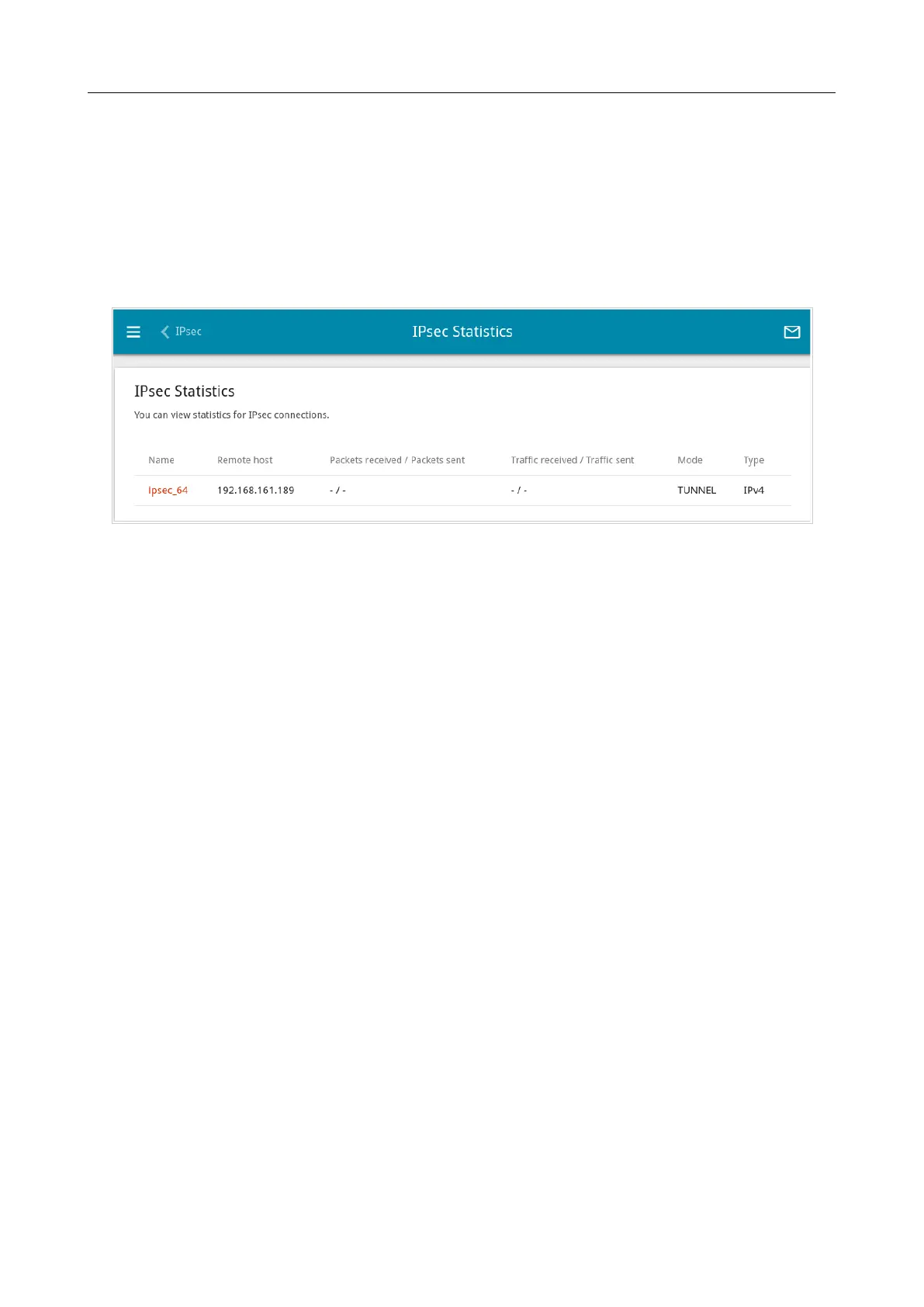

Figure 62. The Statistics / IPsec Statistics page.
To view detailed data on a tunnel, click the line corresponding to this tunnel.
