DIR-X1530 AX1500 Wi-Fi 6 Gigabit Router
User Manual
Configuring via Web-based Interface
Selecting Operation Mode
Select the needed operation mode and click the NEXT button.
Router
In order to connect your device to a wired ISP, on the Device mode page, from the Connection
method list, select the Wired connection value. Then from the Work mode list select the
Router value. In this mode you can configure a WAN connection, set your own settings for the
wireless network in the 2.4GHz and 5GHz bands, configure LAN ports to connect an STB or VoIP
phone, and set your own password for access to the web-based interface of the device.

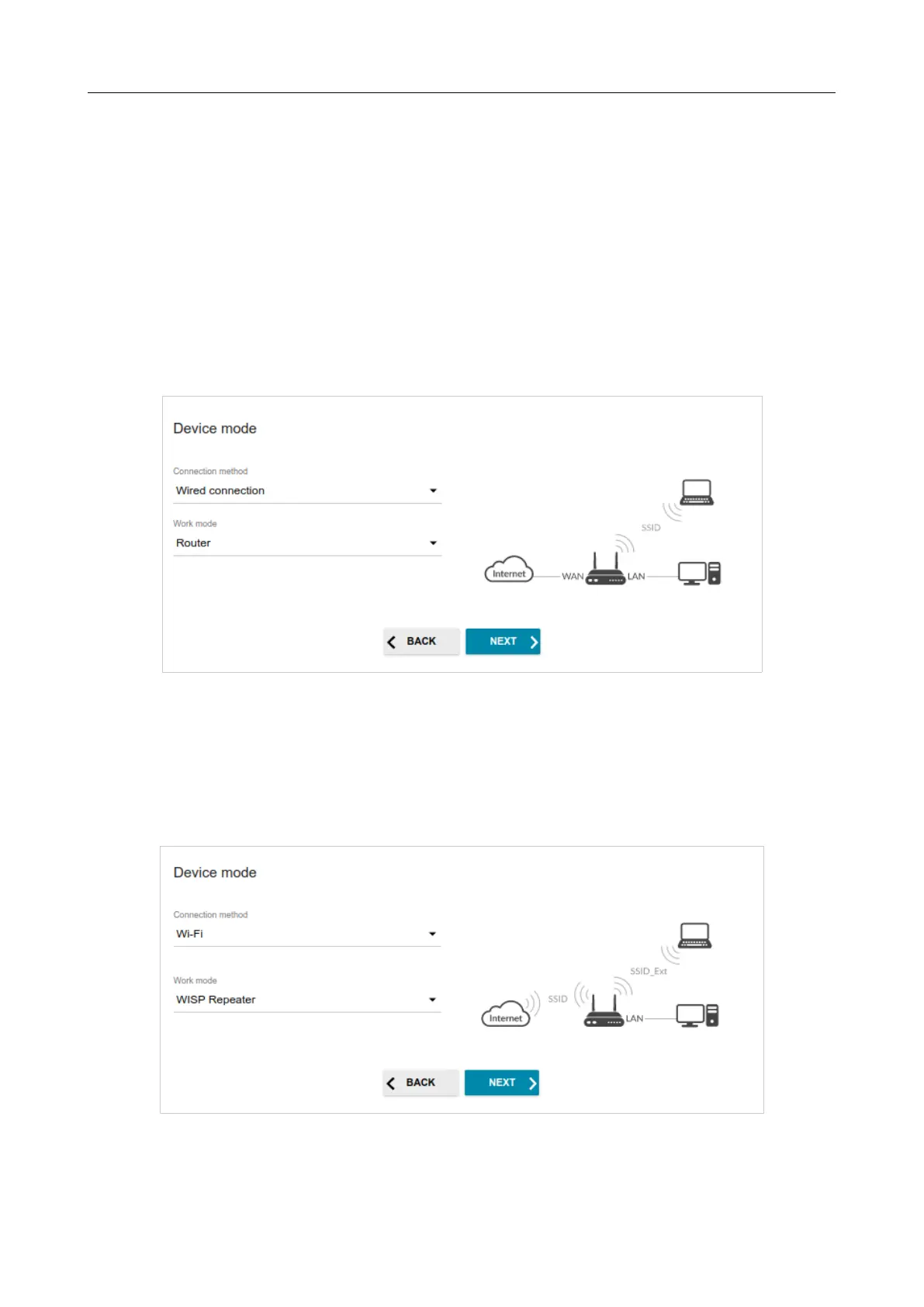

Figure 33. Selecting an operation mode. The Router mode.
In order to connect your device to a wireless ISP (WISP), on the Device mode page, from the
Connection method list, select the Wi-Fi value. Then from the Work mode list select the
WISP Repeater value. In this mode you can connect your device to another access point,
configure a WAN connection, set your own settings for the wireless network in the 2.4GHz and
5GHz bands, and set your own password for access to the web-based interface of the device.
Figure 34. Selecting an operation mode. The WISP Repeater mode.
Page 45 of 254
