DIR-X1530
AX1500 Wi-Fi 6 Gigabit Router
User Manual
Configuring via Web-based Interface
Port Statistics
On
the
Statistics
/
Port
Statistics
page,
you
can
view
statistics
for
traffi
c
passing
through
ports
of the router
.
The i
nformation shown on the page can be used for diagnosing connection problems.

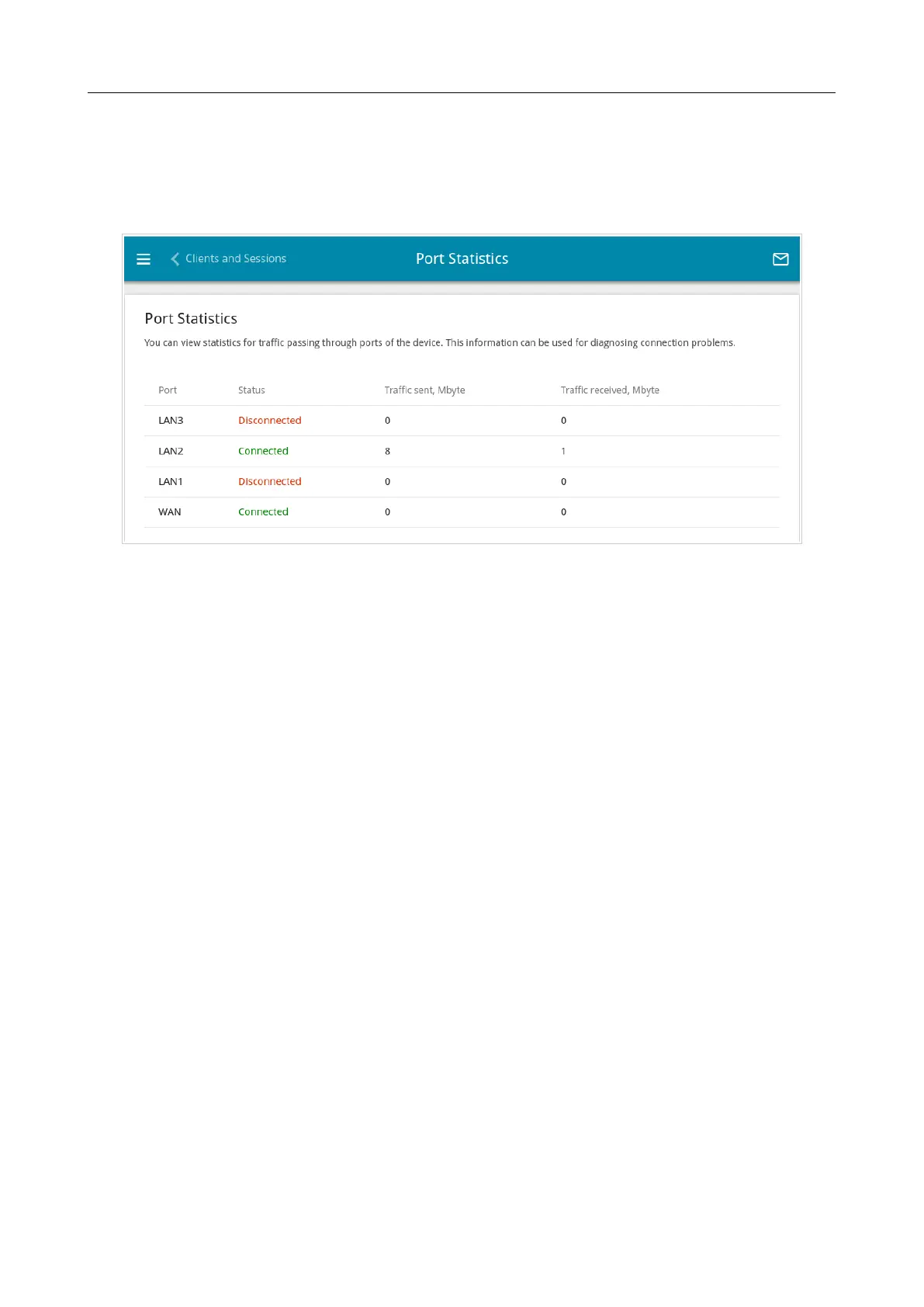

Figure 60. The
Statistics / Port Statistics
page.
T
o view the full list of counters for a port, click the line corresponding
to this port.
Page
72
of 254
71
73
