DIR-X1530
AX1500 Wi-Fi 6 Gigabit Router
User Manual
Configuring via Web-based Interface
EoIP
On the
VPN / EoIP
page, you can configure VPN tunnels based
on EoIP
technology
.
EoIP
(
Ethernet
over
IP
)
technology
allows
creating
an
Ethernet
tunnel
between
two
routers
via
connections which can transmit IP
packets (e.g.,
IPIP
, PPTP
connections).

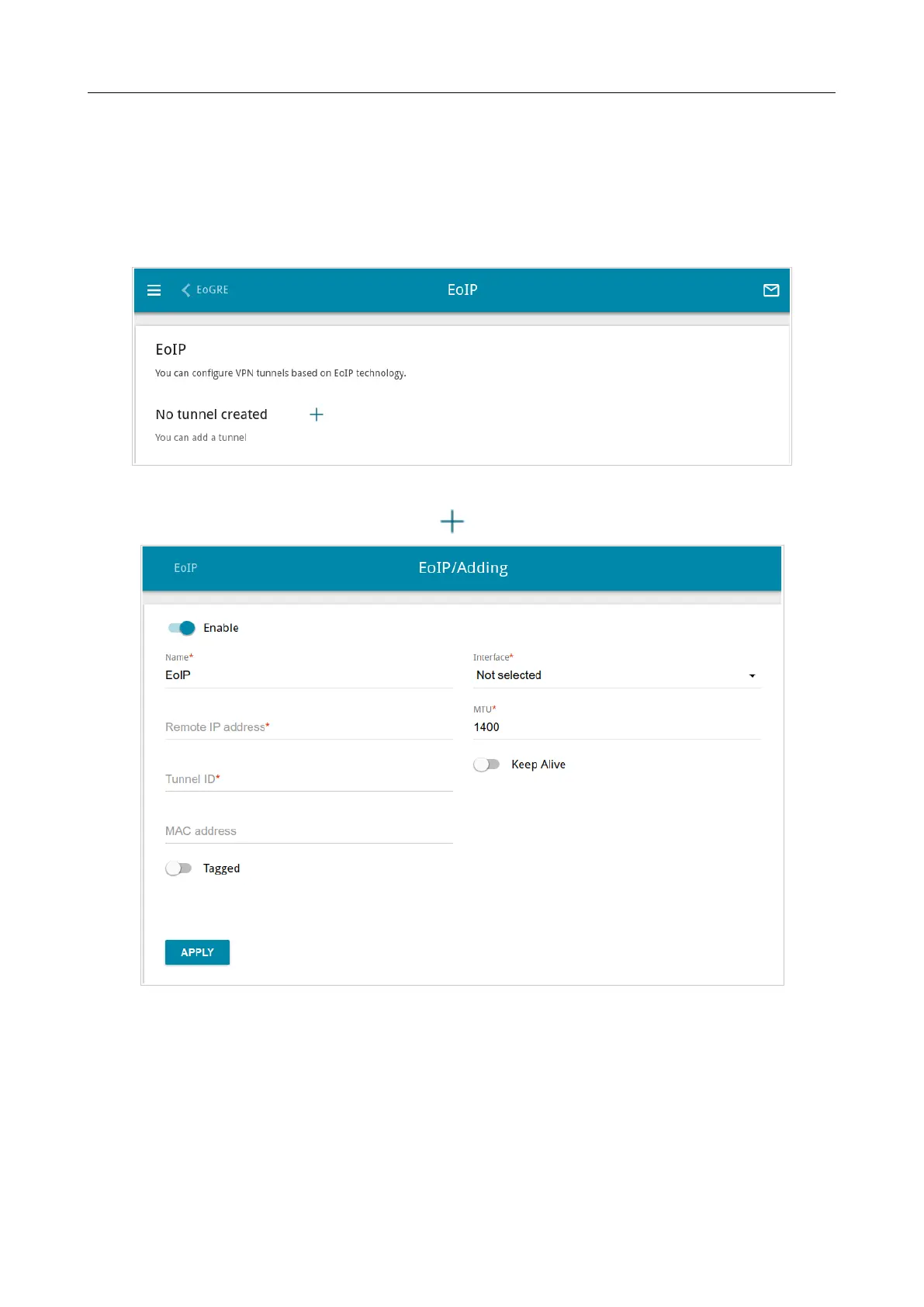

Figure 1
16. The
VPN / EoIP
page.
T
o create a new tunnel, click
the
ADD
button (
).
Figure 1
17.
The page for addi
ng an EoIP tunn
el.
Page
142
of 254
141
