DIR-X1530 AX1500 Wi-Fi 6 Gigabit Router
User Manual
Configuring via Web-based Interface
VLAN
On the Advanced / VLAN page, you can edit existing and create new virtual networks (VLAN),
e.g., for distinguishing traffic or specifying additional WAN interfaces.
By default, 2 VLANs are created in the router's system.
• LAN: For the LAN interface, it includes LAN ports and Wi-Fi networks. You cannot delete
this VLAN.
• WAN: For the WAN interface; it includes the INTERNET port. You can edit or delete this
VLAN.

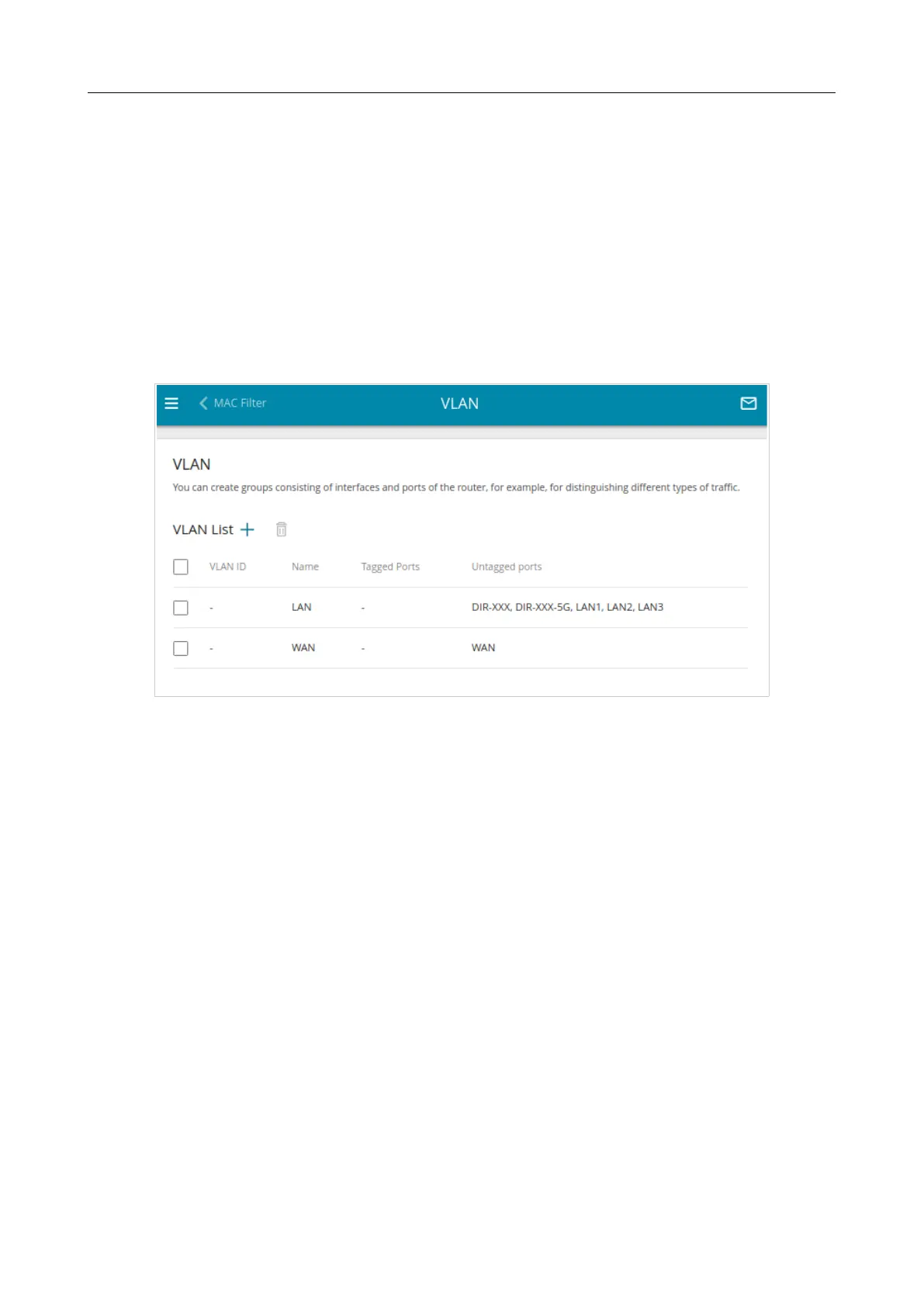

Figure 130. The Advanced / VLAN page.
In order to add untagged LAN ports or available Wi-Fi networks to an existing or new VLAN, first
you need to exclude them from the LAN network on this page. To do this, select the LAN line. On
the opened page, from the Type drop-down list of the element corresponding to the relevant LAN
port or Wi-Fi network, select the Excluded value and click the APPLY button.г
Page 172 of 254
