DIR-X1530 AX1500 Wi-Fi 6 Gigabit Router
User Manual
Configuring via Web-based Interface
PPTP + Static IP or L2TP + Static IP Connection

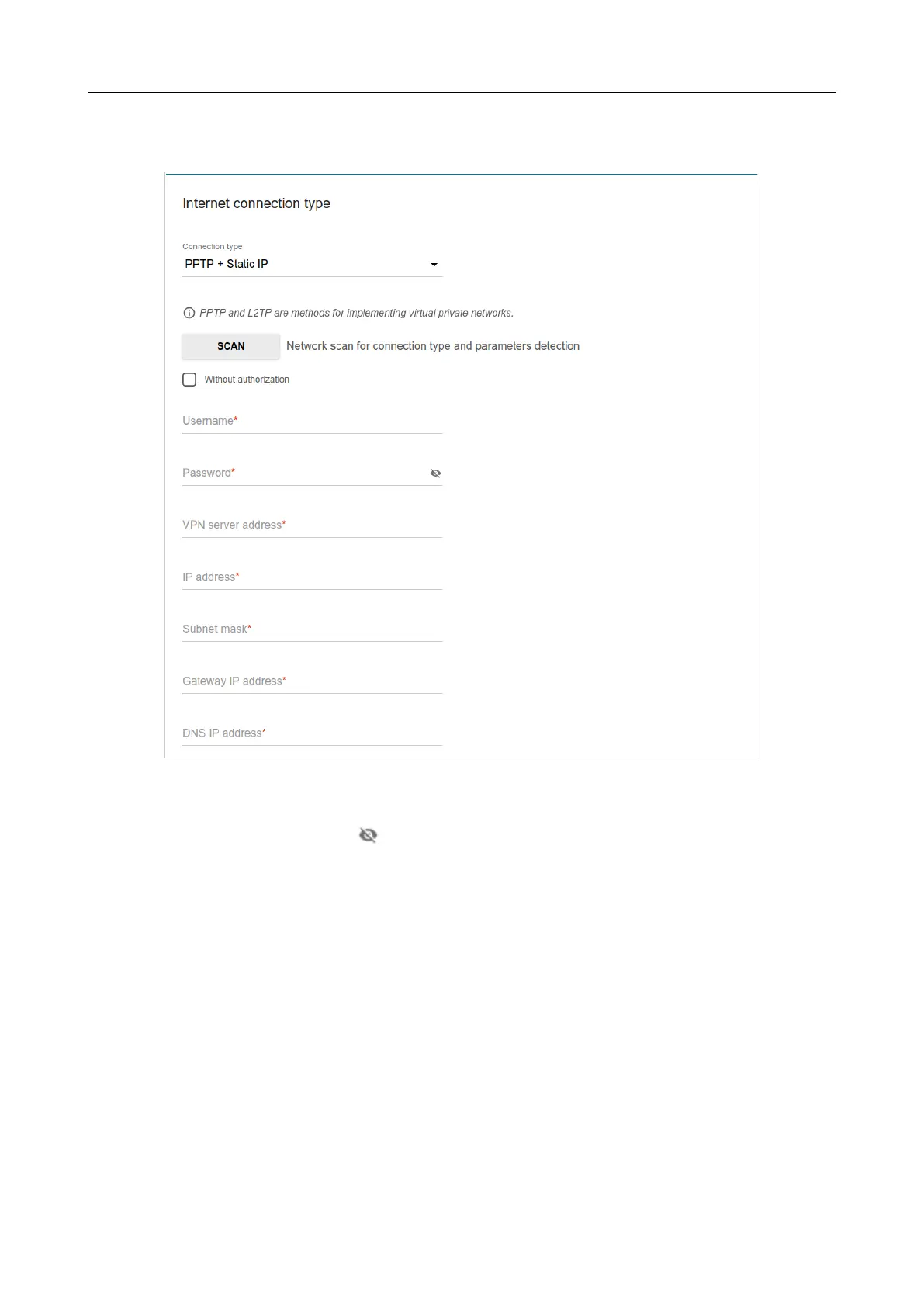

Figure 45. The page for configuring PPTP + Static IP WAN connection.
In the Username field enter the login and in the Password field enter the password provided by
your ISP. Click the Show icon ( ) to display the entered password. If authorization is not
required, select the Without authorization checkbox.
In the VPN server address field, enter the IP or URL address of the PPTP or L2TP
authentication server.
Also fill in the following fields: IP address, Subnet mask, Gateway IP address, and DNS IP
address.
Page 57 of 254
