D-Link DSL-2640R User Manual

Configuration

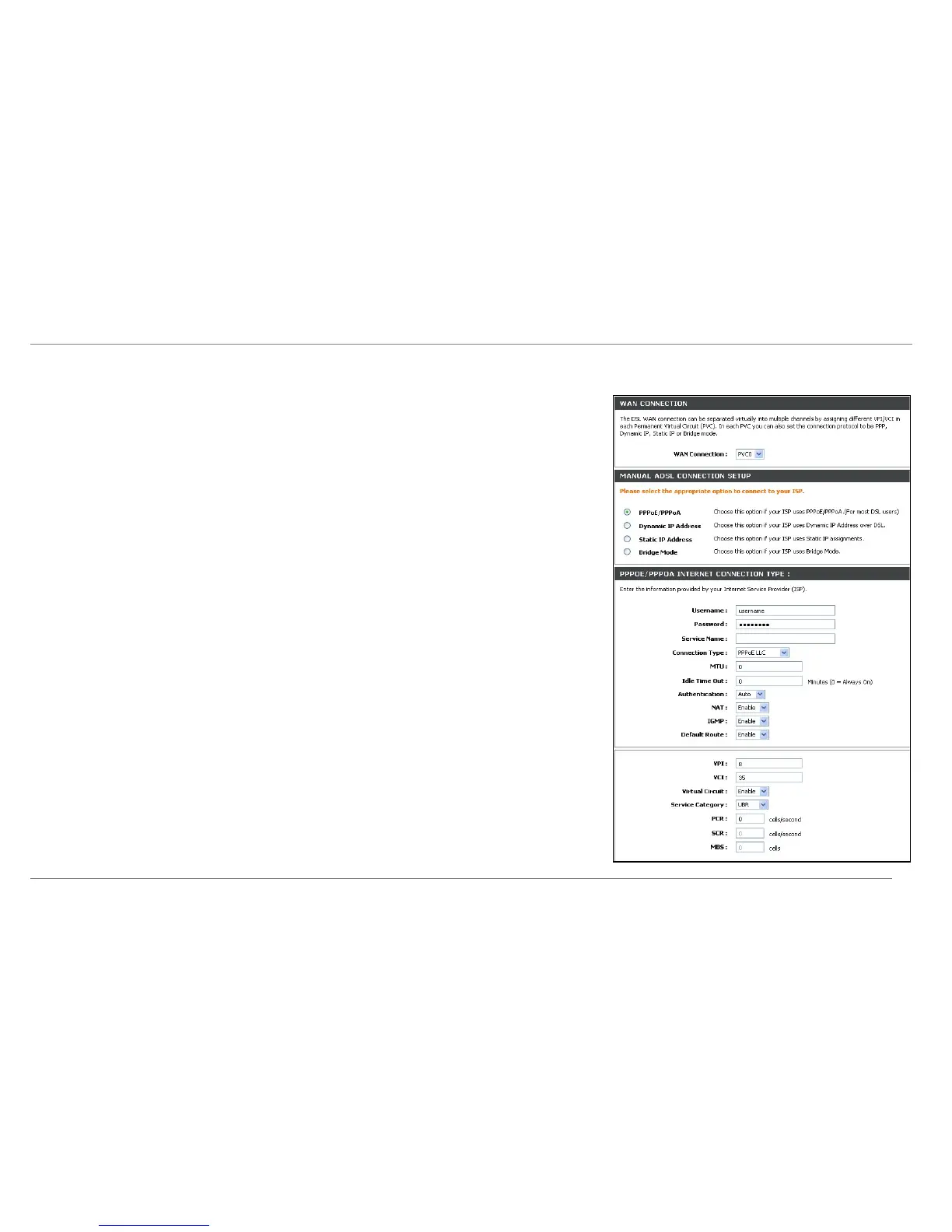

ADSL Setup – Manual Configuration
To configure the Router’s basic configuration settings without running the Setup Wizard, you can access the
menus used to configure ADSL Setup, LAN Setup, Time and Date, and Parental Control settings directly from
the Setup directory. To access the ADSL Setup menus for PPPoE/PPPoA, Dynamic IP Address and Static IP
Address connections, click on the ADSL Setup link button on the left side of the first menu that appears when
you successfully access the web manager.
D-Link DSL-2640R User Manual
23

D-Link DSL-2640R Specifications

Power

input voltage	100-120V
input current	0.4A
frequency	50-60 Hz
output voltage	12V
output current	1.2A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps

Wireless Transfer Rates

IEEE 802.11b	11, 5.5, 2, and 1 Mbps
IEEE 802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps

Media Interface

ADSL interface	RJ-11 connector for connection to 24/26 AWG twisted pair telephone line
LAN interface	four RJ-45 ports for 10/100BASE-T Ethernet connection
