D-Link DSL-2640R User Manual

Advanced Configuration

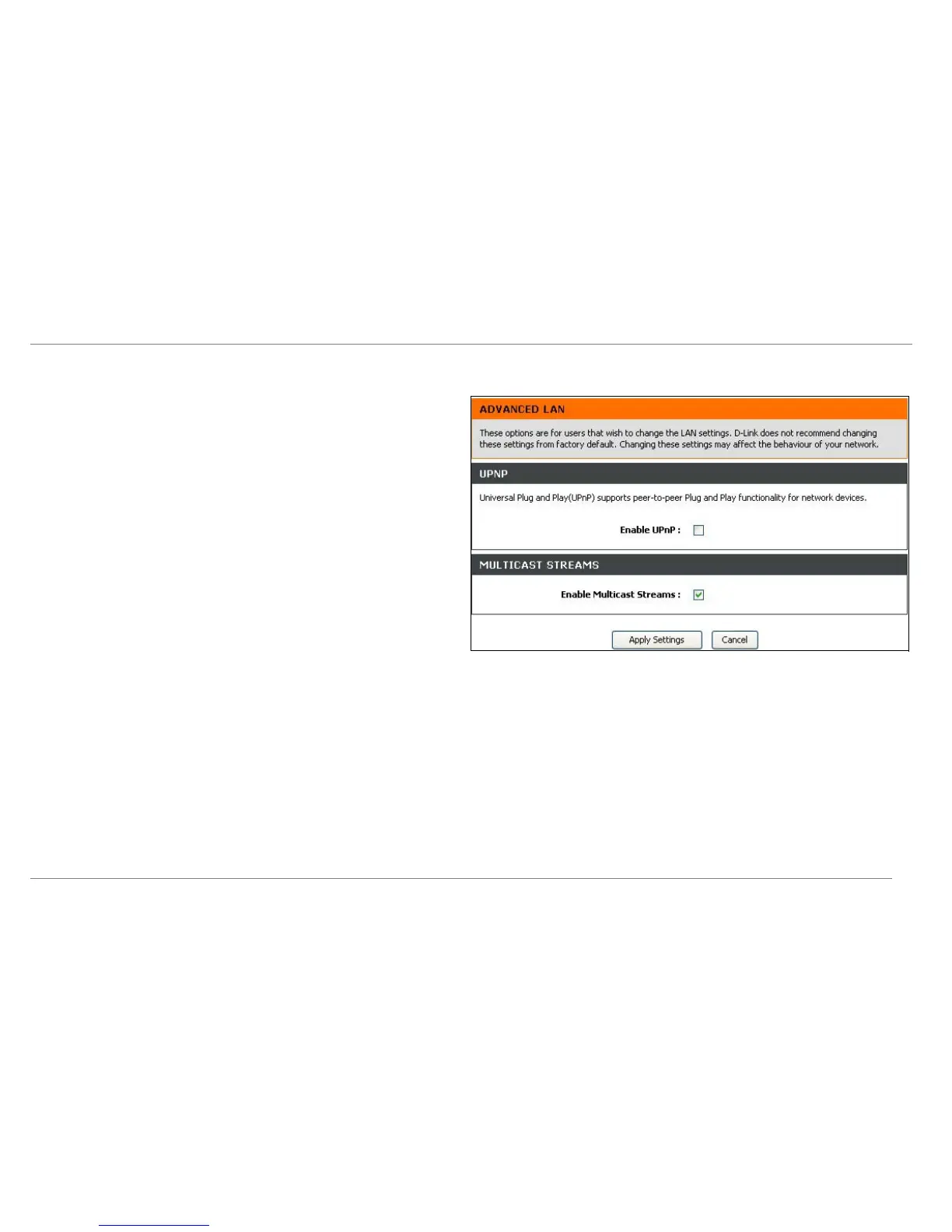

Advanced LAN
Use the Advanced LAN menu to enable or disable UPnP and multicast streaming.
UPnP or Universal Plug and Play is disabled by default. This network protocol is
used to simplify networking and is supported on many types of networking devices.
Devices that support UPnP advertise their services and capabilities to other UPnP
enabled devices to facilitate network applications such as streaming audio or
video. To use UPnP click the Enable UPnP option to check the box.
Multicast streaming support is enabled by default to allow streaming of audio and
video and other multicast applications to pass through the Router. To disable
multicast streams click the Enable Multicast Streams box to remove the check
mark. Keep in mind that Internet radio and similar multicast services will not
function if the Enable Multicast Streams option is not checked.
Click on the Apply Settings button to save and apply the advanced LAN
configuration.
D-Link DSL-2640R User Manual
47

D-Link DSL-2640R Specifications

Power

input voltage	100-120V
input current	0.4A
frequency	50-60 Hz
output voltage	12V
output current	1.2A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps

Wireless Transfer Rates

IEEE 802.11b	11, 5.5, 2, and 1 Mbps
IEEE 802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps

Media Interface

ADSL interface	RJ-11 connector for connection to 24/26 AWG twisted pair telephone line
LAN interface	four RJ-45 ports for 10/100BASE-T Ethernet connection
