D-Link DSL-2640R User Manual

Advanced Configuration
Advanced Setup

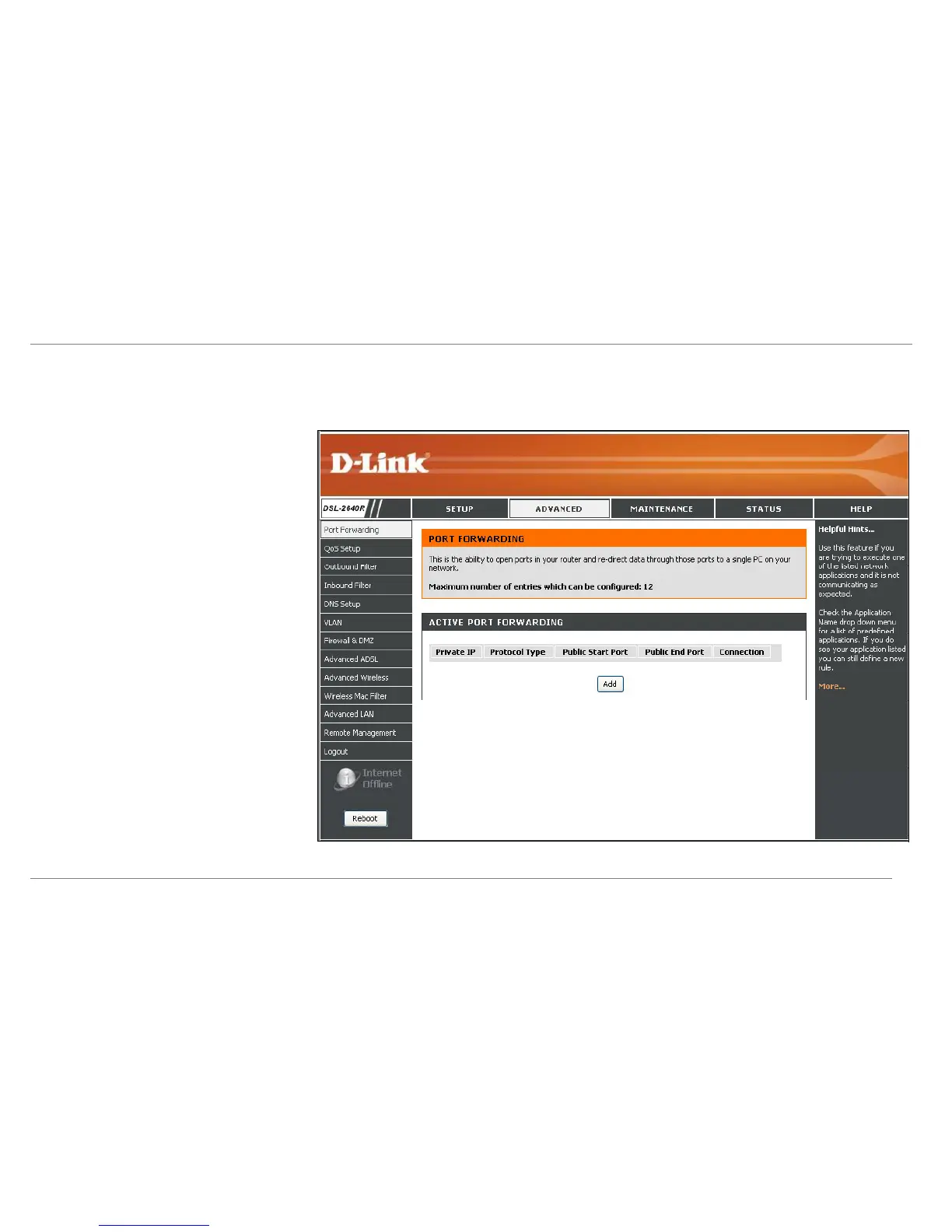

The Advanced directory tab offers the following configuration menus: Port Forwarding, QoS Setup, Outbound Filter, Inbound Filter, DNS Setup, VLAN, Firewall & DMZ,
Advanced ADSL, Advanced Wireless, Advanced LAN, and Remote Management. Click the corresponding link in the left panel of the window. Port Forwarding is the first
menu listed and the first to appear when accessing the Advanced directory.
D-Link DSL-2640R User Manual
34

D-Link DSL-2640R Specifications

Power

input voltage	100-120V
input current	0.4A
frequency	50-60 Hz
output voltage	12V
output current	1.2A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps

Wireless Transfer Rates

IEEE 802.11b	11, 5.5, 2, and 1 Mbps
IEEE 802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps

Media Interface

ADSL interface	RJ-11 connector for connection to 24/26 AWG twisted pair telephone line
LAN interface	four RJ-45 ports for 10/100BASE-T Ethernet connection
