Section 3 - Conguration
This section guides you through how to congure D-Link DSL-2740M for the rst time using
the web-based conguration utility’s Setup Wizard.
Setup Wizard

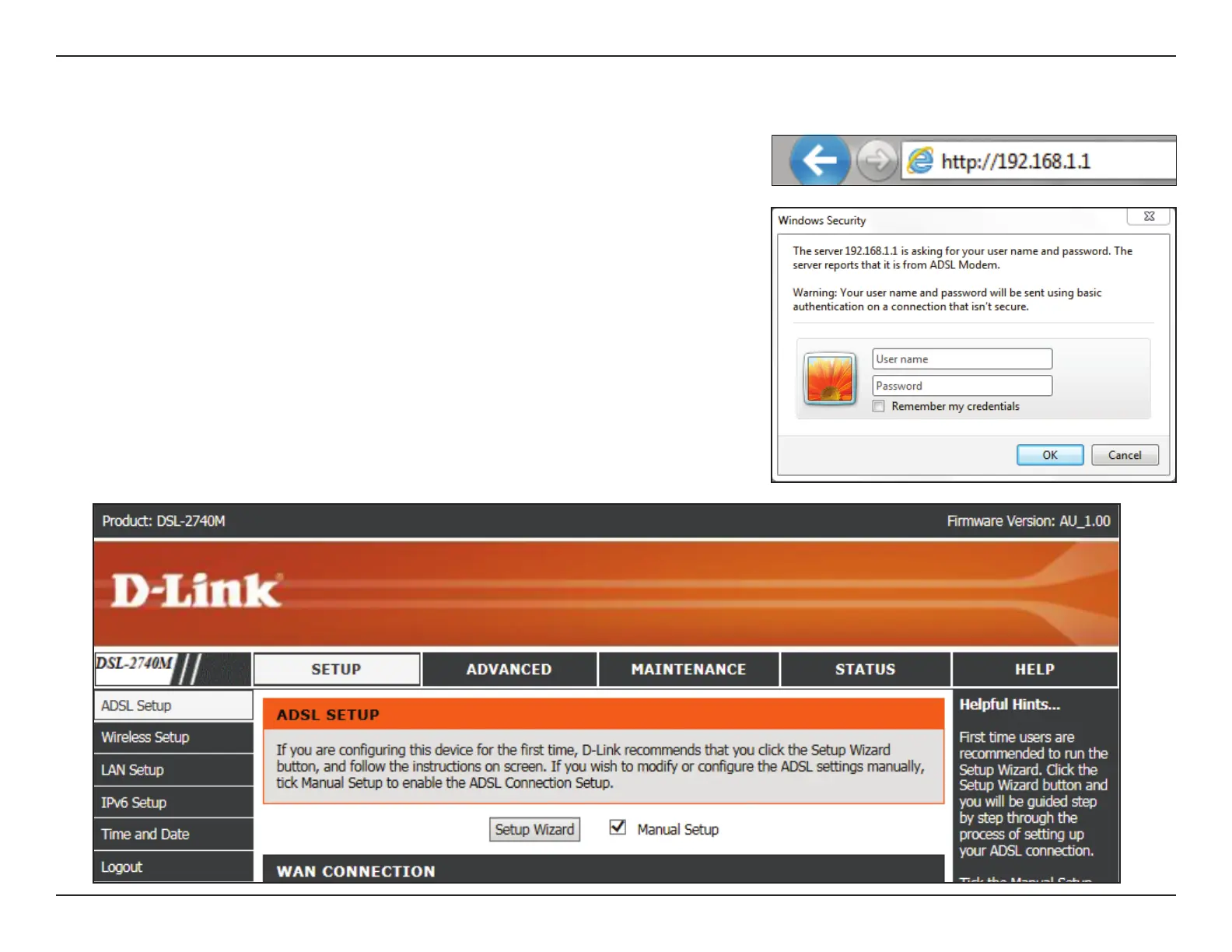

To access the conguration utility, open a web browser such as Internet Explorer and enter
http://192.168.1.1 in the address eld. Enter admin as the username and admin as the
password. Click Login.
You are taken to the Setup > ADSL Setup page. Click Setup Wizard to begin.
If you want to congure the DSL-2740M manually without running the wizard, refer to
Manual Conguration on page 21.

D-Link DSL-2740M Specifications

Ports & Interfaces

RJ-11 ADSL port	1
RJ-45 Ethernet ports	4
Wireless Interface	IEEE 802.11n/g/b

Wireless Specifications

Wireless Bandwidth Rate IEEE 802.11b	11, 5.5, 2, and 1 Mbps
Wireless Bandwidth Rate IEEE 802.11g	54, 48, 36, 24, 18, 12, 9, and 6 Mbps
Wireless Bandwidth Rate IEEE 802.11n 20 MHz	150, 130, 117, 104, 78, 52, 39, 26, 13 Mbps
Wireless Bandwidth Rate IEEE 802.11n 40 MHz	300, 270, 243, 216, 162, 108, 81, 54, 27 Mbps

Operating Environment

Operating Humidity	0% to 90% non-condensing
Non-Operating Humidity	5% to 95% non-condensing
Operating Temperature	0 to 40 °C (32 to 104 °F)
Non-Operating Temperature	-20 to 65 °C (-4 to 149 °F)

Power

Input Voltage	100~240 V AC (±20%), 50/60 Hz
Output Voltage	12 V DC
Output Current	0.5 A

Weight and Dimensions

Dimensions	160 x 120 x 25 mm (6.30 x 4.72 x 0.98 inches)
Weight	205 grams (7.2 ounces)
