Section 1 - Product Overview
Hardware Overview

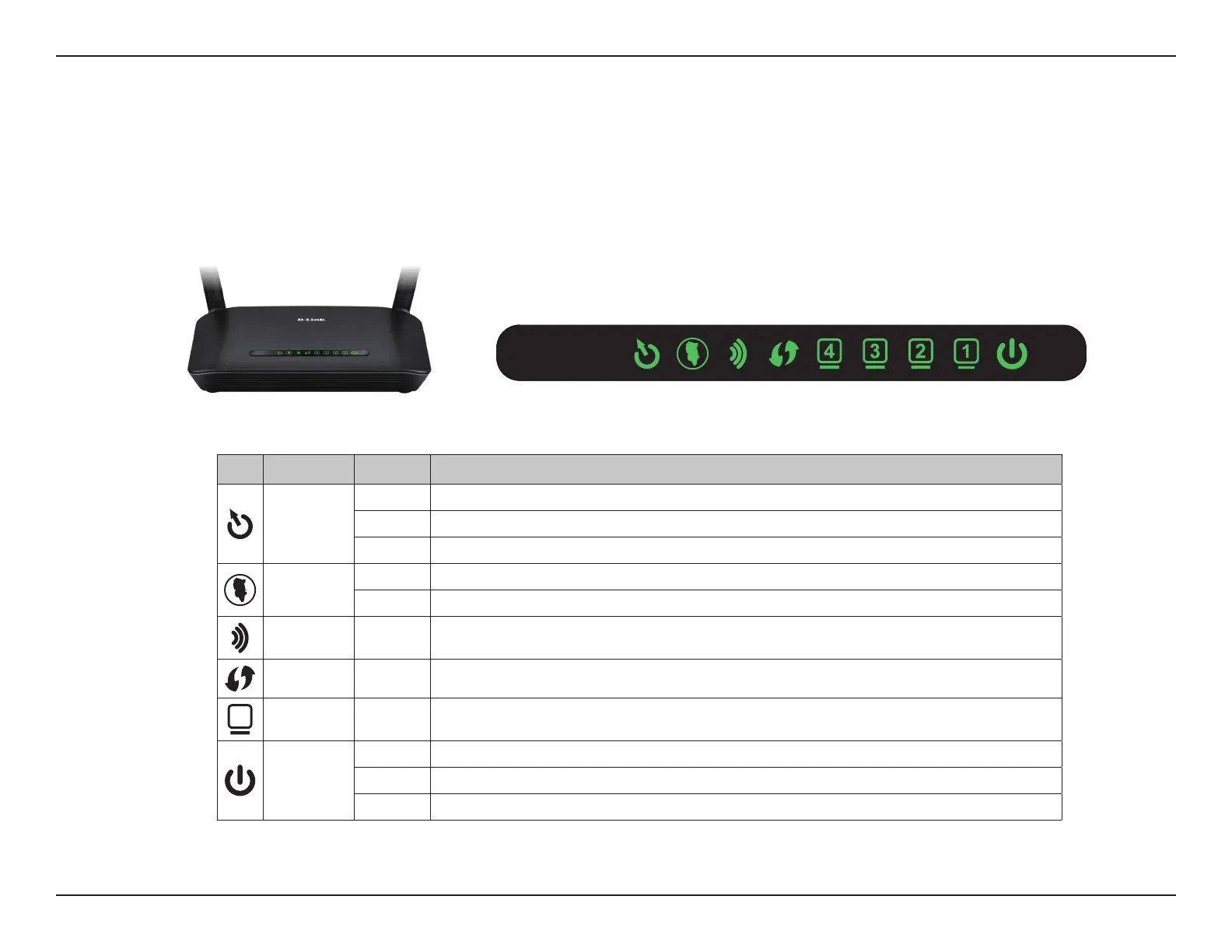

LED Panel
LED Color Description
DSL
Green The device is connected to a ADSL enabled telephone line.
Red The device has failed to establish a connection to the phone network.
O No connection detected.
Internet
Green The device is connected to a broadband service.
Red The device failed to connect to the Internet.
Wireless Green The 2.4 GHz Wi-Fi network is ready. The light blinks during data transmission.
WPS Green The light blinks during the WPS process.
LAN4-1 Green A device is connected on this port. The light blinks during data transmission.
Power
Green The device is powered on and functioning properly.
Red The device is booting, encountered an error, or is in recovery mode.
O The device is powered o or not receiving power.

D-Link DSL-2740M Specifications

Ports & Interfaces

RJ-11 ADSL port	1
RJ-45 Ethernet ports	4
Wireless Interface	IEEE 802.11n/g/b

Wireless Specifications

Wireless Bandwidth Rate IEEE 802.11b	11, 5.5, 2, and 1 Mbps
Wireless Bandwidth Rate IEEE 802.11g	54, 48, 36, 24, 18, 12, 9, and 6 Mbps
Wireless Bandwidth Rate IEEE 802.11n 20 MHz	150, 130, 117, 104, 78, 52, 39, 26, 13 Mbps
Wireless Bandwidth Rate IEEE 802.11n 40 MHz	300, 270, 243, 216, 162, 108, 81, 54, 27 Mbps

Operating Environment

Operating Humidity	0% to 90% non-condensing
Non-Operating Humidity	5% to 95% non-condensing
Operating Temperature	0 to 40 °C (32 to 104 °F)
Non-Operating Temperature	-20 to 65 °C (-4 to 149 °F)

Power

Input Voltage	100~240 V AC (±20%), 50/60 Hz
Output Voltage	12 V DC
Output Current	0.5 A

Weight and Dimensions

Dimensions	160 x 120 x 25 mm (6.30 x 4.72 x 0.98 inches)
Weight	205 grams (7.2 ounces)
