Section 3 - Conguration
Others
VPI: Virtual path identifier (VPI) is the virtual path between two
points in an Asynchronous Transfer Network (ATM) network.
Enter the correct VPI provided by your ISP. Values may be
between 0 and 255.
VCI: Virtual channel identifier (VCI) is the virtual channel between
two points in an ATM network. Its valid value is between 32 and
65535. Enter the correct VCI provided by your ISP.
Connection Type: Select the type of encapsulation your ISP uses, PPPoE LLC,
PPPoE VC-Mux, PPPoA LLC, or PPPoA VC-Mux.
Click Next to continue.

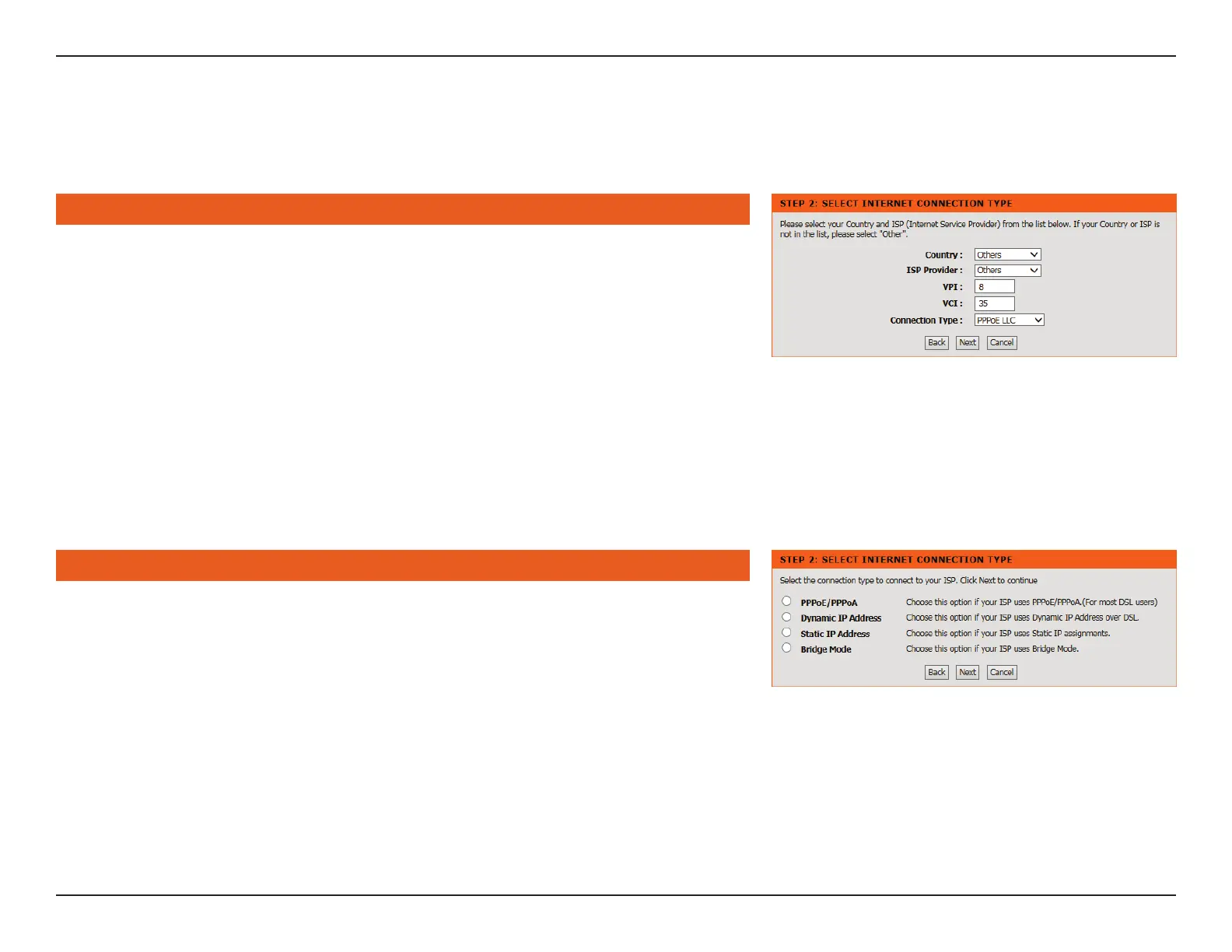

STEP 2: SELECT INTERNET CONNECTION TYPE
PPPoE/PPPoA: Select PPPoE/PPPoA if your ISP provided you with a username
and password.
Dynamic IP Address: Select DHCP if your ISP automatically assigns you an IP address.
Static IP Address: Select Static IP Address if your ISP provided you with one.
Bridge Mode: Select Bridge Mode if you intend to connect another device to
act as a Gateway/Router.
Click Next to continue.
STEP 2: SELECT INTERNET CONNECTION TYPE
Select your ISP’s connection type.
If you wish to manually set up your Internet connection (Others, Others), or have been
directed by your ISP to make adjustments, follow these steps.

D-Link DSL-2740M Specifications

Ports & Interfaces

RJ-11 ADSL port	1
RJ-45 Ethernet ports	4
Wireless Interface	IEEE 802.11n/g/b

Wireless Specifications

Wireless Bandwidth Rate IEEE 802.11b	11, 5.5, 2, and 1 Mbps
Wireless Bandwidth Rate IEEE 802.11g	54, 48, 36, 24, 18, 12, 9, and 6 Mbps
Wireless Bandwidth Rate IEEE 802.11n 20 MHz	150, 130, 117, 104, 78, 52, 39, 26, 13 Mbps
Wireless Bandwidth Rate IEEE 802.11n 40 MHz	300, 270, 243, 216, 162, 108, 81, 54, 27 Mbps

Operating Environment

Operating Humidity	0% to 90% non-condensing
Non-Operating Humidity	5% to 95% non-condensing
Operating Temperature	0 to 40 °C (32 to 104 °F)
Non-Operating Temperature	-20 to 65 °C (-4 to 149 °F)

Power

Input Voltage	100~240 V AC (±20%), 50/60 Hz
Output Voltage	12 V DC
Output Current	0.5 A

Weight and Dimensions

Dimensions	160 x 120 x 25 mm (6.30 x 4.72 x 0.98 inches)
Weight	205 grams (7.2 ounces)
