Section 4 - Connecting to a Wireless Network
Windows Vista®
Windows Vista® users may use the built-in wireless utility. If you are using another company’s wireless utility, please refer to the user manual of
your wireless adapter for help connecting to a wireless network. Most wireless utilities will have a “site survey” option similar to the Windows Vista®
utility as seen below.

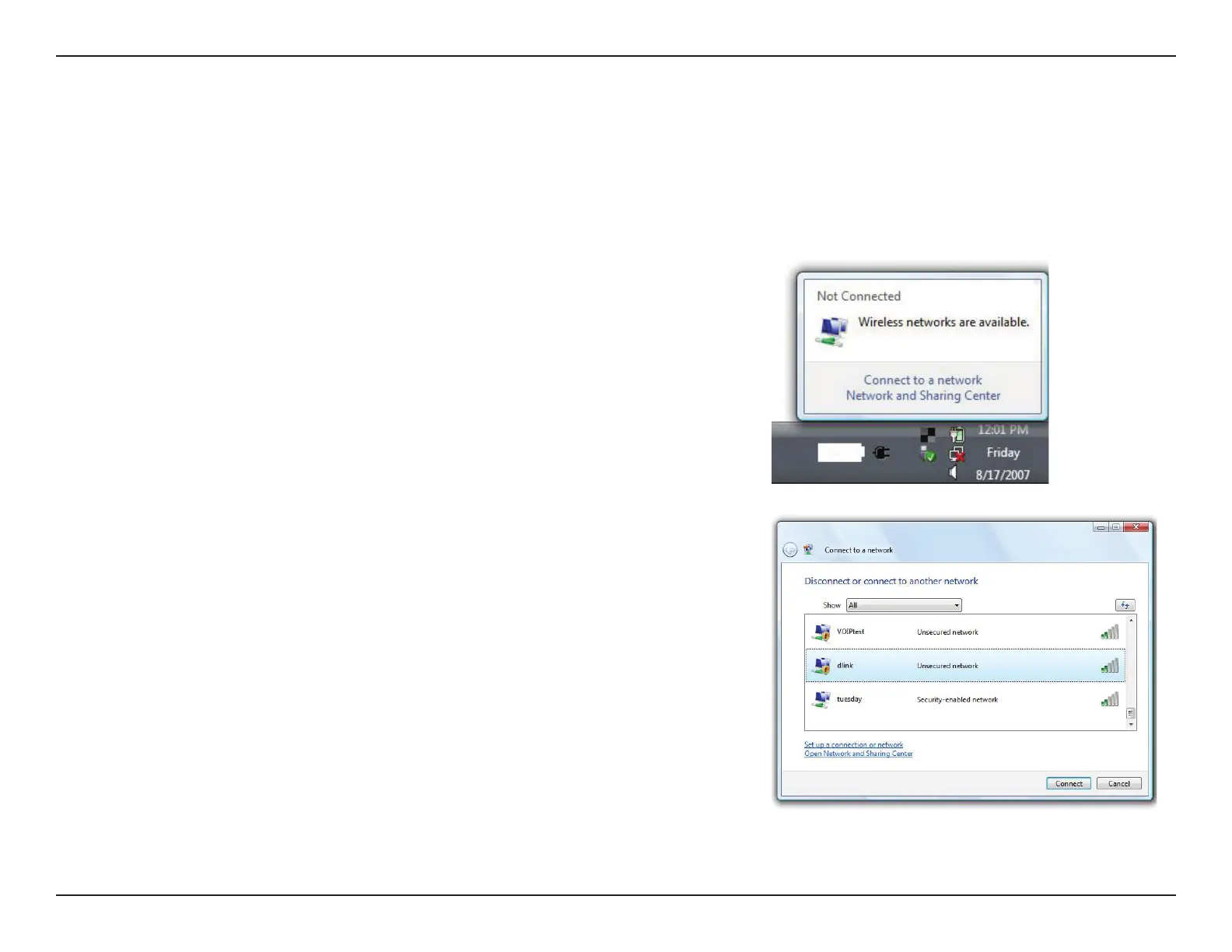

Right-click on the wireless computer icon in your system tray (lower-right corner next to
the time). Select Connect to a network.
If you receive the Wireless Networks Detected bubble, click on the center of the bubble
to access the utility.
or
The utility will display any available wireless networks in your area. Click on a network
(displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check your TCP/IP settings for your
wireless adapter. Refer to the Networking Basics section in this manual for more information.

D-Link DSL-2740M Specifications

Ports & Interfaces

RJ-11 ADSL port	1
RJ-45 Ethernet ports	4
Wireless Interface	IEEE 802.11n/g/b

Wireless Specifications

Wireless Bandwidth Rate IEEE 802.11b	11, 5.5, 2, and 1 Mbps
Wireless Bandwidth Rate IEEE 802.11g	54, 48, 36, 24, 18, 12, 9, and 6 Mbps
Wireless Bandwidth Rate IEEE 802.11n 20 MHz	150, 130, 117, 104, 78, 52, 39, 26, 13 Mbps
Wireless Bandwidth Rate IEEE 802.11n 40 MHz	300, 270, 243, 216, 162, 108, 81, 54, 27 Mbps

Operating Environment

Operating Humidity	0% to 90% non-condensing
Non-Operating Humidity	5% to 95% non-condensing
Operating Temperature	0 to 40 °C (32 to 104 °F)
Non-Operating Temperature	-20 to 65 °C (-4 to 149 °F)

Power

Input Voltage	100~240 V AC (±20%), 50/60 Hz
Output Voltage	12 V DC
Output Current	0.5 A

Weight and Dimensions

Dimensions	160 x 120 x 25 mm (6.30 x 4.72 x 0.98 inches)
Weight	205 grams (7.2 ounces)
