Section 4 - Connecting to a Wireless Network
Windows® 8
WPA/WPA2
It is recommended that you enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your wireless adapter.
If you are joining an existing network, you will need to know the security key (Wi-Fi password) being used.

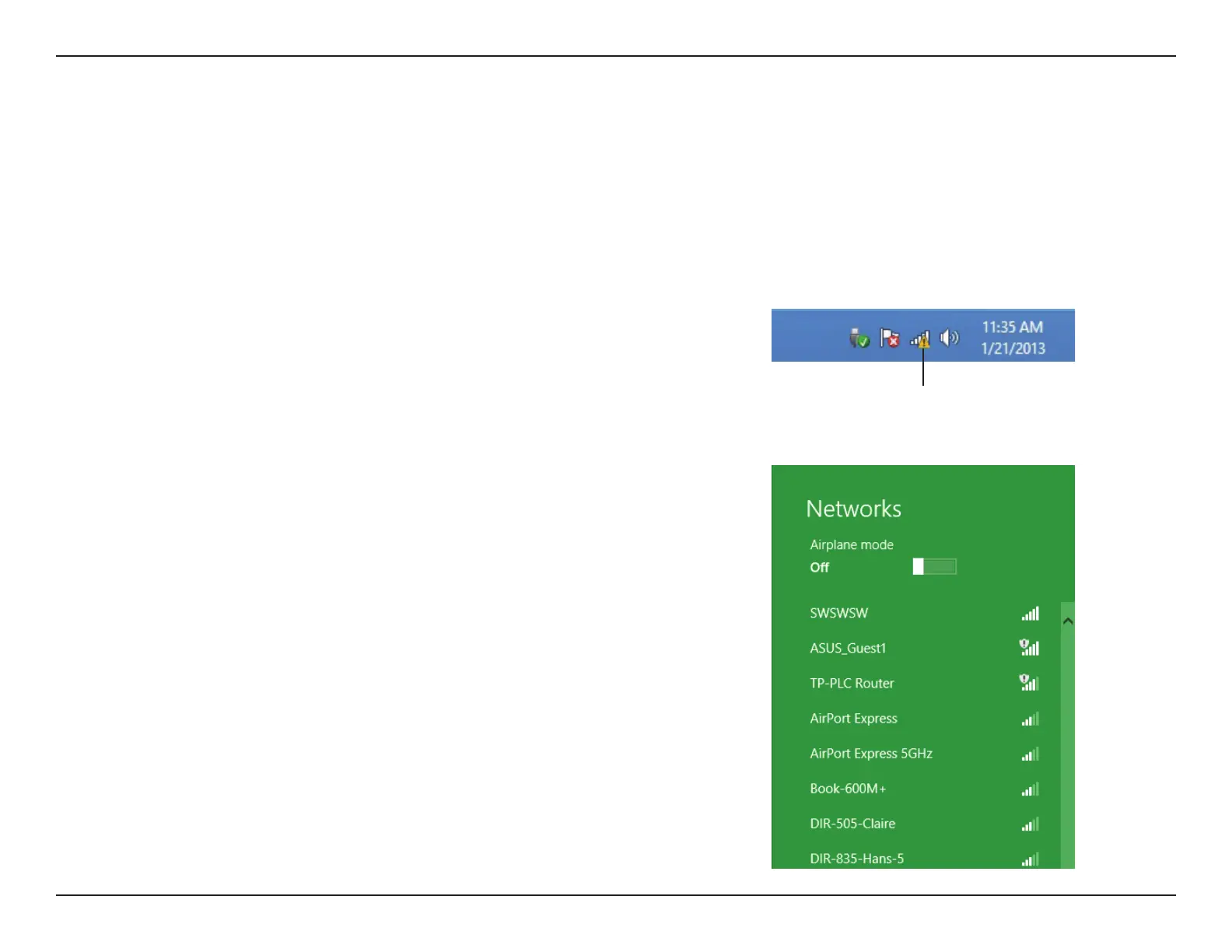

To join an existing network, locate the wireless network icon in the taskbar next to the time
display.
Wireless Icon
Clicking on this icon will display a list of wireless networks that are within connecting
proximity of your computer. Select the desired network by clicking on the network name.

D-Link DSL-2740M Specifications

Ports & Interfaces

RJ-11 ADSL port	1
RJ-45 Ethernet ports	4
Wireless Interface	IEEE 802.11n/g/b

Wireless Specifications

Wireless Bandwidth Rate IEEE 802.11b	11, 5.5, 2, and 1 Mbps
Wireless Bandwidth Rate IEEE 802.11g	54, 48, 36, 24, 18, 12, 9, and 6 Mbps
Wireless Bandwidth Rate IEEE 802.11n 20 MHz	150, 130, 117, 104, 78, 52, 39, 26, 13 Mbps
Wireless Bandwidth Rate IEEE 802.11n 40 MHz	300, 270, 243, 216, 162, 108, 81, 54, 27 Mbps

Operating Environment

Operating Humidity	0% to 90% non-condensing
Non-Operating Humidity	5% to 95% non-condensing
Operating Temperature	0 to 40 °C (32 to 104 °F)
Non-Operating Temperature	-20 to 65 °C (-4 to 149 °F)

Power

Input Voltage	100~240 V AC (±20%), 50/60 Hz
Output Voltage	12 V DC
Output Current	0.5 A

Weight and Dimensions

Dimensions	160 x 120 x 25 mm (6.30 x 4.72 x 0.98 inches)
Weight	205 grams (7.2 ounces)
