13D-Link ShareCenter DNS-327L User Manual
Section 1 - Product Overview

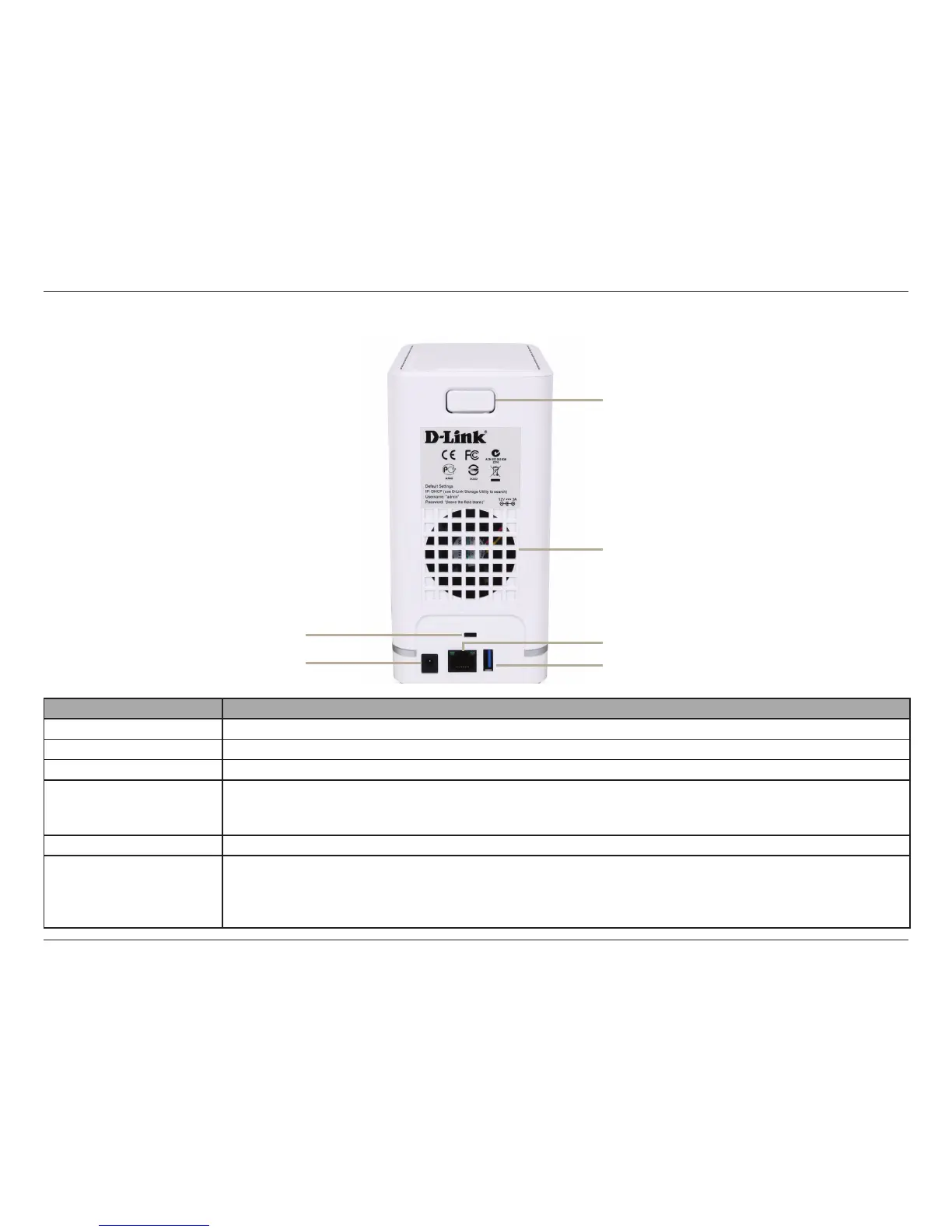

Rear Panel
Latch for Top Panel
Cooling Fan/Outlet
Power Receptor
Gigabit Ethernet Port
USB Port
Security Lock
COMPONENT DESCRIPTION
Security Lock A security device can be attached to the unit to prevent theft.
Power Receptor Connect the supplied power cord to the receptor.
Latch Press the latch to release the top panel for inserting or removing the hard drives
Cooling Fan/Outlet
The cooling fan cools the hard drives and features speed control. When the unit is rst powered on, the fans
rotate at a low speed and later rotate at a high speed when the temperature inside the unit rises above 49 °C. Do
not cover or obstruct this outlet.
USB Port A single USB 3.0 (type A) connector. The USB Host port is for Printers, USB storage, or USB UPS monitoring.
Gigabit Ethernet Port
Use the Gigabit Ethernet port to connect the ShareCenter to your local network. The port is equipped with 2 LEDs.
The LED on the left will illuminate solid green for a good connection and will blink during data transmission. If this
LED is o, check the connection/cable to the device you are connecting to. The LED on the right will light solid for a
Gigabit connection and will remain o when connected to a 10/100 Mbps device.
