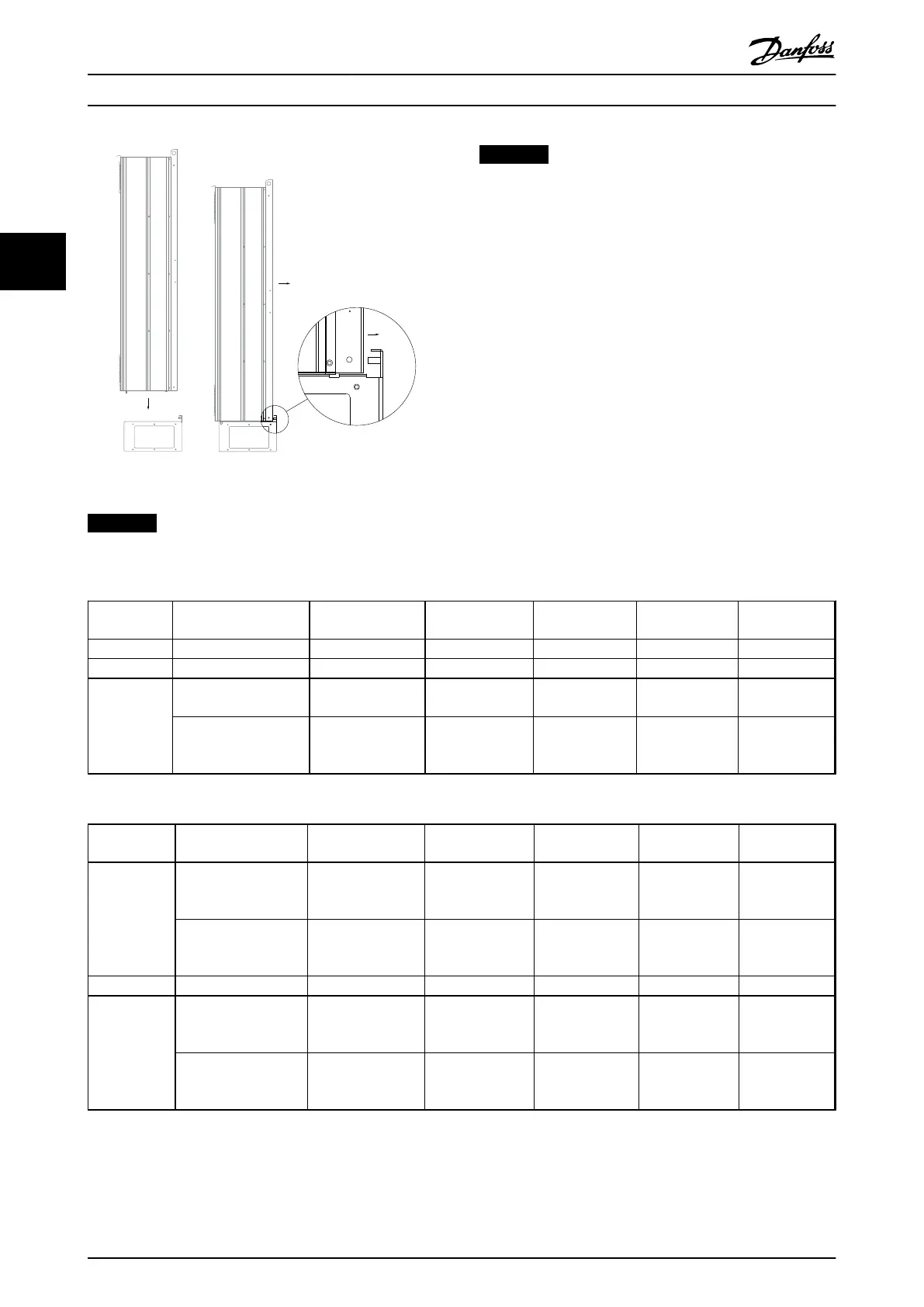

Illustration 3.52 Mounting of Frequency Converter to Pedestal
NOTICE
See the Pedestal Kit Instruction Manual, for further
information.
3.4.4 Installation of Input Plate Options
This section is for the field installation of input option kits
available for frequency converters in all enclosure types D
and E.
Do not attempt to remove RFI filters from input plates.
Damage may occur to RFI filters if they are removed from
the input plate.
NOTICE
Where RFI filters are available, there are 2 different type of RFI filters depending on the input plate combination and
the RFI filters interchangeable. Field installable kits in certain cases are the same for all voltages.
380-480 V
380-500 V
Fuses Disconnect Fuses RFI RFI Fuses RFI Disconnect
Fuses
D1 All D1 power sizes 176F8442 176F8450 176F8444 176F8448 176F8446
D2 All D2 power sizes 176F8443 176F8441 176F8445 176F8449 176F8447
E1 FC 102/ FC 202: 315 kW
FC 302: 250 kW
176F0253 176F0255 176F0257 176F0258 176F0260
FC 102/ FC 202: 355 -
450 kW
FC 302: 315 - 400 kW
176F0254 176F0256 176F0257 176F0259 176F0262
Table 3.13 Fuses
525 - 690 V Fuses Disconnect Fuses RFI RFI Fuses RFI Disconnect
Fuses
D1 FC 102/ FC 202: 45-90
kW
FC 302: 37-75 kW
175L8829 175L8828 175L8777 NA NA
FC 102/ FC 202:
110-160 kW
FC 302: 90-132 kW
175L8442 175L8445 175L8777 NA NA
D2 All D2power sizes 175L8827 175L8826 175L8825 NA NA
E1 FC 102/ FC 202:
450-500 kW
FC 302: 355-400 kW
176F0253 176F0255 NA NA NA
FC 102/ FC 202:
560-630 kW
FC 302: 500-560 kW
176F0254 176F0258 NA NA NA
Table 3.14
How to Install VLT AQUA Drive FC 202 Operation Instructions
40 MG20P402 - Rev. 2013-12-16
