Danfoss VLT AQUA FC 202 User Manual

Operation keys
Keys for local control are found at the bottom of the
control panel.
130BP046.10
Hand
on
O
Auto
on
Reset

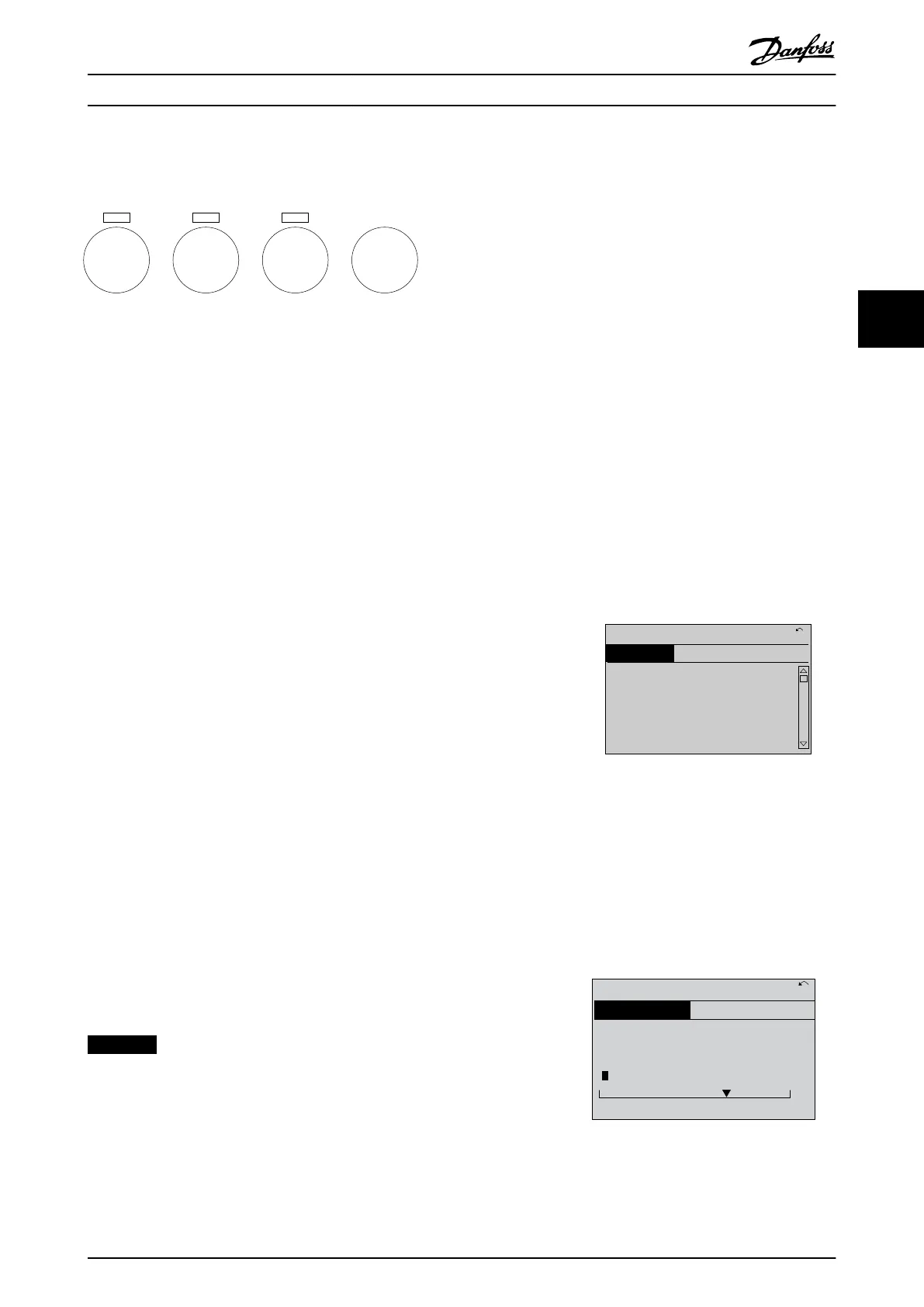

Illustration 4.17 Operation keys of the numerical LCP (NLCP)
[Hand on]
enables control of the frequency converter via the LCP.
[Hand on] also starts the motor and it is now possible to
enter the motor speed data by means of the navigation
keys. The key can be [1] Enabled or[0] Disabled via
0-40 [Hand on] Key on LCP.
External stop signals activated by means of control signals
or a serial bus will override a 'start' command via the LCP.
The following control signals are still active when [Hand
on] is activated:
•
[Hand on] - [Off] - [Auto on]
•
Reset
•
Coasting stop inverse
•
Reversing
•
Set-up select lsb - Set-up select msb
•
Stop command from serial communication
•
Quick stop
•
DC brake
[Off]
stops the connected motor. The key can be [1] Enabled or
[0] Disabled via 0-41 [Off] Key on LCP.
If no external stop function is selected and the [Off] key is
inactive the motor can be stopped by disconnecting the
mains supply.
[Auto on]
enables the frequency converter to be controlled via the
control terminals and/or serial communication. When a
start signal is applied on the control terminals and/or the
bus, the frequency converter starts. The key can be [1]
Enabled or [0] Disabled via 0-42 [Auto on] Key on LCP.
NOTICE
An active HAND-OFF-AUTO signal via the digital inputs
has higher priority than the control keys [Hand on] [Auto
on].
[Reset]
is used for resetting the frequency converter after an alarm
(trip). The key can be [1] Enabled or[0] Disabled via
0-43 [Reset] Key on LCP.
4.1.3
Changing Data
1. Press [Quick Menu] or [Main Menu] key.
2.
Press [
▲
] and [
▼
] to find parameter group to edit.
3. Press [OK] key.
4.
Press [
▲
] and [
▼
] to find parameter to edit.
5. Press [OK] key.
6.
Press [
▲
] and [
▼
] to select correct parameter
setting. Or, to move to digits within a number,
press keys. Cursor indicates digit selected to
change. [
▲
] increases the value, [
▼
] decreases the
value.
7. Press [Cancel] to disregard change, or press [OK]
to accept change and enter new setting.
4.1.4
Changing a Text Value
If the selected parameter is a text value, change the text
value with the [
▲
]/[
▼
] keys.
[
▲
] increases the value, and [
▼
] decreases the value. Place
the cursor on the value to be saved and press [OK].
130BP068.10
740RPM
0 -01 Language
[0] English
10.64 A 1 [1]
0-0
*
Basic Settings
Illustration 4.18 Display Example
4.1.5 Changing a Group of Numeric Data
Values
If the selected parameter represents a numeric data value,
change the selected data value with the [◄] and [►] keys
as well as the up/down [
▲
] [
▼
] keys. press [◄] and [►] to
move the cursor horizontally.
130BP069.10
1- 6*
113 RPM 1.78 A 1(1)
Load depen. setting
1 - 60 Low speed load
compensation
100%
Illustration 4.19 Display Example
How to operate the frequenc... VLT AQUA Drive FC 202 Operation Instructions
MG20P402 - Rev. 2013-12-16 75
4 4
