IEC Emergency Stop with Pilz Safety Relay
Includes a redundant 4-wire emergency-stop push-button
mounted on the front of the enclosure and a Pilz relay that
monitors it in conjunction with the frequency converter’s
safe-stop circuit and the mains contactor located in the
options cabinet.
Safe Stop + Pilz Relay
Provides a solution for the "Emergency Stop" option
without the contactor in F-Enclosure frequency converters.
Manual Motor Starters
Provides 3-phase power for electric blowers often required
for larger motors. Power for the starters is provided from
the load side of any supplied contactor, circuit breaker, or
disconnect switch. Power is fused before each motor
starter, and is off when the incoming power to the
frequency converter is off. Up to 2 starters are allowed
(one if a 30 A, fuse-protected circuit is ordered). Integrated
into the frequency converter’s safe-stop circuit.
Unit features include:
•
Operation switch (on/off)
•
Short-circuit and overload protection with test
function
•
Manual reset function
30 A, Fuse-Protected Terminals
•
3-phase power matching incoming mains voltage
for powering auxiliary customer equipment
•
Not available if 2 manual motor starters are
selected
•
Terminals are off when the incoming power to
the frequency converter is off
•
Power for the fused protected terminals will be
provided from the load side of any supplied
contactor, circuit breaker, or disconnect switch.
24 V DC Power Supply
•
5 A, 120 W, 24 V DC
•
Protected against output over-current, overload,
short circuits, and over-temperature
•
For powering customer-supplied accessory
devices such as sensors, PLC I/O, contactors,
temperature probes, indicator lights, and/or other
electronic hardware
•
Diagnostics include a dry DC-ok contact, a green
DC-ok LED, and a red overload LED
External Temperature Monitoring
Designed for monitoring temperatures of external system
components, such as the motor windings and/or bearings.
Includes five universal input modules. The modules are
integrated into the frequency converter’s safe-stop circuit
and can be monitored via a fieldbus network (requires the
purchase of a separate module/bus coupler).
Universal inputs (5)
Signal types:
•
RTD inputs (including PT100), 3-wire or 4-wire
•
Thermocouple
•
Analog current or analog voltage
Additional features:
•
One universal output, configurable for analog
voltage or analog current
•
Two output relays (N.O.)
•
Dual-line LC display and LED diagnostics
•
Sensor lead wire break, short-circuit, and incorrect
polarity detection
•
Interface setup software
3.6 Electrical Installation
3.6.1 Power Connections
Cabling and Fusing
NOTICE
Cables General
All cabling must comply with national and local
regulations on cable cross-sections and ambient
temperature. UL applications require 75 °C copper
conductors. 75 and 90 °C copper conductors are
thermally acceptable for the frequency converter to use
in non UL applications.
The power cable connections are situated as shown below.
Dimensioning of cable cross section must be done in
accordance with the current ratings and local legislation.
See the Specifications section for details.
For protection of the frequency converter, the
recommended fuses must be used or the unit must be
with built-in fuses. Recommended fuses can be seen in the
tables of the fuse section. Always ensure that proper fusing
is made according to local regulation.
The mains connection is fitted to the mains switch if this is
included.
3 Phase
power
input
130BA026.10
91 (L1)
92 (L2)
93 (L3)
95 PE

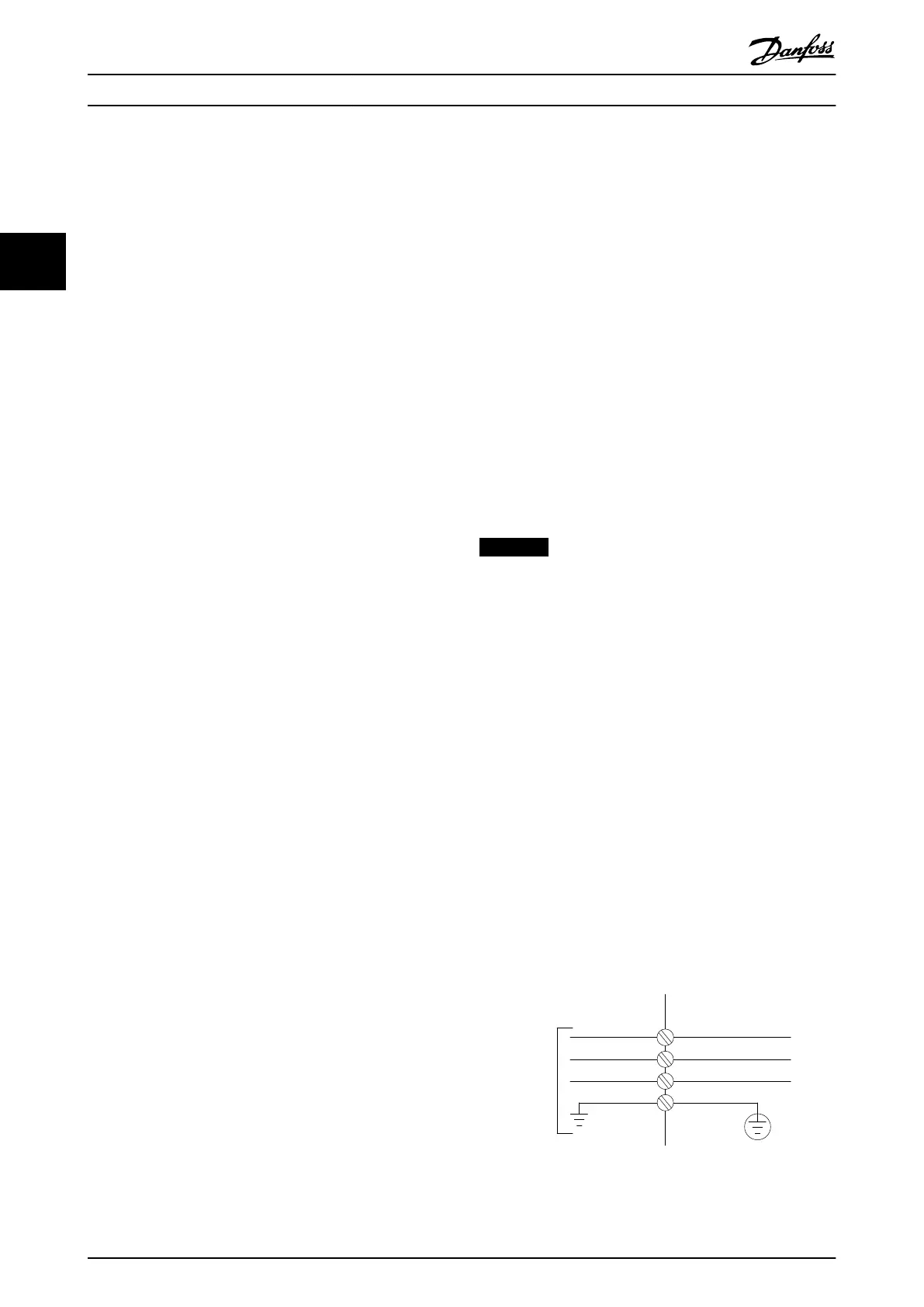

Illustration 3.53 Power Cable Connections
How to Install VLT AQUA Drive FC 202 Operation Instructions
42 MG20P402 - Rev. 2013-12-16
33
