6 Application Examples

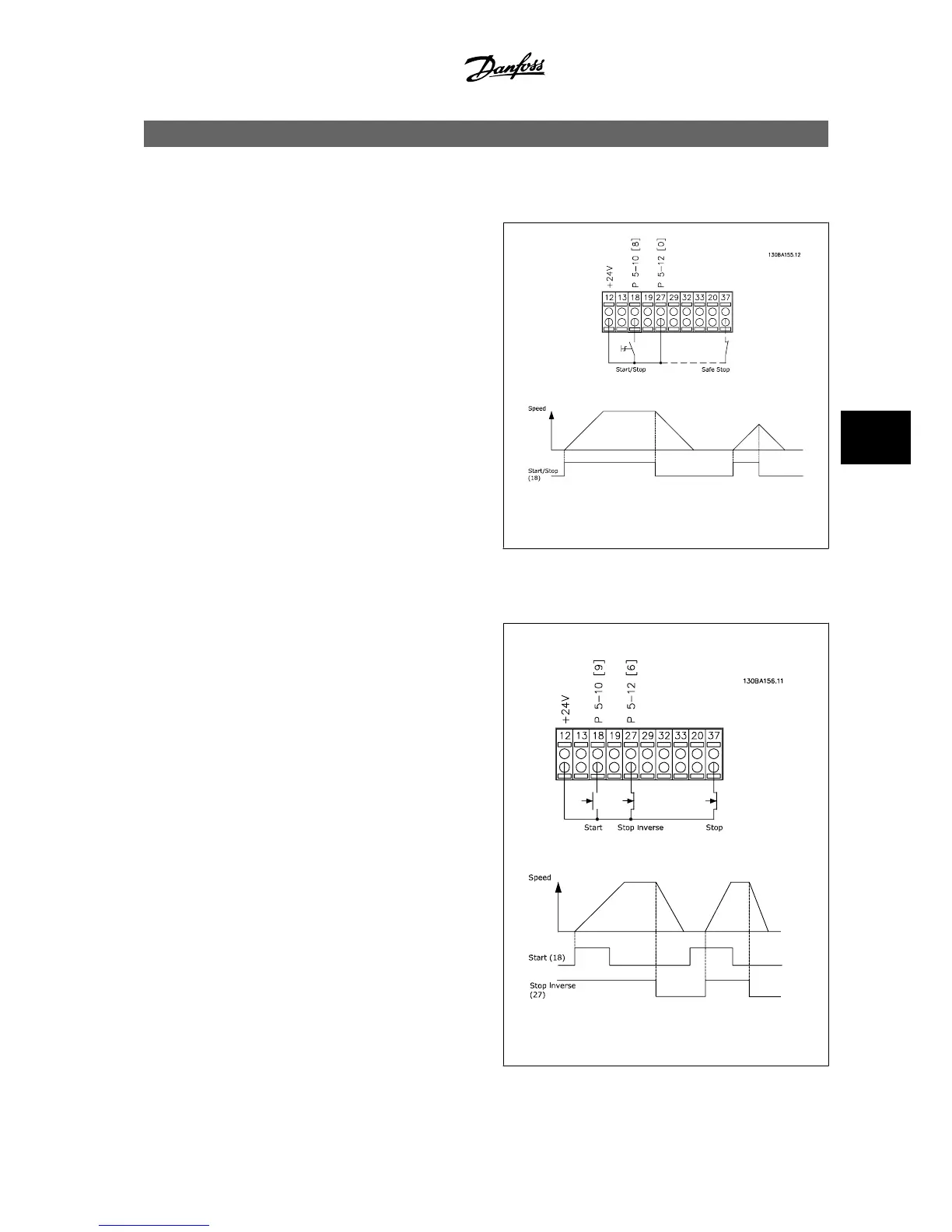

6.1.1 Start/Stop
Terminal 18 = start/stop par. 5-10 [8] Start
Terminal 27 = No operation par. 5-12 [0] No operation (Default coast
inverse
Par. 5-10 Digital Input, Terminal 18 = Start (default)
Par. 5-12
Digital Input, Terminal 27 = coast inverse (default)
Figure 6.1: Terminal 37: Available only with Safe Stop Func-
tion!
6.1.2 Pulse Start/Stop
Terminal 18 = start/stop par. 5-10 [9] Latched start
Terminal 27= Stop par. 5-12 [6] Stop inverse
Par. 5-10 Digital Input, Terminal 18 = Latched start
Par. 5-12 Digital Input, Terminal 27 = Stop inverse
Figure 6.2: Terminal 37: Available only with Safe Stop Func-
tion!
VLT
®
AQUA Drive Design Guide 6 Application Examples
MG.20.N5.22 - VLT
®
is a registered Danfoss trademark 6-1
