DataCard SD460 User Manual

XPS Card Printer Driver User’s Guide 97

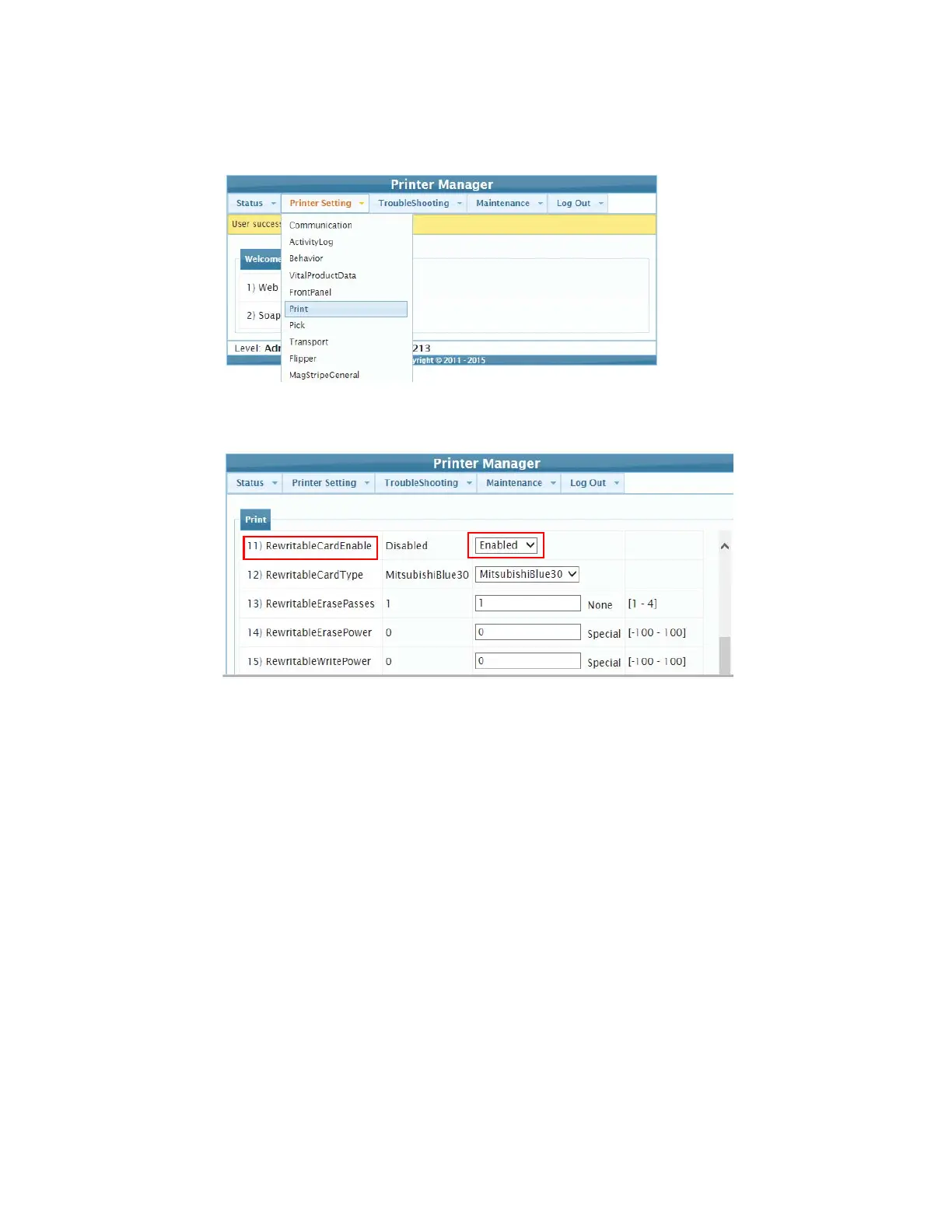

7. Select Print from the Printer Setting menu.
8. On the Print page, change the RewritableCardEnable setting to Enabled.
Change the other Rewritable settings, as needed. Refer to the Printer Manager Print settings
section in your printer’s Installation and Administrator’s Guide for more information about
the Rewritable card settings.
9. Scroll to the bottom of the page and click Set Current.
10. Log out of Printer Manager and close the browser window.
Set Up the Card Printer Driver
To set up the Card Printer Driver to print rewritable cards, do the following:
1. Open the Windows Devices and Printers window.
2. Right-click the XPS Card Printer icon and select Printing preferences.
3. Select the Print Mode tab.

DataCard SD460 Specifications

General

Color	Yes
Card size	85.6 x 53.98 mm
Card types	Magnetic stripe (ISO 7811), PVC, Smart card
Print technology	Dye-sublimation/Resin Thermal transfer
Duplex print speed (color)	200 card/h
Display	LCD
Certification	cULus, FCC, I.C., CE, Ctick, VCCI, RoHS, WEEE, CCC, KCC
Product color	Black, Blue
Internal memory	128 MB
Built-in barcodes	1D, 2D
Total input capacity	100 sheets
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Wi-Fi	No
USB version	2.0
Ethernet interface type	Fast Ethernet
Storage temperature (T-T)	-15 - 60 °C
Operating temperature (T-T)	15 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Weight	13600 g
Dimensions (WxDxH)	589 x 270 x 513 mm
