DataCard SD460 User Manual

XPS Card Printer Driver User’s Guide 101
 Printers can print UV elements on both the front and the back of the card. A two-sided card
design with UV on both the front and back uses two panel sets of the ribbon.
 If the card design contains the UV color, but UV ribbon is not detected in the printer, UV
elements are treated as normal color elements.
 Do not print an entire card using the UV panel.
Print UV Design Elements
The following will print with the UV panel:
 Text set to the UV color.
 Vector graphics set to the UV color. Vector graphics have components such as lines and fills
that the driver processes into a shape.
 Raster images (or bitmaps), such as photographs, with the pixel color set to the UV color or
white.
 You cannot print color photographs with the UV panel directly. To print an image using
the UV panel, the application must create a two-color image with white as one color and
the UV color as the other color.
 UV raster images always print over other card elements even if they are placed behind
the element in the card design.

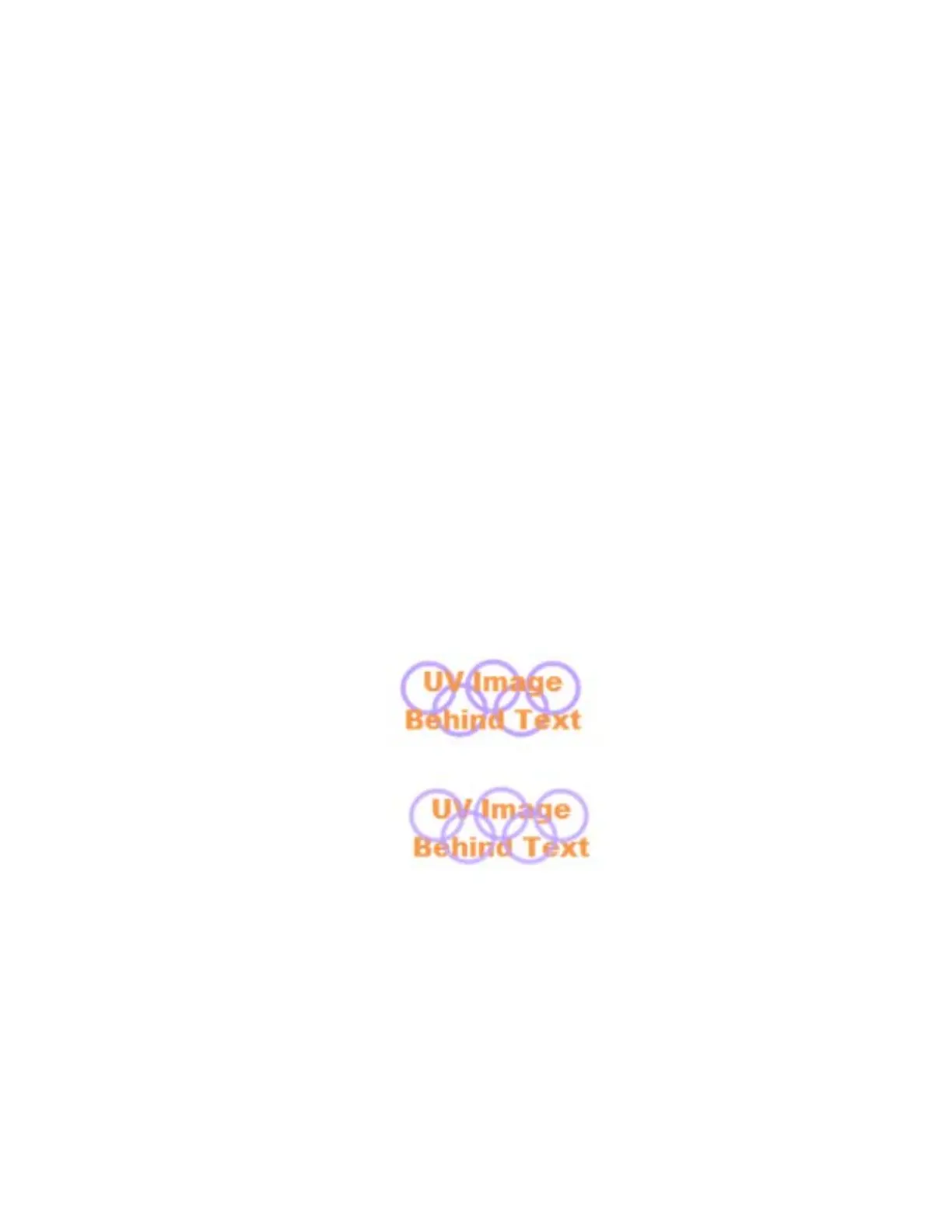

Card Design:
UV raster image
placed behind text
Printed Card:
UV raster image
prints over text

DataCard SD460 Specifications

General

Color	Yes
Card size	85.6 x 53.98 mm
Card types	Magnetic stripe (ISO 7811), PVC, Smart card
Print technology	Dye-sublimation/Resin Thermal transfer
Duplex print speed (color)	200 card/h
Display	LCD
Certification	cULus, FCC, I.C., CE, Ctick, VCCI, RoHS, WEEE, CCC, KCC
Product color	Black, Blue
Internal memory	128 MB
Built-in barcodes	1D, 2D
Total input capacity	100 sheets
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Wi-Fi	No
USB version	2.0
Ethernet interface type	Fast Ethernet
Storage temperature (T-T)	-15 - 60 °C
Operating temperature (T-T)	15 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Weight	13600 g
Dimensions (WxDxH)	589 x 270 x 513 mm
