Datalogic Magellan 2200VS Product Reference Guide

Programming
5-80 Magellan
TM
2200VS and 2300HS
RS-232 ACK Character
This feature specifies which ASCII character will be used as an ACK char-
acter.
To specify the RS-232 ACK Character:
1. Scan the SWITCH bar code.
2. Scan the bar code,
SET RS-232 ACK Character below. You’ll need to
cover any unused bar codes on this and the facing page to ensure the
scanner reads only the bar code you intend to scan.
3. Scan the appropriate digits from the keypad in
Appendix C that rep-
resent the hex designation for the desired character. A table contain-
ing the
ASCII Character Set and their corresponding Hex Values is
available in the inside back cover of this manual. ASCII parameters
must be input by scanning a pair of hexadecimal digits for the
desired character. For example, if ASCII “A” were the desired ACK
character, you would scan the digits “4”, then “1” (the ASCII corre-
sponding hex value).
4. The scanner will automatically exit Programming Mode when the
appropriate amount of digits/characters have been scanned.

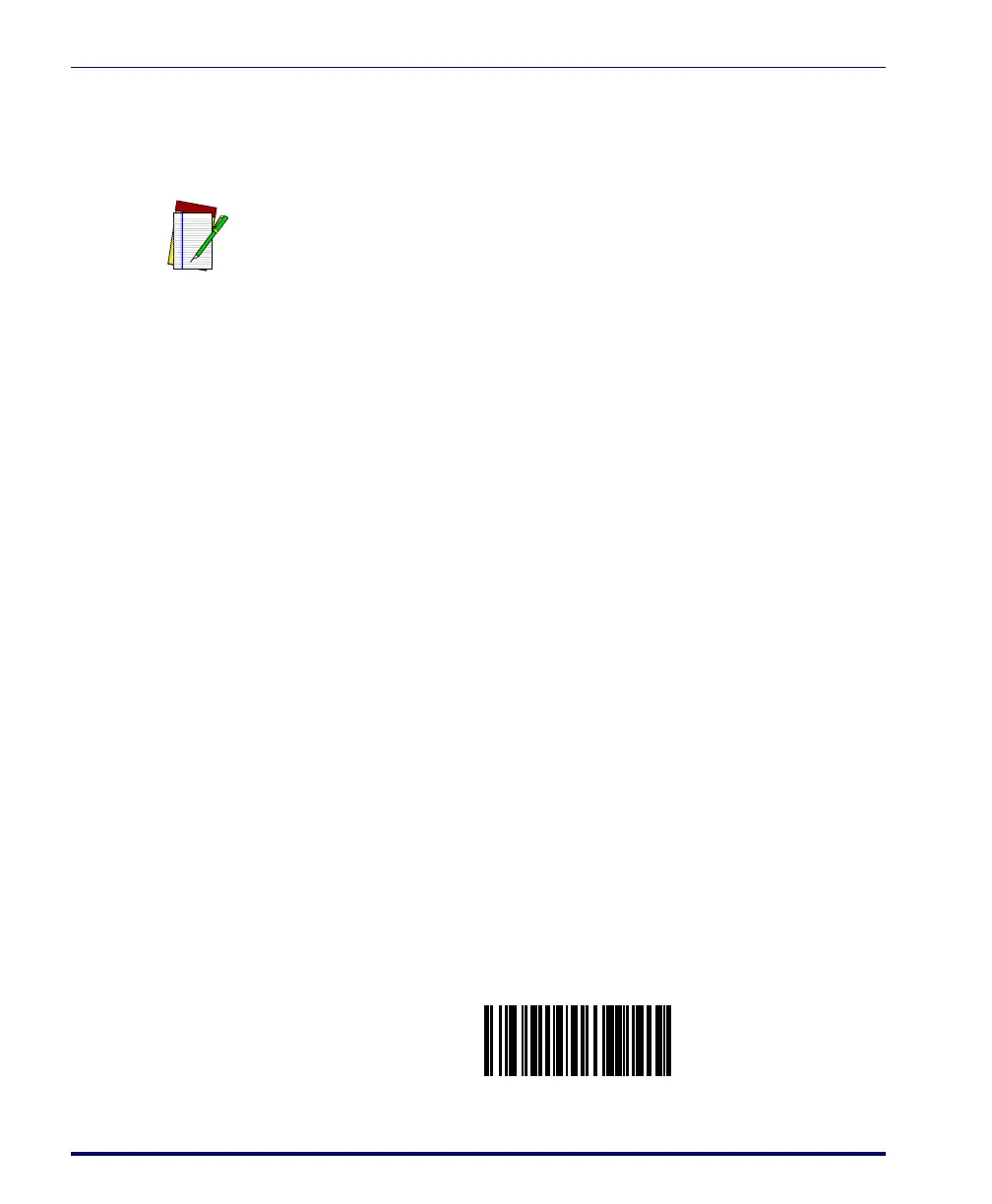

SET RS-232 ACK Character
NOTE
DO NOT set this feature to use previously defined characters
such as XON, XOFF or host commands as this will conflict with
normal operation of these characters. 8-bit data is not recog-
nized when the feature, RS-232 Number of Data Bits, is set to
7 data bits.

Datalogic Magellan 2200VS Specifications

General

Decoding standards	-1D + GS1 DataBar, -GS1 DataBar Expanded Stacked, -GS1 DataBar Stacked, -GS1 DataBar Stacked Omnidirectional.
Standard interfaces	USB, RS-232
Dimensions (WxDxH)	152 x 152 x 97 mm
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	1100 g
