Datalogic Magellan 2200VS Product Reference Guide

Scanning Items: Model 2300HS
Product Reference Guide 3-3
Scanning Items: Model 2300HS
The scanner is mounted so its scan window is flush with the countertop.
This allows for maximum working space, and also permits the user to slide
items over its surface without having to grasp or pick them up. Bar codes
are effortlessly scanned when swept through the zone projected from the
substantial scan window as shown in
Figure 3-1a.

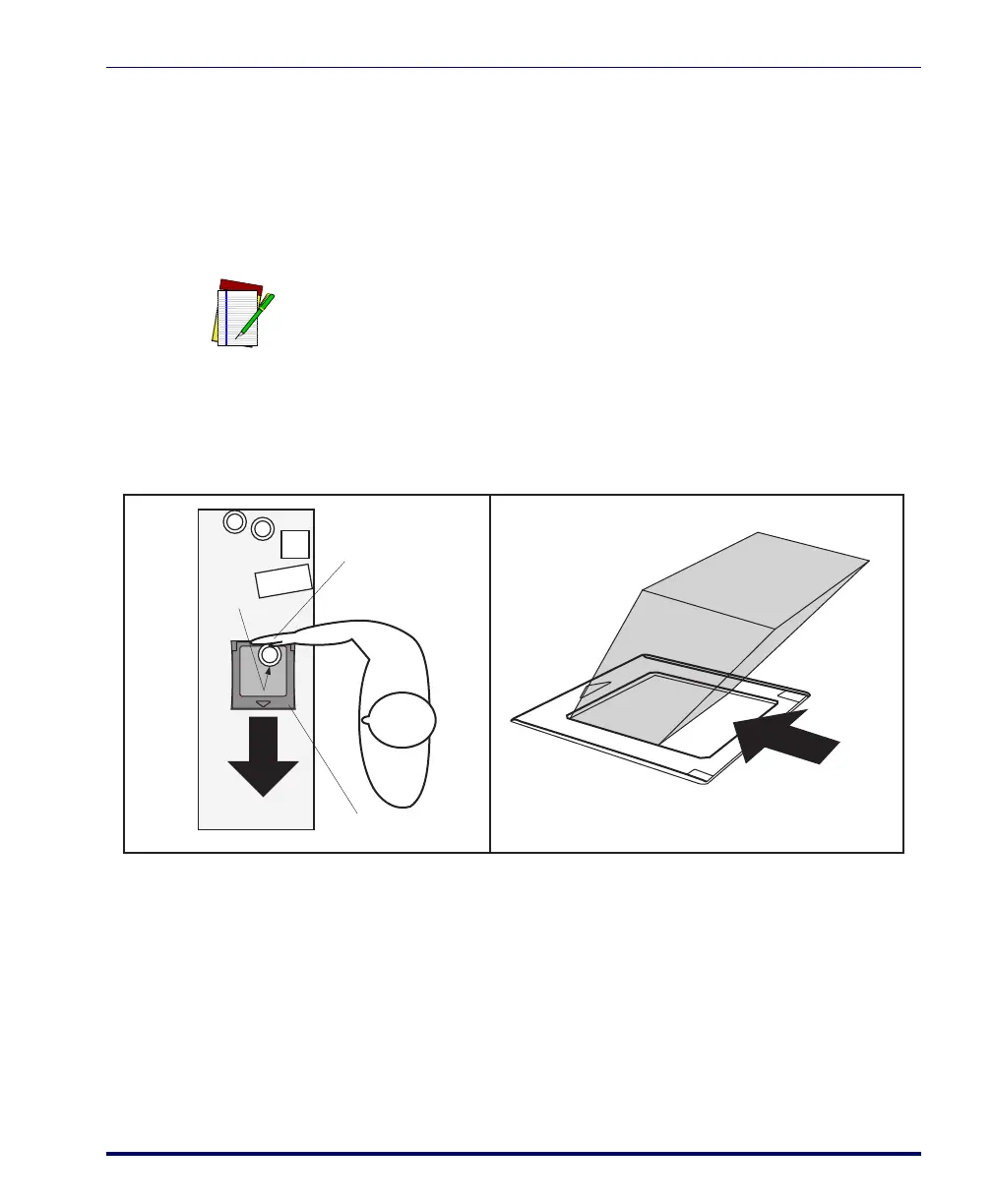

Figure 3-2. Operating the Scanner
NOTE
Facing bar code labels in the direction of scanning, or toward the scan
window will optimize the scan rate. The arrow on the scanner’s top
cover indicates the direction scanned items should be moved (see
Figure 3-1b).
Scanner
Item
Bar
Code
Items are
pushed or
slid past
scanner
Product
Flow
Scan Volume

Datalogic Magellan 2200VS Specifications

General

Decoding standards	-1D + GS1 DataBar, -GS1 DataBar Expanded Stacked, -GS1 DataBar Stacked, -GS1 DataBar Stacked Omnidirectional.
Standard interfaces	USB, RS-232
Dimensions (WxDxH)	152 x 152 x 97 mm
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	1100 g
